Rupert Neve Designs 5034 Newton Channel

Rupert Neve Designs Newton Channel
Mic Pre + EQ + Compressor with Silk


A powerful modern channel strip with an instantly recognizable sound.



The Newton Channel is a powerful modern channel strip born from a legendary sonic lineage. Its intuitive design provides classic sound on demand, with all the instantly-recognizable character, musical toneshaping abilities, and proven reliability that define a Rupert Neve Designs product. The Newton is equally well-suited for a project studio, large-scale commercial facility or live sound rig – giving more engineers, producers, and artists a chance to join the RND family than ever before.

The name originates with Rupert’s birthplace – Newton Abbot, England – and reflects the sonic journeys of his life: from Newton Abbot to Wimberley, vintage to modern, and everything in between. This is a truly versatile, world-class channel strip capable of bringing any source to life with the classic sound of Rupert Neve Designs.

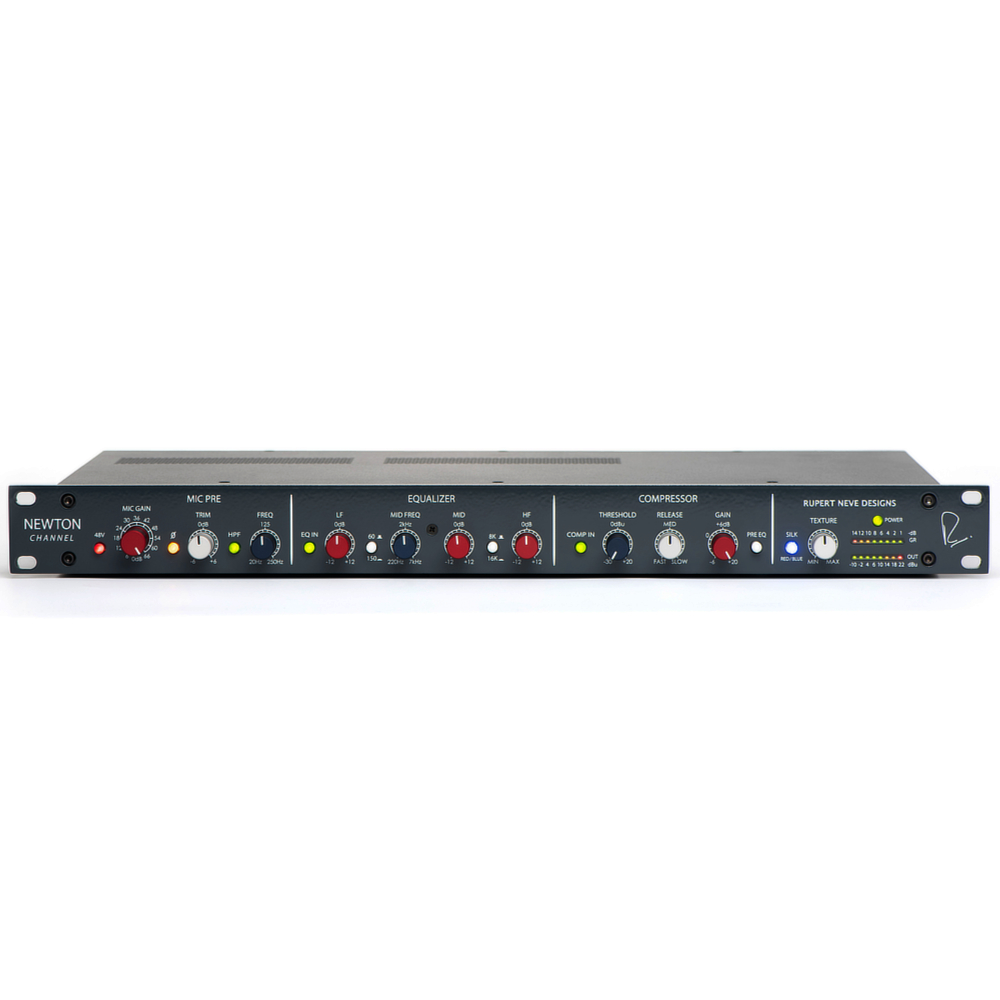

Overview
The Newton Channel includes a fully Class-A mic preamp, a musical, 3-band discrete EQ section, a fast & flexible VCA compressor, and custom Rupert Neve Designs transformer-coupled outputs with our revolutionary harmonic color stage: variable Silk Red & Blue.

The Input Stage & Mic Preamp
The Newton’s microphone preamplifier contains all the tone and musicality expected from a Rupert Neve Designs piece. This preamp makes it incredibly easy to quickly dial in a tight, clean and detailed sound; and with a robust 72dB of gain including 6dB of fine trim control, the Newton is ideally suited for a wide variety of sources.

While the input stage is tailored to be an ideal match for standard microphone source impedance, it is equally happy being driven by line levels – so a pair of Newtons can also be put to use as a high-end mixing tool for any studio. The Newton also includes our distinctive variable high-pass filter with a comprehensive frequency range adjustment and independent bypass switch, allowing the engineer to quickly eliminate unwanted noise, rumble or other low frequency build-up in the source signal.

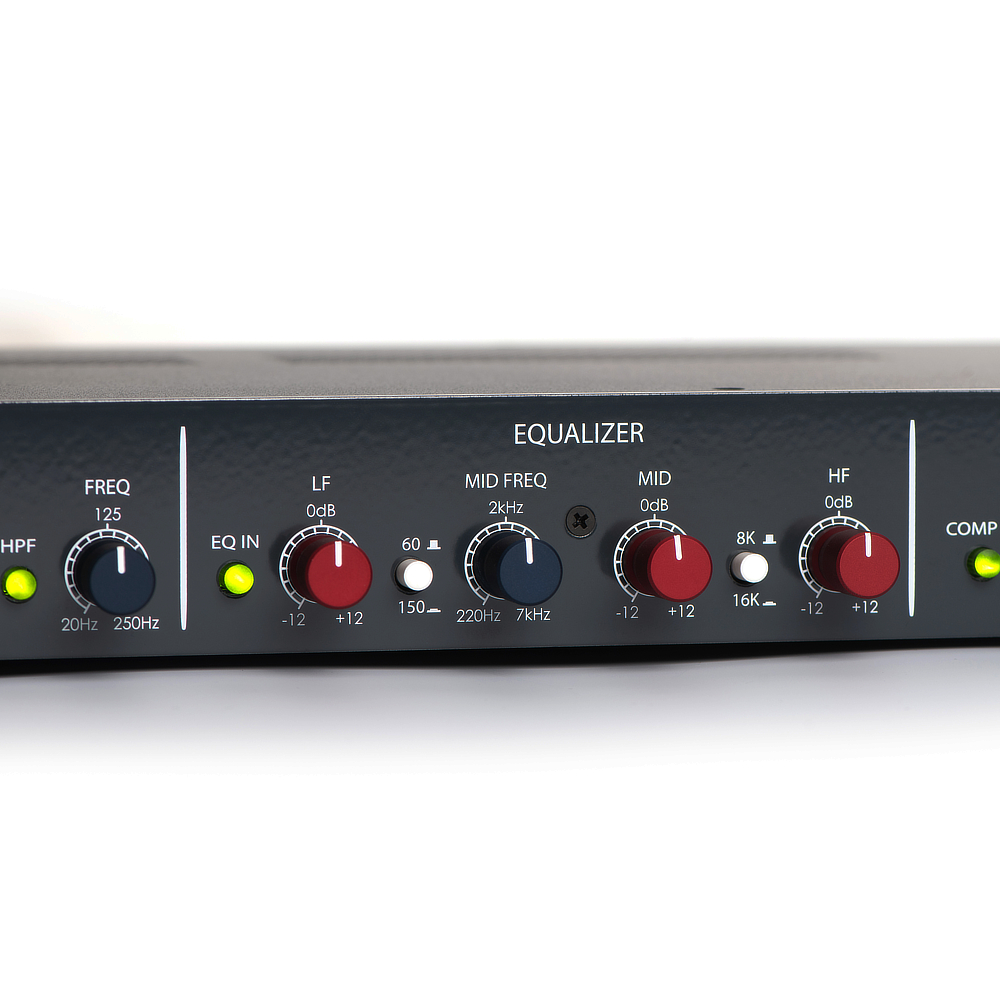

The Equalizer
The EQ section in the Newton is optimized for speed & flexibility with a simplified set of controls. The low and high frequency shelf bands are controllable with accurate 31-detent potentiometers that provide up to 12dB of gain boost/cut, providing the ability to dial in either subtle or extreme settings as desired. The parametric mid-band of the Newton EQ section includes another 31-detent potentiometer and a wide range of mid frequencies to boost or cut, switchable from 220Hz to 7kHz. This makes the MF band particularly flexible, allowing for taming low-mid muddiness, boosting mid frequency presence, or removing any harshness in the upper midrange. The carefully-chosen fixed Q setting maintains a healthy balance of musicality and precision – just wide enough for brush-stroke equalization without adversely affecting neighboring frequencies. As with every section of the Newton Channel, the EQ has an independent bypass button for doublechecking settings every step of the way.

The Compressor
The Newton Channel also contains the latest iteration of Rupert Neve Designs’ ultra-smooth VCA compressor, with +20dB of make-up gain and ample control for any amount of needed compression while maintaining an effortless sound. Also included is a helpful ‘pre EQ/post EQ’ push button to place the compressor either before or after the EQ section, plus an independent bypass button.

Variable Silk
At the end of the Newton’s signal path is the unique & highly coveted variable Silk circuit, providing the power & control to amplify 2nd and 3rd order harmonics by saturating our custom Rupert Neve Designs output transformers for a vintage tonality.

With the variable Texture knob, the engineer is able to precisely dial in the desired amount of harmonic density – with Silk Red mode highlighting harmonics in the highs and upper mid frequencies, and Blue mode accentuating harmonics in the lows and low mids. From a subtle transformer tonality without Silk, to significantly more color than vintage modules with the Silk / Texture circuit fully pushed, the Newton’s output stage can fill out tracks with enhanced power and sparkle.

Custom Transformer Outputs
The Newton Channel has a custom transformer output stage with a balanced MAIN standard line level output. Additionally, a separate -6dBu XLR output can compensate for high levels of input and Silk harmonic saturation, enabling engineers to fully drive the Newton to achieve more transformer harmonics without clipping the next device in the chain. Both outputs are active and can be used concurrently.

Features

• Mic Gain
  12-position rotary switch that controls the microphone preamp gain in 6dB steps. For line level input signals, set the Mic Gain to the “0dB” position.
• 48V
  Push-button switch that illuminates RED when +48V Phantom Power is engaged.
• Ø (Polarity)
  Push-button switch that illuminates AMBER when engaged and inverts the phase of the preamp signal.
• TRIM
  31-detent potentiometer that allows the user to adjust the preamp gain within a range of +/- 6dB.
• HPF
  Push-button switch that illuminates GREEN when the high pass filter is engaged.
• FREQ
  31-detent potentiometer that allows the user to adjust the cutoff frequency of the Sallen-Key high pass filter within a range of 20Hz to 250Hz.
• EQ IN
  Push-button switch that illuminates GREEN when the EQ section is engaged.
• LF
  31-detent potentiometer that controls the amount of boost or cut for the low frequency shelf within a range of +/- 12dB.
• 60/150
  Push-button switch that selects between the two available low frequency shelf frequencies: 60Hz (OUT) and 150Hz (IN).
• MID FREQ
  31-detent potentiometer that controls the frequency of the midband peaking EQ within a range of 220Hz to 7kHz.
• MID
  31-detent potentiometer that controls the amount of boost or cut for the MID FREQ peaking EQ within a range of +/- 12dB.
• 8K/16K
  Push-button switch that selects between the two available high frequency shelf frequencies: 8kHz (OUT) and 16kHz (IN).
• HF
  31-detent potentiometer that controls the amount of boost or cut for the high frequency shelf within a range of +/- 12dB.
• COMP IN
  Push-button switch that illuminates GREEN when the compressor section is engaged.
• THRESHOLD
  31-detent potentiometer that controls the compressor threshold range from +20dBu to -30dBu. When the input signal rises above the set threshold level, compression begins with a soft-knee at a 2:1 ratio.
• RELEASE
  31-detent potentiometer that controls the compressor release time. The overall timing range available is 50mS (FAST) to 500mS (SLOW).
• GAIN
  31-detent potentiometer that controls the compressor make-up gain within a range of -6dB to +20dB.
• PRE EQ
  Push-button switch that routes the compressor section ahead of the EQ section when engaged.
• SILK
  Illuminated push-button switch that toggles through the three available SILK modes: OFF, RED, and BLUE.
• TEXTURE
  31-detent potentiometer that controls the amount of SILK harmonics added within the transformer output stage when SILK is engaged.
• GR and OUT Metering
  8-segment LED meters that indicate compressor gain reduction (dB) and output level (dBu).
• POWER
  LED that illuminates GREEN when the Newton Channel is powered ON.
