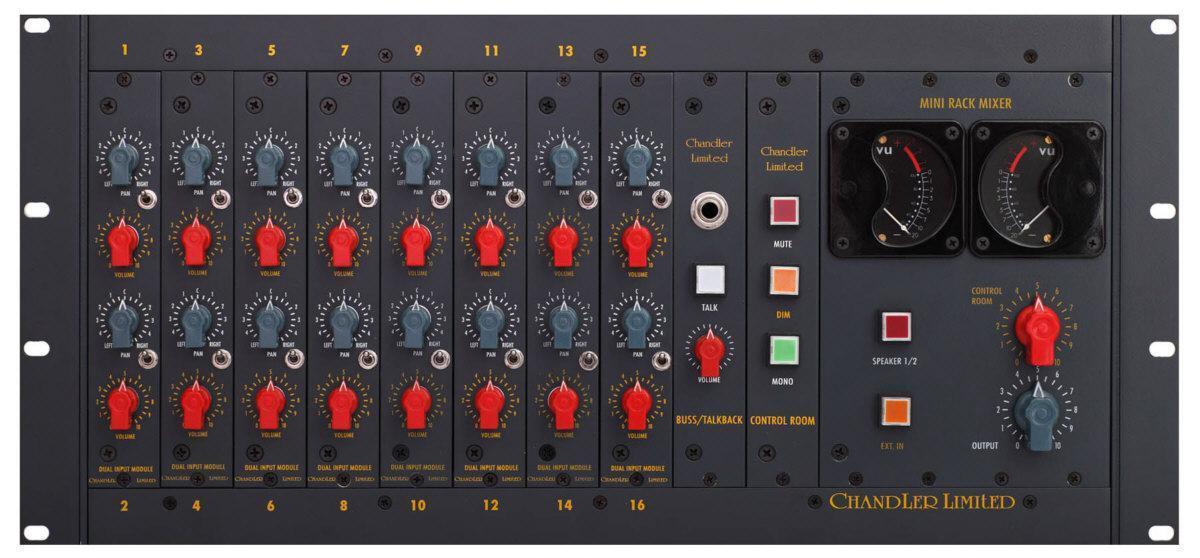

Chandler Limited Mini Rack Mixer
16 channel transformer balanced rack mixer with stereo output and control room functions. This is an affordable and space saving solution for studio with a smaller budget or small space.
The Chandler Limited Mini Mixer is the culmination of Chandlers experience working with many types of vintage discrete circuits. The Mini Rack Mixer traces its lineage back to several types of these amplifiers developed in the 60s and 70s that have been Chandlerized for modern usage.
Each Channel of the 16x2 mixer is transformer balanced and driven by the new Chandler line amp, which borrows from Chandlers other products but has been redesigned for use in this mixer. The Mini Mixer is jam-packed with 20 discrete amplifiers and 22 custom wound transformers, giving it a classic sound with all the punch and tone you need for todays digital environment.
In addition to the mixer section, the unit has a full featured Control Room section including Talkback, Speaker switching, Mute, Mono, Dim, External input (also used as an insert point), and separate Control Room and Stereo Buss outs. Mixers are easily expandable to 32 channels or more.
Mini Rack Mixer Technical Specifications
CHANNELS: 16x2
CIRCUIT: Class A, Discrete, Transistor

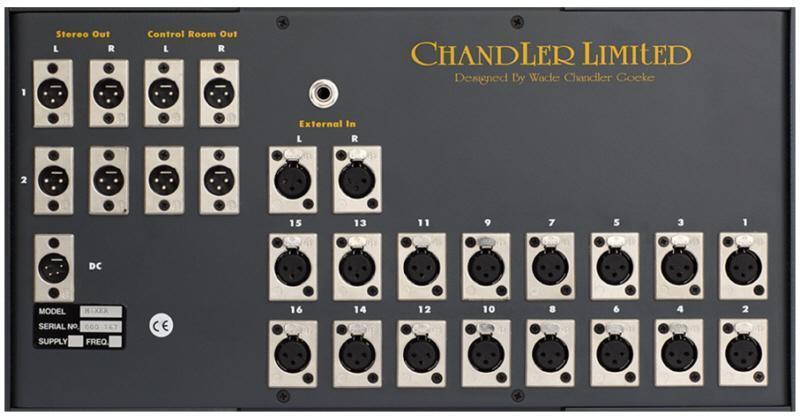

CONNECTIONS
I/O: XLR, Transformer Balanced, Pin 2 Hot, Input Impedance: 10k
External Input: TRS (Stereo)
Talkback Mic: ¼ inch
POWER: +/-28v
Requires Chandler Limited 3-amp external power supply.
