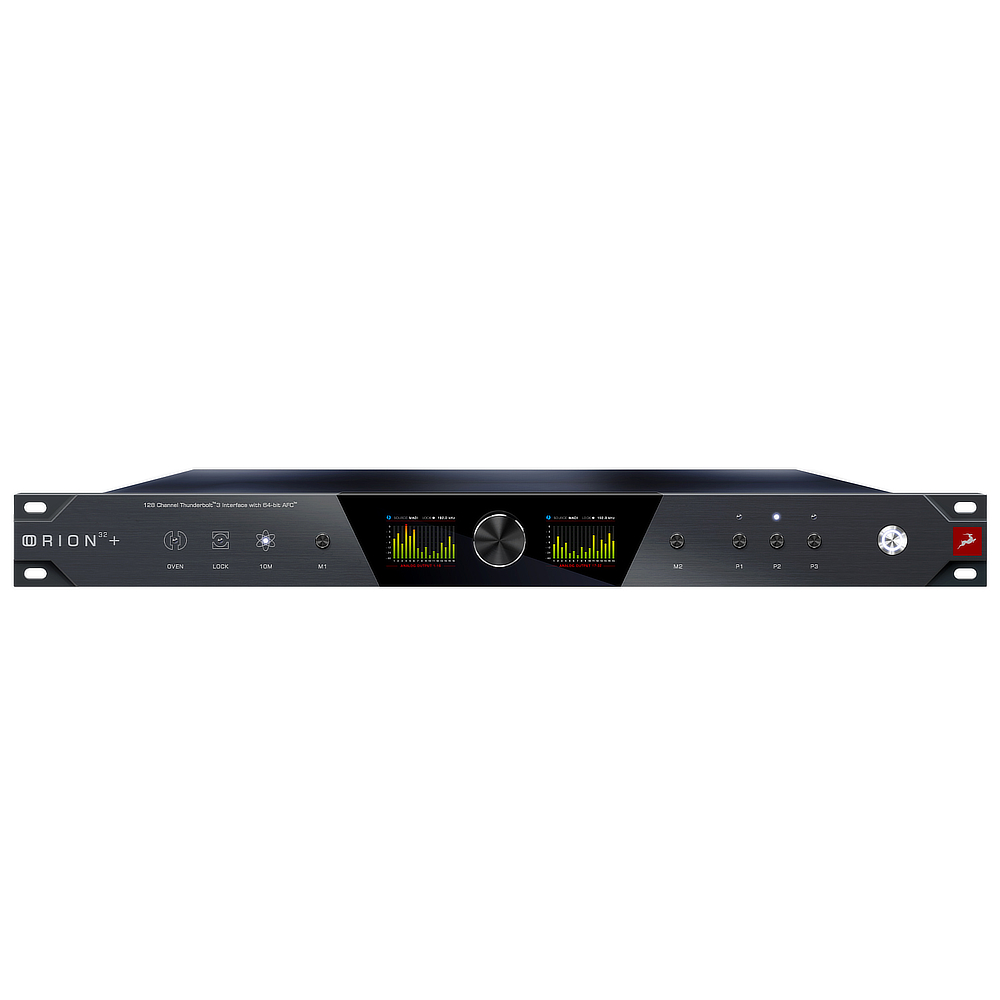

Antelope Audio Orion32+ | Gen 4

Antelope Audio Orion32+ | Gen 4

128-Channel Thunderbolt 3/USB Audio Interface with 64-bit AFC

Limited Offer! Valid January 5th - March 31st, 2026.
Get 18 Premium Plugins - FREE !!

Get access to our best 18 plugins that run in your DAW without hardware. Plus, enjoy their equivalent real-time FX powered by Synergy Core hardware for near zero-latency performance and analog-style depth. From classics like BAE-1073 and Opto 2A to rare units like Diode 609 and MG4+, these plugins run directly on your interface or in your DAW for unmatched clarity and warmth.

1. Purchase a participating Synergy Core interface.
2. Upon activation of the interface, you will receive Bitwig Studio Essentials automatically
3. Receive 18 Plugins automatically upon activation



Connectivity
• 32 analog input channels over 4 × D-Sub 25 connectors with AC/DC coupling switch (TASCAM standard)
• 32 analog output channels over 4 × DC-coupled D-Sub 25 connectors (TASCAM standard
• 1 × Dedicated stereo monitor output over 1⁄4 TRS
• Computer connectivity via single USB-C port supporting either Thunderbolt™ 3 or USB 2.0, for 128 and 32 channels of I/O respectively, at up to 192kHz (Thunderbolt™ 2 also supported via а Thunderbolt™ 3 to 2 adapter)
• Custom macOS & Windows drivers for low latency performance in native DAW applications over both Thunderbolt™ and USB
• Digital I/O: 128 channels of optical MADI (up to 48kHz, reduced at higher SRs), 8 channels of ADAT (up to 48kHz, reduced at higher SRs), and 2 channels over S/PDIF (up to 192kHz)
• Clocking I/O: 1 × word clock input, 2 × word clock outputs, 1 × 10М input



Clocking & Conversion
• Proprietary 64-bit AFC™ (Acoustically Focused Clocking) technology delivering spacious stereo image with distinct separation for an unrivalled level of detail
• High-resolution A/D and D/A conversion ensuring artefact-free audio with 130dB dynamic range on line and monitor outputs and 122dB on line inputs



OPTIONAL MULTICHANNEL MONITORING SYSTEM
• 23+ formats readily compatible, from stereo through surround and immersive audio
• Speaker calibration processing for up to 16 channels or 9.1.6 Dolby Atmos
• Extensive monitoring control functionality designed for seamless workflow
• MRC remote controller compatible as an optional system add on
This feature can be unlocked either via purchasable license available in our software store or with the purchase of an MRC remote controller.



Workflow-enhancing features
• Customizable virtual patch-bay allowing execution of complicated input/output signal routing with a simple drag and drop
• Comprehensive presets system with signal routing, level adjustments, mixer settings and effects
• Handy monitoring pop-out widget with output level controls and 5 quick preset recall buttons
• 4 x onboard low-latency stereo mixers with 32 input channels each, with adjustable levels, panning and reverb settings – suitable for monitoring or summing
• All analog and digital ports can be used simultaneously for easy integration with multiple systems and different setups
• Two 1.8′′ IPS display screens for independent signal metering
• Standalone use without a computer connection available, with routing, metering and monitoring controls from the two front panel displays



In-the-box
• Orion 32+ Gen4
• Getting started guide
• Power adapter
• USB cable
