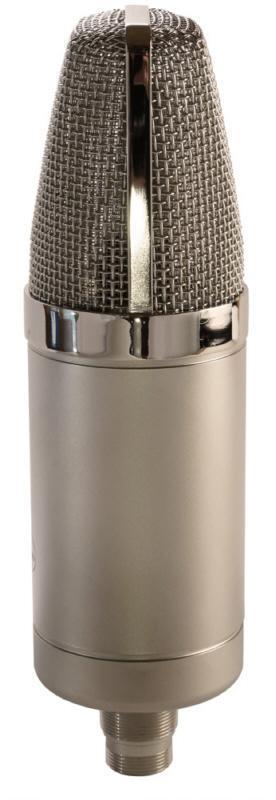

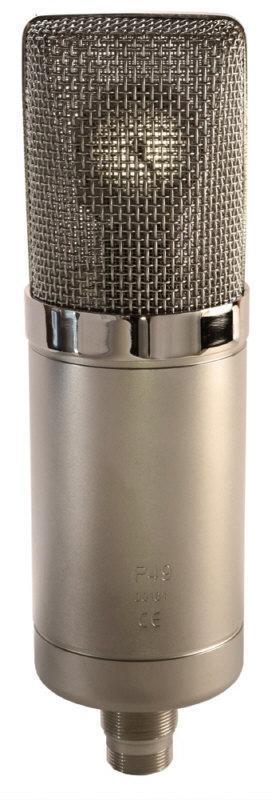

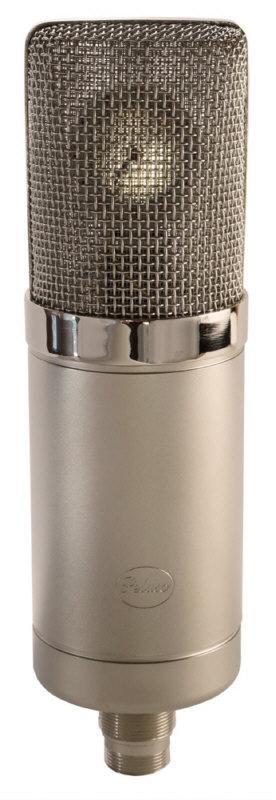

Peluso Microphones P 49
The Peluso P-49 is based on the sonic characteristics of the classis Neumann M49 Vacuum Tube Microphone.
Its equipped with a miniature glass triode tube and a BV-11 style output transformer to capture the mellow, un-hyped beauty of the M-49.
The P-49 is paired with the Peluso MX-56 power supply. The dual sided capsule in the P-49 enables the power supply to feature 9 polar patterns in an array from omni-directional to cardioid to figure eight.
The P-49 features Peluso's heavy-duty 8-pin screw on cable connector. The large diameter pins in the screw on connector give a tight and secure cable connection designed to perform for a lifetime of use.
Acoustically matched pairs are available upon special request.

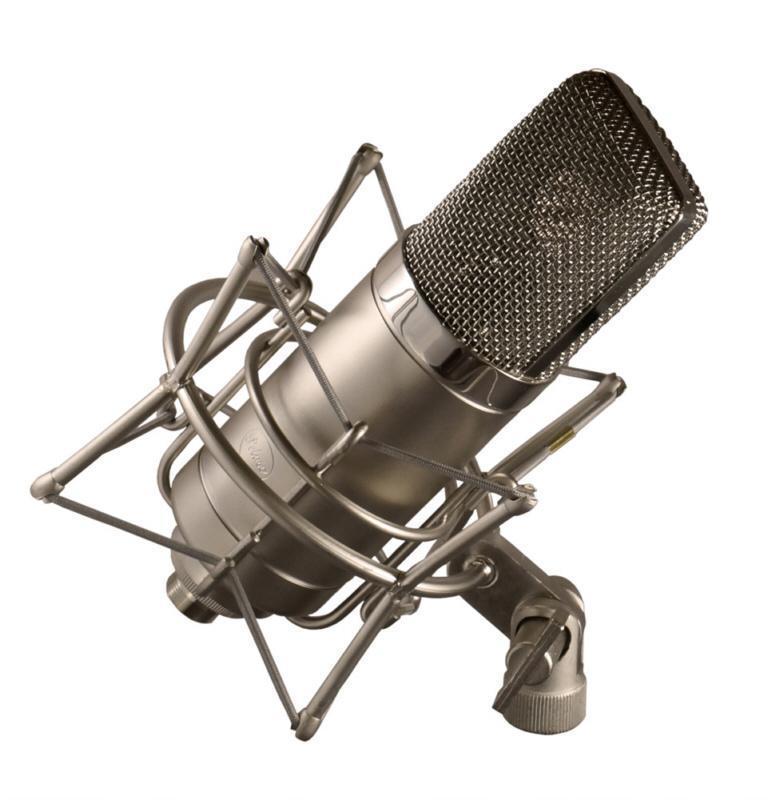

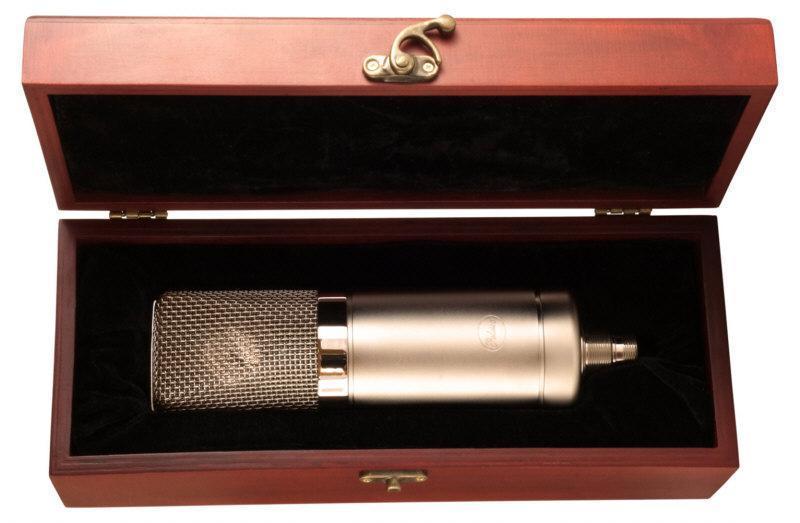

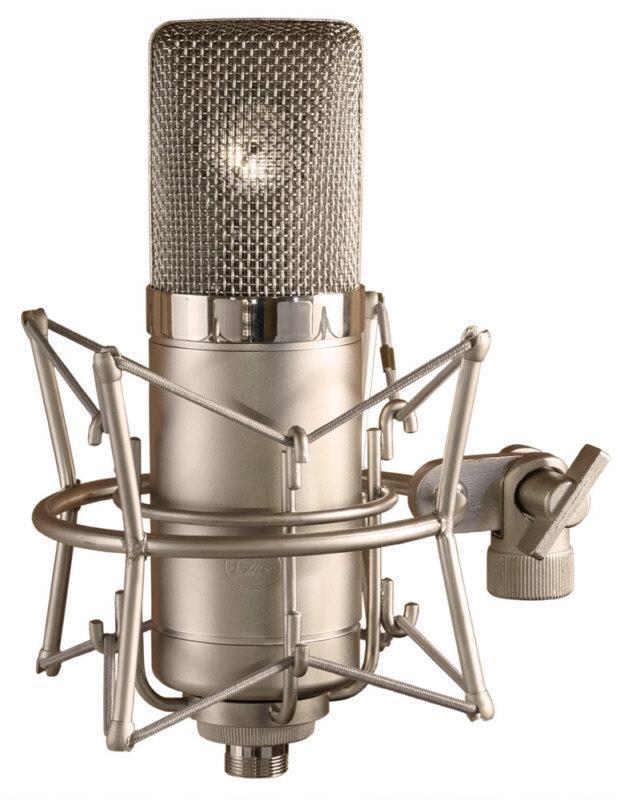

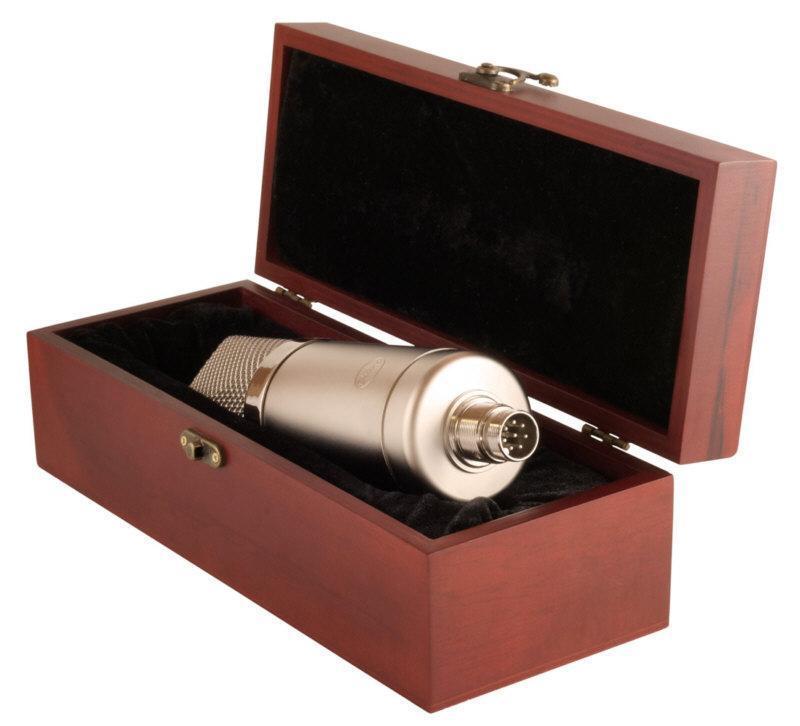

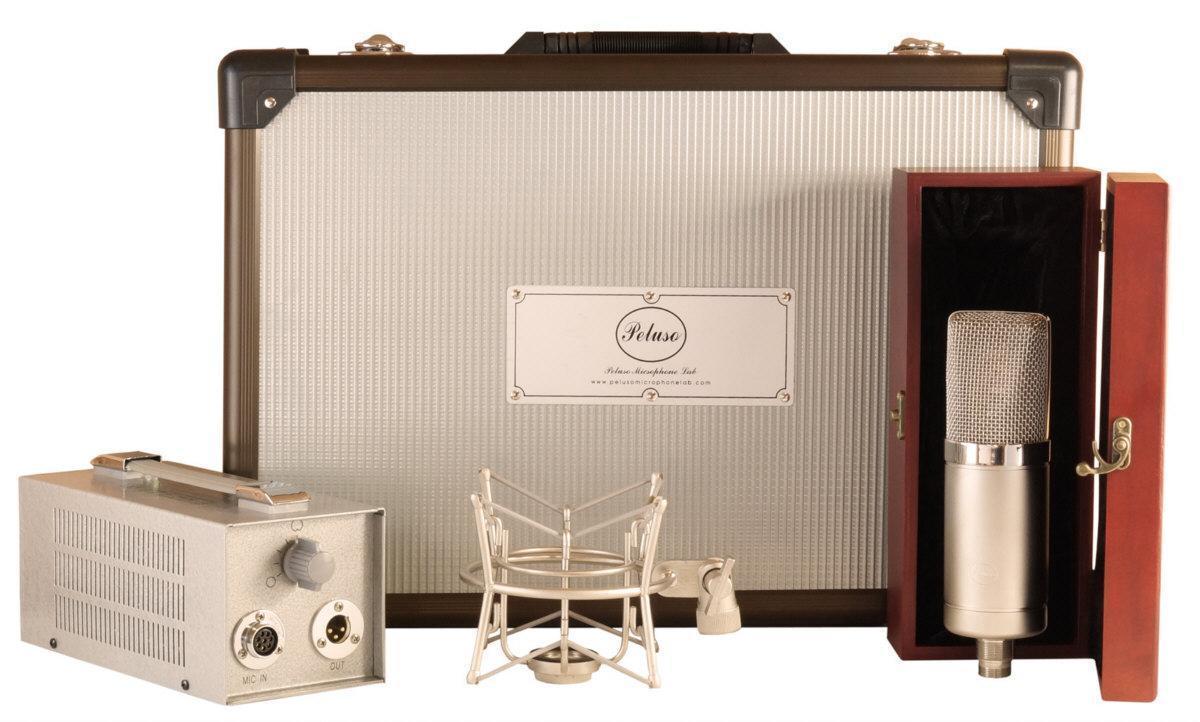

Microphone kit comes as a complete system including: P-49 Microphone in a Wood Box, Power Supply, New-style 8-Pin Screw on Cable Assembly, and a Shock Mount all packed in a Flight Case.
Technical Data
Capsule Type: Condenser Pressure Gradient w/ 34mm K-47 style capsule
Frequency Range: 20Hz/20Khz
Polar Pattern: 9 - Switchable from omni- to bi-directional
Sensitivity: 15 mv/pa
Impedance: 200 ohms
SPL: 147 dB
Equivalent Noise: 14 dB(A)
Tube Type: 5744WB
Power Requirements: Dedicated Power Supply, 115V or 230V AC
Size: 60mm x 205 mm
Weight: 731 g
PELUSO MICROPHONE LAB THREE YEAR LIMITED WARRANTY
PELUSO MICROPHONE LAB warrants that each product is free from defects in material and workmanship and agrees to repair or replace any part of the product which under normal installation and use discloses such defect, provided the product is delivered through the dealer or by the purchaser to PELUSO MICROPHONE LAB intact, for examination, with all transportation charges prepaid, and provided that such examination discloses in the judgment of PELUSO MICROPHONE LAB that it is thus defective. This warranty does not extend to any parts which have been subjected to misuse, abuse, neglect, accident, incorrect wiring, improper installation, or use in violation of instructions furnished by us nor to any PELUSO MICROPHONE LAB product which may have been tampered with, altered or repaired outside of PELUSO MICROPHONE LAB Authorized Service Centers. This warranty is in lieu of all other warranties expressed or implied, and no one is authorized to assume any liability on behalf of PELUSO MICROPHONE LAB, or impose any obligation on it in connection with the sale of any product other than as outlined above. This warranty is conditioned on and becomes effective only after the purchaser returns the detachable card, properly filled out, to PELUSO MICROPHONE LAB service department within fourteen (14) days after date of delivery to purchaser.
