Peluso TR 14
Silky smooth Ribbon Microphone featuring a Vacuum Tube gain stage
Peluso paired the classic design of the R 14 Ribbon Microphone with a tube gain stage and the result is the Peluso TR 14 Tube Ribbon Microphone. This unique design allows the TR 14 to handle low-level sources and long cable runs transparently and without the need for high gain pre amps. The TR 14 provides enhanced gain and added harmonic complexity to the rich, warm, and silky smooth sound of a ribbon microphone. The unique sound of the TR 14 Ribbon is the perfect complement to the condensers in your microphone collection.
Remember never blow into a ribbon microphone!

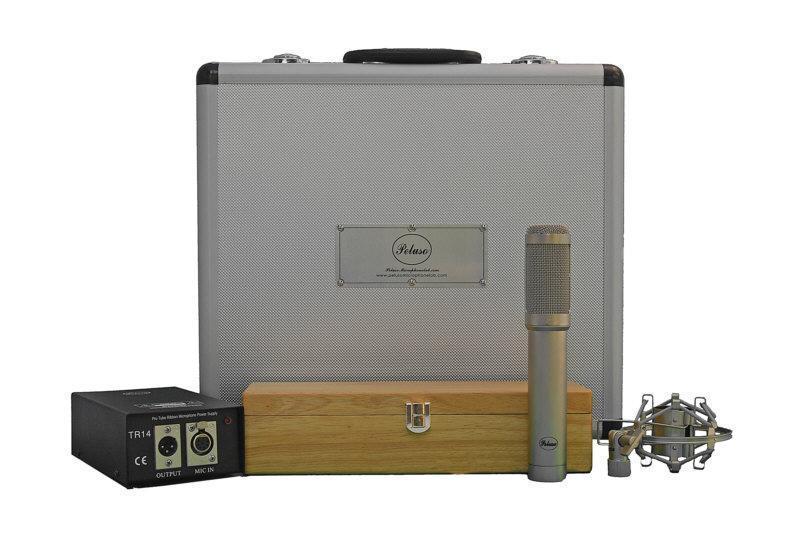

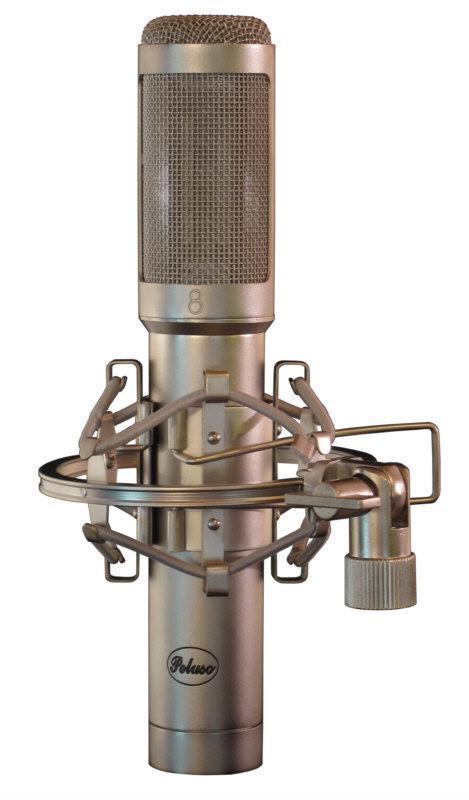

The microphone comes as a complete system including: TR 14 Microphone in a Wood Box, Shock Mount, Power Supply, and 7-Pin Cable all packed in a Flight Case.
Technical Data
- Type: Ribbon-Velocity Studio Microphone
- Operating Principle: Electrodynamic Pressure Gradient
- Magnets: Rare Earth Neodymium
- Frequency Range: 30 Hz/16k Hz
- Polar Pattern: Figure 8 (Bi-Directional)
- Sensitivity: > -35 dBV (re 1v/pa)
- Impedance: 200 ohms
- SPL: 149 db
- Equivalent Noise: 15 dB(A)
- Tube Type: CK5784 / 6J1P sub-miniature glass tube
- Power Requirements: Dedicated Power Supply, 115V or 230V AC
- Size: 36mm x 210 mm
- Weight: 450g
PELUSO MICROPHONE LAB THREE YEAR LIMITED WARRANTY
PELUSO MICROPHONE LAB warrants that each product is free from defects in material and workmanship and agrees to repair or replace any part of the product which under normal installation and use discloses such defect, provided the product is delivered through the dealer or by the purchaser to PELUSO MICROPHONE LAB intact, for examination, with all transportation charges prepaid, and provided that such examination discloses in the judgment of PELUSO MICROPHONE LAB that it is thus defective. This warranty does not extend to any parts which have been subjected to misuse, abuse, neglect, accident, incorrect wiring, improper installation, or use in violation of instructions furnished by us nor to any PELUSO MICROPHONE LAB product which may have been tampered with, altered or repaired outside of PELUSO MICROPHONE LAB Authorized Service Centers. This warranty is in lieu of all other warranties expressed or implied, and no one is authorized to assume any liability on behalf of PELUSO MICROPHONE LAB, or impose any obligation on it in connection with the sale of any product other than as outlined above. This warranty is conditioned on and becomes effective only after the purchaser returns the detachable card, properly filled out, to PELUSO MICROPHONE LAB service department within fourteen (14) days after date of delivery to purchaser.
