Audient ASP8024-36 Heritage Edition

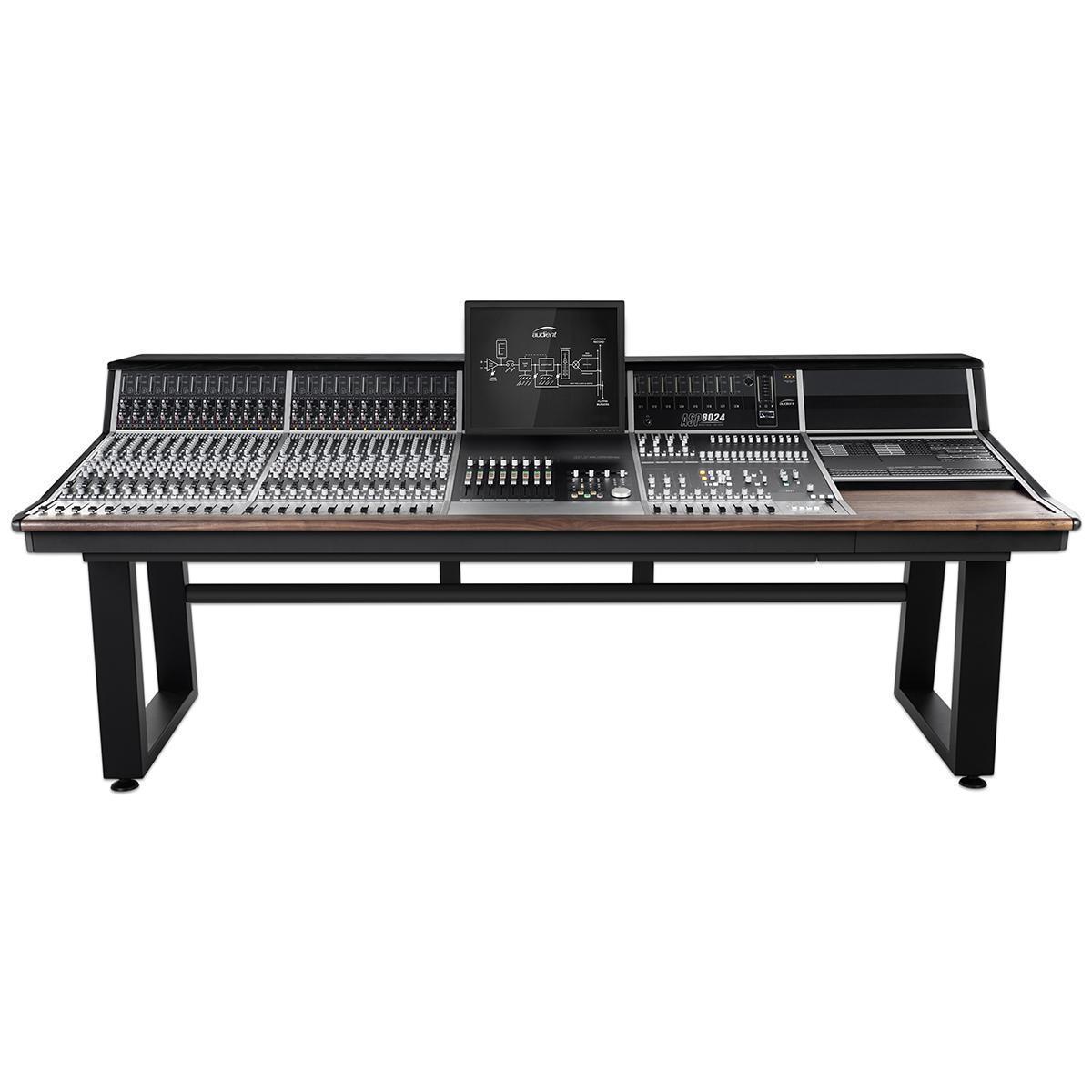

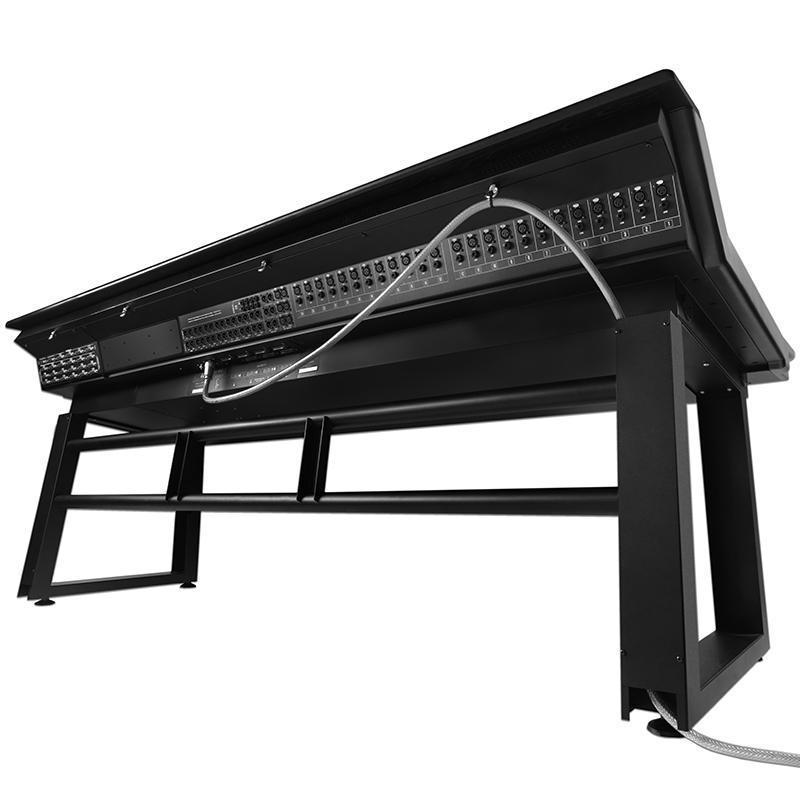

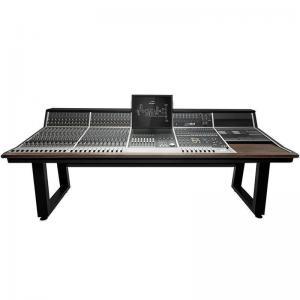

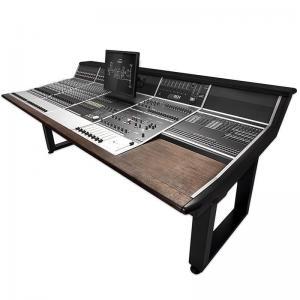

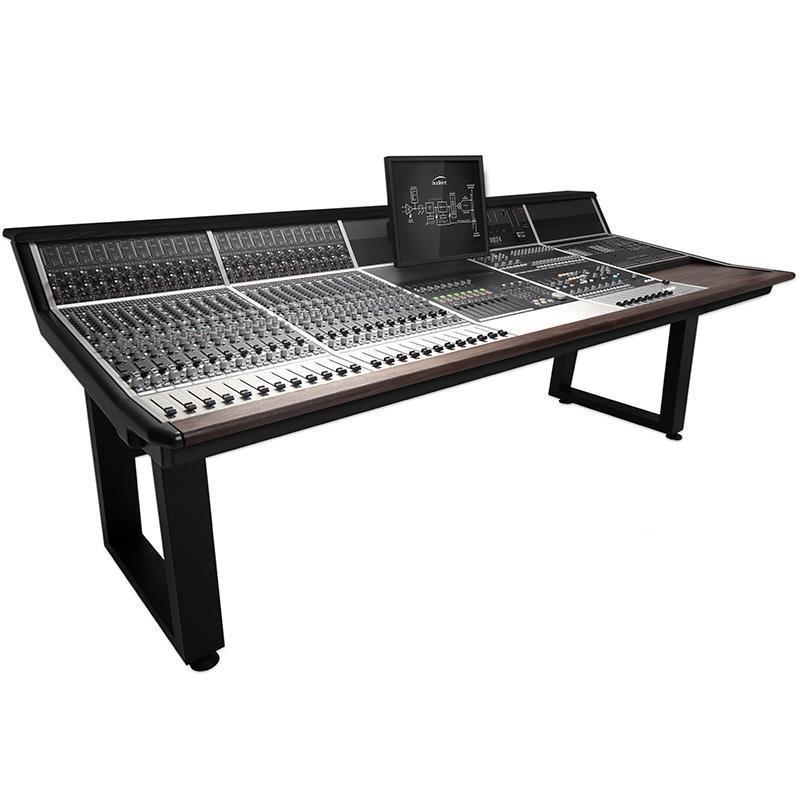

The Audient ASP8024-HE-36 Heritage Edition analog in-line 36 Channel 24 bus Console.

SPECIAL ORDER ITEM: non-cancelable and non-returnable

The Audient ASP8024-HE in-line analog recording console features: 24 bus routing with 8 Subgroups, 14 Auxiliary Sends, 4 Stereo Returns, a Comprehensive Monitor Section including a Stereo VCA compression. John Hardy 990 main mix bus with additional variable user selectable Mix bus processing. Each of the input channels features Audients impressive Class A mic preamp and 4 band EQ, splittable between Mic/Line & Tape inputs. The console is modular in construction and the layout is customizable at the time of ordering. Ships with stand and power supply unit. Finish options: Walnut, Ash Natural or Ash Black Armrest and Top Trim with molded side cheeks.

With the ASP8024 in production nearly 20 years, and thousands of consoles in use around the world based on his legendary circuit blocks, we've returned to designer David Deardens roots to release the definitive version of the ASP8024 - the Heritage Edition. 19 years ago David set out to design an analogue recording console not knowing it was destined to become a modern classic and to commemorate Audient and his phenomenal achievement we have reimagined his classic design with all new enhancements and features.



AT A GLANCE

• 80 Inputs (36 Channel)
• Variable Mix Bus
• Audient Mic Pres
• 4 Band Splitable EQ
• Mix Bus Compressor
• Inline Architecture
• Comprehensive Monitor Control
• Monitoring Grade Headphone Output
• 48v Enabled Talkback Mic
• 24 Track Routing
• 14 Auxiliary Buses
• Modular Construction
• Whisper Quiet Power Supply

Optional Extras:

• ASP510 Surround Controller Console Link
• Bespoke extended depth top shelf upgrade, up to
  300mm
• Bespoke armrest upgrade, with extra deep center for
  keyboard/mouse
• Bespoke hardwood side cheeks
• 48 bus modification, includes switch to select between
  split and linked bus mode
• Dual Layer Control (DAW Automation)
• Extra long power supply cable upgrade 7.5m, 12m, or
  15m
• Patch Bay
• Producers Desk (single or dual)
• VESA Monitor Screen Mount

PLEASE CONTACT US FOR CONFIGURATION AND OPTIONS PRICING

VARIABLE MIX BUS TECHNOLOGY
A mix bus with character.

By utilizing an American style output amplifier, classic through hole components and a British output transformer we bring you RETRO IRON, a variable output mix bus with LOW BUMP and HIGH LIFT EQ. Based upon two consoles from Davids first job in 1967 at the now legendary Advision Studios in London, RETRO IRON adds punch and vibe to the consoles mix output. So whether your simply tracking, summing a few inputs or crafting a fully blown console mix RETRO IRON offers you that unique analogue console sound with a little bit of extra character that will put the final touch on any mix.



OUR RENOWNED MIC PRE DESIGN
The professional sound you deserve.

We are the only company that use the same Class-A mic pre design throughout our entire product range, whether youre in the studio with the ASP8024 or on the road with iD14, youre always guaranteed the same world class Audient sound.



FOUR BAND EQ
Flexible, powerful, musical.



THE MIX BUS COMPRESSOR
Make light work of your mixes.



MODULAR DESIGN
Select your perfect workflow.



DUAL LAYER CONTROL
Seamlessly integrate with your DAW.

Take control of your DAW session with our Dual Layer Control module. DLC provides creative DAW control and automation along with eight moving faders that can be banked across your entire session. A range of useful control features are also available at your fingertips including transport control, track record enable and plug-in selection/editing, all of which enable you to navigate your session with ease. Supports Pro Tools, Logic, Cubase & Nuendo.



INLINE ARCHITECTURE
Refine your workflow.

The consoles inline architecture allows you to start building your mix as your tracking. By using the long and short faders you can create separate record and monitor balances on one channel strip, all while being able access the consoles splitable EQ and aux sends, perfect for getting it right from the start. Experience the classic large format console workflow and take your mixes to the next level.



COMPREHENSIVE MONITOR CONTROL
The complete monitoring solution

Our fully featured monitor control section offers full artist communication, new remote talkback control, a new additional engineer headphone output, powerful source selection and loud speaker control with a short passive signal path for incredibly clear and accurate monitoring. We know youll be reaching for the monitor control knob a lot so we added the phenomenal feeling Alps BLUE VELVET pot and custom aluminum knob for a touch of class during everyday use.
