THIS PRODUCT HAS BEEN DISCONTINUED

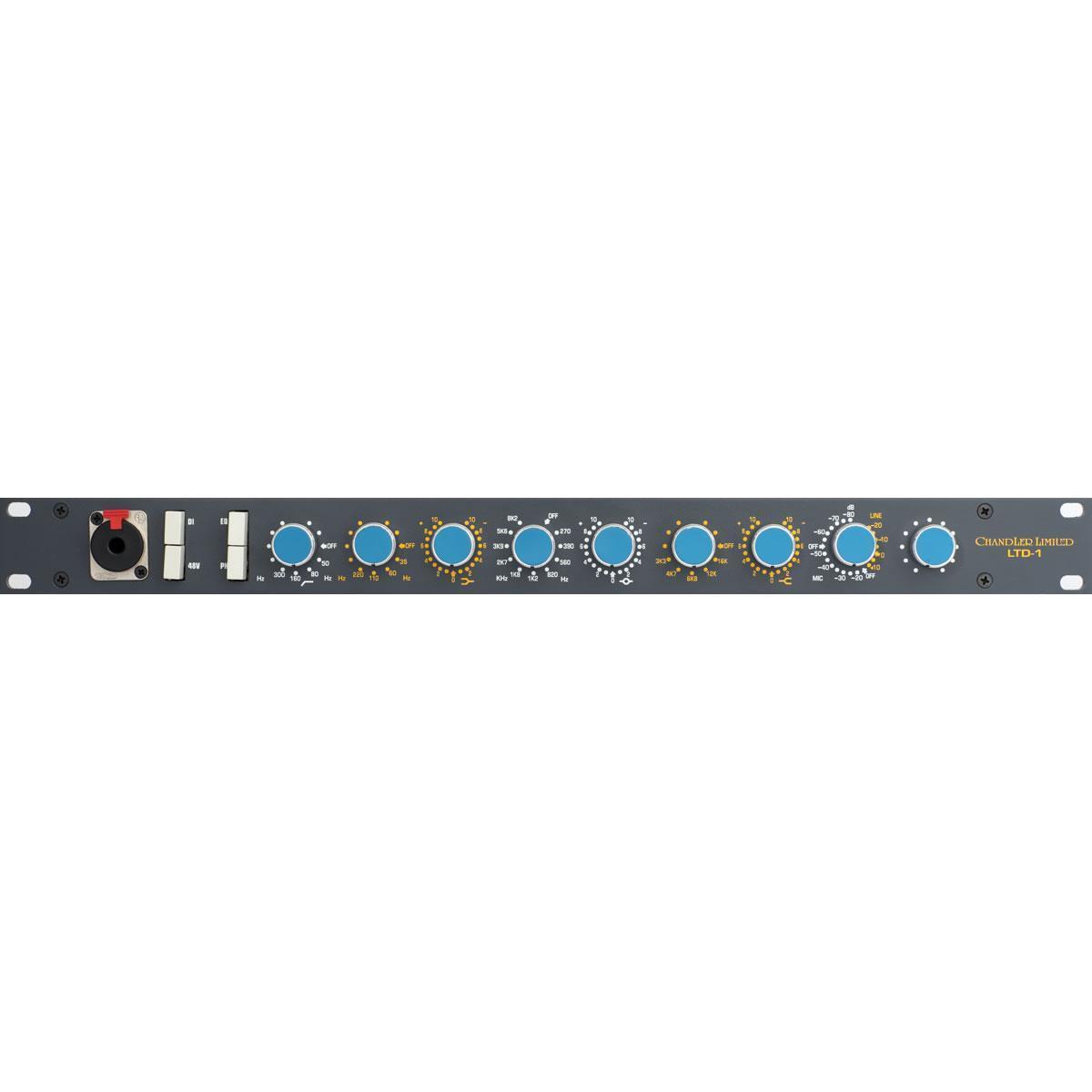

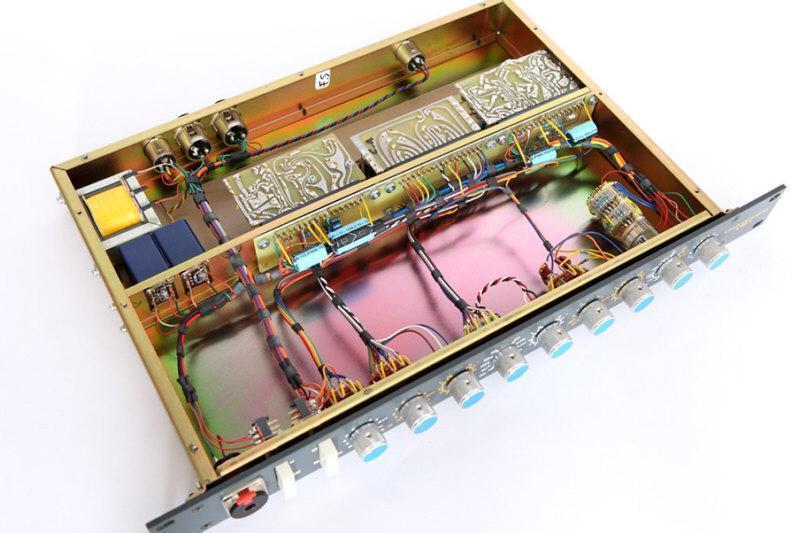

The Chandler Limited LTD-1 is a hand wired and handmade 10-series equalizer and pre amp using parts and build techniques from the original manufacture of the modules. Grounding, wiring techniques, original transformers, transistors, and inductors have been used to attribute to the special sound in each LTD-1.
In addition to the classic 10-series sound we added all the modern functions you would expect and expanded the EQ section giving a much larger palate to choose from. Features include high impedance direct in, 48v switching, output fader, EQ in/out, phase reverse, balanced mic in, balanced line in, overbuilt power supply to ensure maximum headroom, and nine additional EQ points.
LTD-1 EQ/Pre Amp Technical Specifications CHANNELS: Mono
CIRCUIT: Discrete, Transistor
Mic Input: -20db to +80db, 5db increments
Line Input: +10db to -20db
CONNECTIONS
I/O: XLR, Transformer Balanced, Pin 2 Hot
DI, 1/4″ Unbalanced, 100k input impedance
POWER
Phantom Power: +48v
Power: +/-28v
Requires the Chandler Limited PSU-1 MKII power supply
