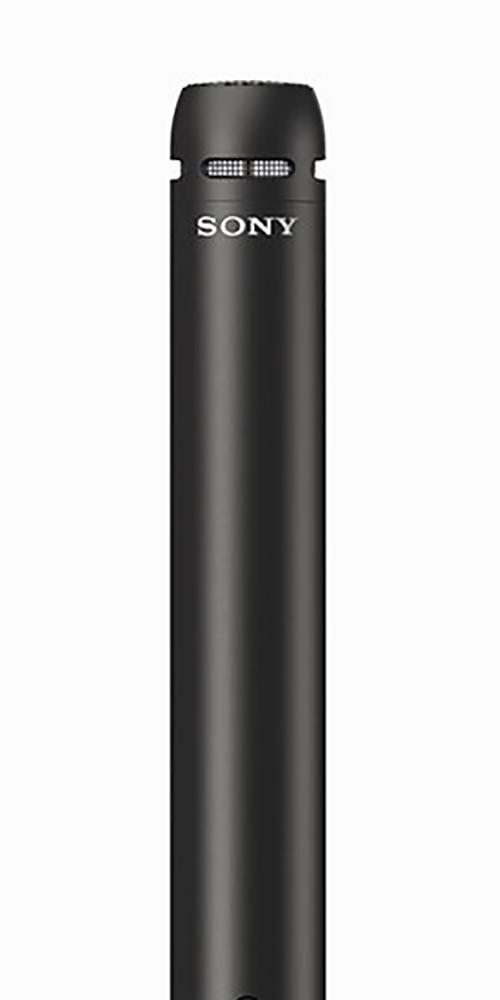

Sony ECM-100U

The Sony ECM-100U is a Uni-directional electret condenser microphone ideal for instrument recording in studio and compatible with High-Resolution Audio. Equipped with a newly developed microphone capsule, ECM-100U delivers flat and wide frequency response of 20 to 50,000 Hz and picks up the raw sound of the instrument’s original features.

• Ultra-compact with a choice of two models: Uni-directional (ECM100U) or Omni-directional (ECM100N)
• Flat and wide frequency response (20Hz to 50kHz) ideally suited for High-Res Recording
• Low-Cut filter eliminates low-frequency noise and proximity effect
• -10dB pad switch provides added headroom

Specifications

• General
• Type: Electret condenser
• Power supply: External power supply operation 44 V to 52 V DC (IEC 61938 P48)
• Power consumption: Less than 2.5 mA
• Output connector: XLR-3-12C Type
• Dimensions: 19 mm dia. x 130 mm (0.75 in. dia. x 5.12 in.)
• Mass: Approx. 130 g (4.6 oz)

  Performance
• Frequency response: 20 Hz - 50,000 Hz
• Directivity: Uni-directional (ECM-100U)
• Output impedance 100 Ω ±15%, balanced

  Sensitivity
• -41 dB: (ECM-100U)
• (deviation±3 dB)
• (0 dB=1 V/Pa, 1 kHz)

  Inherent noise
• Less than 21: dB SPL
• (0 dB=2 x 10-5 Pa)
• (IEC 61672-1 A-Weighted, 1 kHz, 1 Pa)
• Maximum input sound pressure level
• More than 142 dB SPL: (ECM-100U)
• (output level for 1% waveform distortion at 1 kHz, converted into equivalent input sound pressure level: 0 dB=2 x 10-5 Pa)
• Dynamic range More than 121 dB: (ECM-100U)
• PAD: 0 dB/-10 dB (switchable)
• LOW CUT filter: Flat/30 Hz (switchable)

What's in the box

• Microphone holder x 1
• Wind screen x 1
• Stand adaptor (W3/8 - NS5/8) x 1
• Carrying case x 1
• Operating instructions x 1
• Warranty card x 1
