WesAudio Dione

Manufacturer: WesAudio

Be the first to review this product

Product ID: wesaudio_dione

~~$1,558.80~~
$1,299.00

Add to wish list E-mail to a friend

Overview

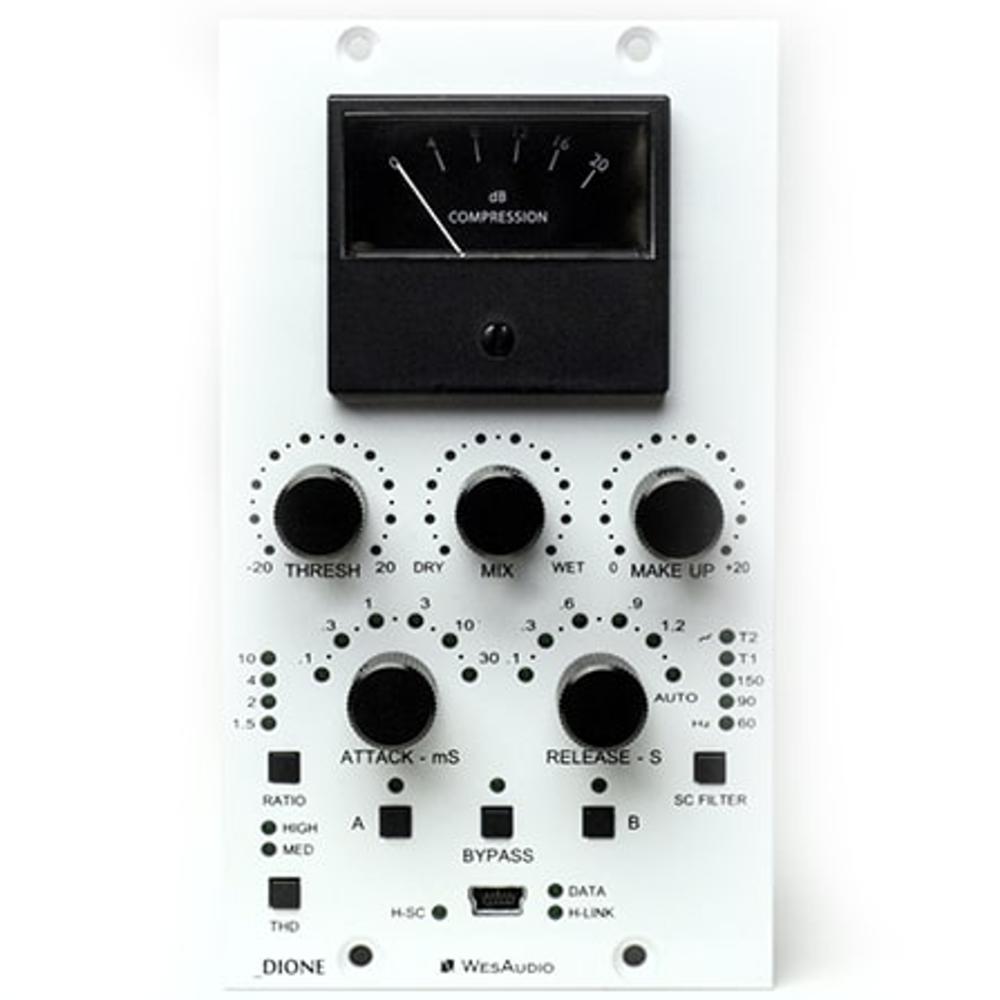

WesAudio Dione 500 Series VCA stereo bus compressor with +24dBu of headroom & digital recall.

WesAudio Dione
500 Series Analog Stereo Bus Compressor
with +24dBu of headroom & Digital Recall

Legendary sound of Stereo Bus compressor has been true companion on countless recordings since 40 years. Often recognized as “mixbus glue”, this particular compression sound have become industry standard. We present _DIONE – fully analog, legendary VCA compressor with digital recall.

FEATURES

100% analog device with +24dBu of headroom powered by VCA THAT 2181,
MIX KNOB FOR PARALLEL COMPRESSION
THD – harmonic distortion with two modes (Medium & High),
SIDE CHAIN FILTERS – 3 high pass filters at 60,90 and 150 Hz, and 2 tilt filters which are special “curve” designed filters,
FOUR RATIO SETTINGS – 1.5:1 and 2:1 for gentle mixbus processing, and 4:1 and 10:1 for large variety of applications,
500 SERIES and ng500 (e.g. _TITAN) SERIES COMPATIBLE,
TOTAL RECALL AND PLUGIN CONTROL compatible with most DAWs.
ANALOG AUTOMATION in DAW.
Fully digitally controlled and isolated analog circuit,
Digital recall can be acheived by connecting unit directly through front panel mini USB socket, or using it inside _TITAN chassis,
Digital sidechain – it is possible to send any track from your DAW as side chain signal to the compressor – It is enough to configure side chain feature in connected plugin,
3 touch sensitive encoders allow record automation of particular parameters (Threshold, Mix, Make Up) in DAW,
True bypass,
Accurate analogue GR meter and its precise simulation implemented in the plug-in itself,
Free software and firmware upgrades.

SPECIFICATIONS

Frequency response	20Hz-20kHz (0.1dB)
THD+N (WET)	0.008% (1kHz,0dBu)
THD+N (DRY)	0.004% (1kHz,0dBu)
Input impedance	10kohm
Output impedance	< 100ohm
Max gain	21dB
Crosstalk	< -90dB
Attack	0.1, 0.3, 1, 3, 10, 30 (ms)
Release	0.1, 0.3, 0.6, 0.9, 1.2, Auto (ms)
Ratio	1.5, 2.4, 10
SC Filter	60, 90, 150, T1, T2
THD (MID switch)	1%
THD (HIGH switch)	4%
Power consumption	70mA/+16V and 50mA/-16V (per slot)
