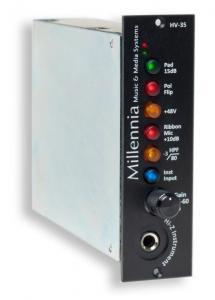

Millennia HV-35

Millennia HV-35
500 Series Preamp Module based on Millennia's acclaimed HV-3C rack mount preamp.

The module is to be used with an API compatible rack.

• Continuously variable gain control
• Front panel instrument input
• DC coupled ribbon mic with 10dB gain boost setting
• 80 Hz rolloff filter
• 48V phantom power
• 15 dB Pad
• Polarity flip
• API 500 series compatible format

Specifications

• Minimum Gain
  14.5 dB, 1dB with Pad
• Maximum Gain (continuously variable)
  60 dB (70 dB in Ribbon Mode)
• Frequency Response
  (-3 dB) < 10 Hz to > 200 kHz
  typical -1.0 dB @ 10 Hz
  typical -1.5 dB @ 200 kHz
• Noise
  (60 dB Gain, 10 Hz - 30 kHz, Inputs common) -130 dB EIN
• Total Harmonic Distortion + Noise
  (35 dB Gain, 10 Hz - 20 kHz bandwidth, +24 dBu Out) < .003%, Typical < .001%
• Intermodulation Distortion
  (50 Hz & 7 kHz) 35 dB Gain < .0006% +12 dBu Out < .001% +20 dBu Out
• Phase Response
  (35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out) < 2 degrees deviation
• Common Mode Rejection Ratio
  (35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.) > 65 dB, Typ > 85 dB
• Slew Rate
  (35 dB Gain, +24 dBu Out) > 25 Volts per microsecond
• Maximum Input Level
  (20 Hz - 40 kHz) +12dBu @ 0.02% THD+N
• Maximum Output Level
  1 kHz @ 35dB of gain, THD+N is:
  < 0.001% at +26dBu output
  < 0.05% @ +28 dBu output.
• Phantom Input Impedance
  (1 kHz) 2,210 ohms
• Output Impedance
  24.3 Ohms (x2)
• Phantom Powering
  provided by 500 rack
• Dimensions/Shipping Weight
  1.5” W x 5.25” H x 6” D, 2 lbs.
