AEA SNAQBOX
Two-Channel 500 Series Chassis
Currently Backordered - Please contact us for availability
Your Signal Chain—Now in Full View

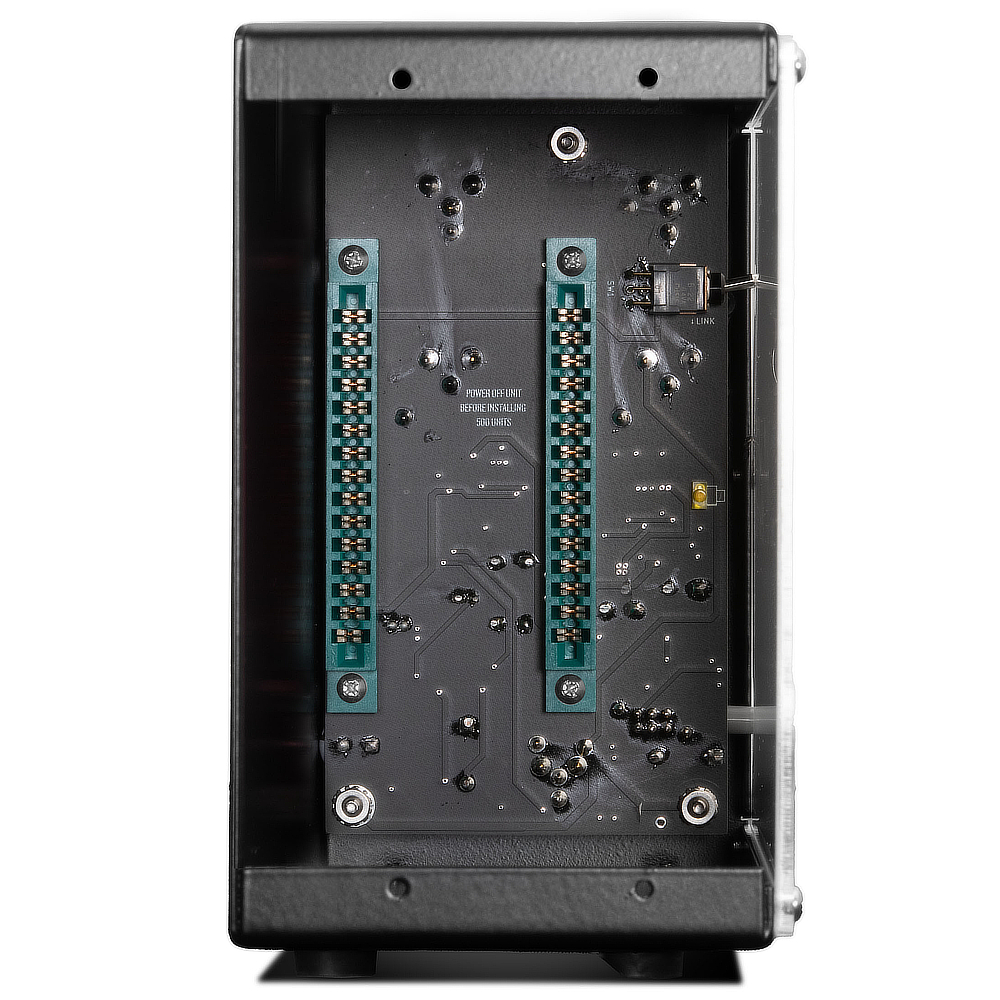

The AEA SnaqboxTM is a transparent, two-channel, 500-series chassis with separate dual linear regulators
for each channel, ensuring complete power isolation between 500 units. The unit is powered by an external
switching power supply to keep switching noise away from the unit.

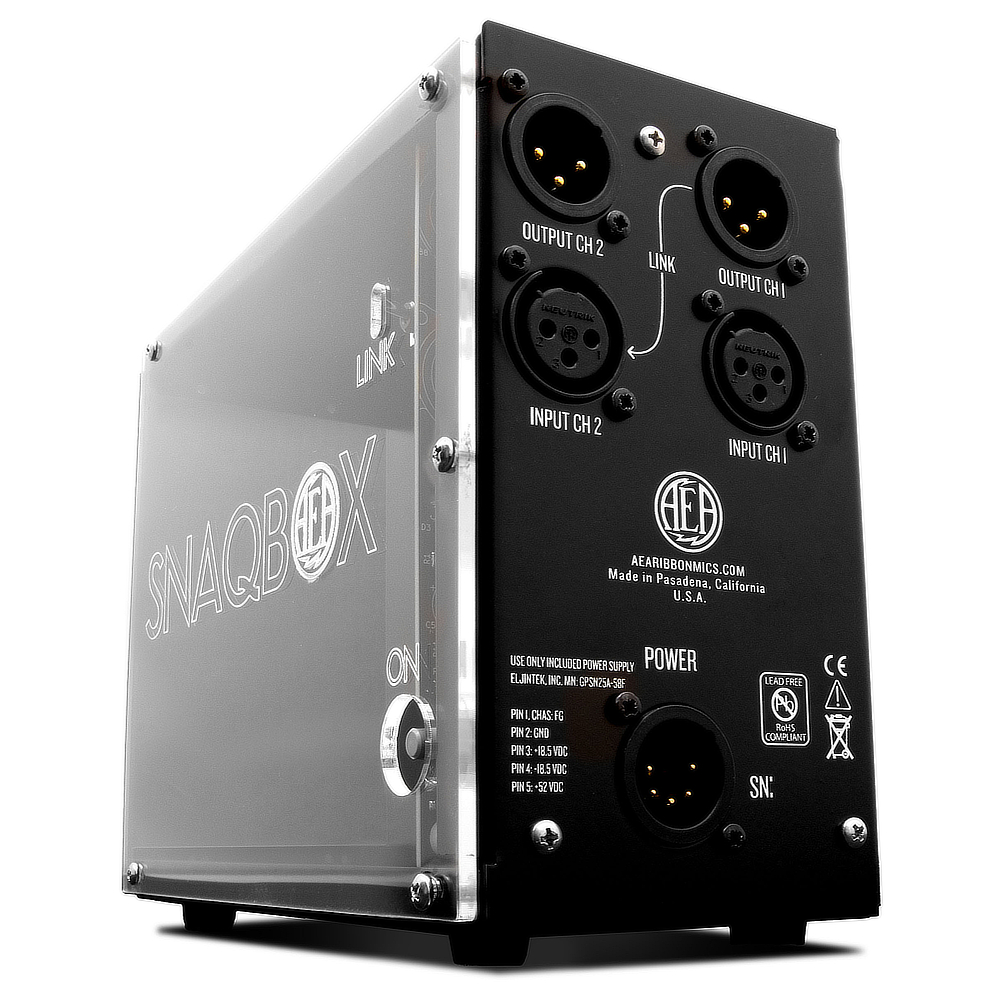

The acrylic sideplate of the unit comes in either clear or fluorescent orange. The chassis is made of steel and the

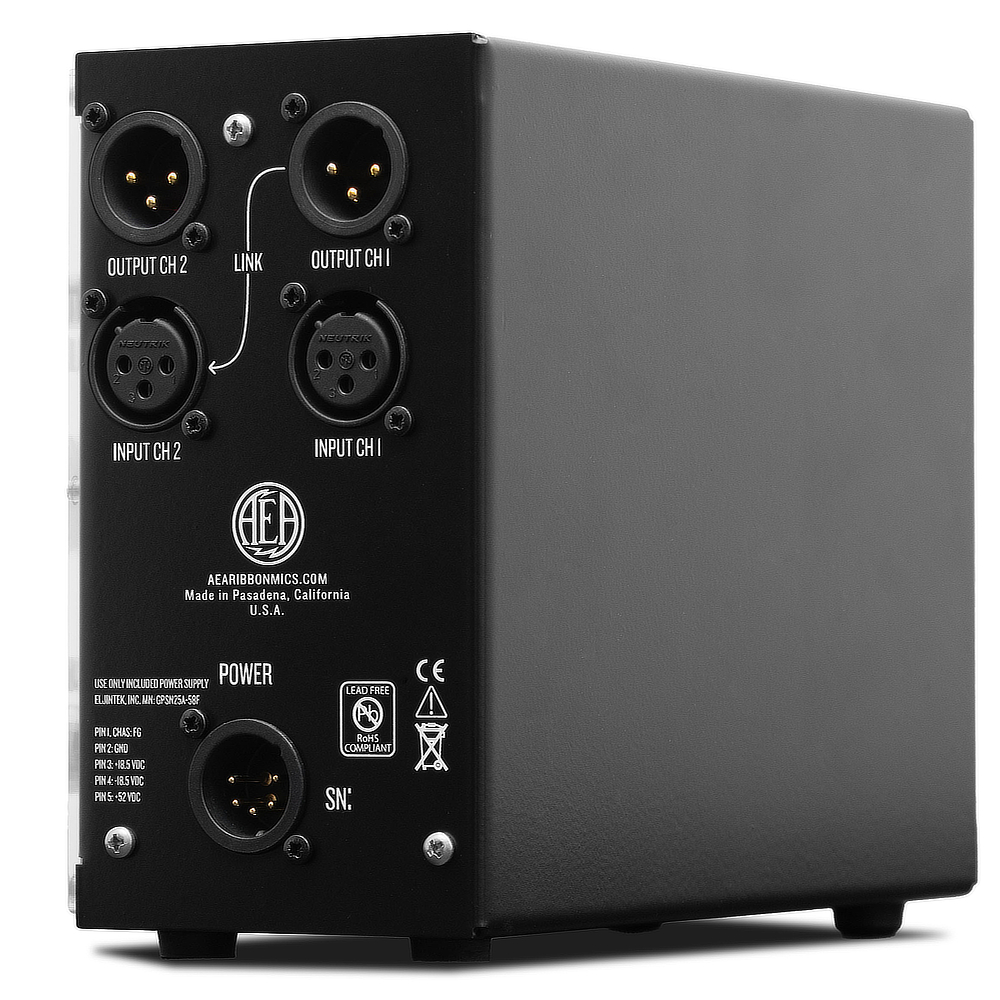

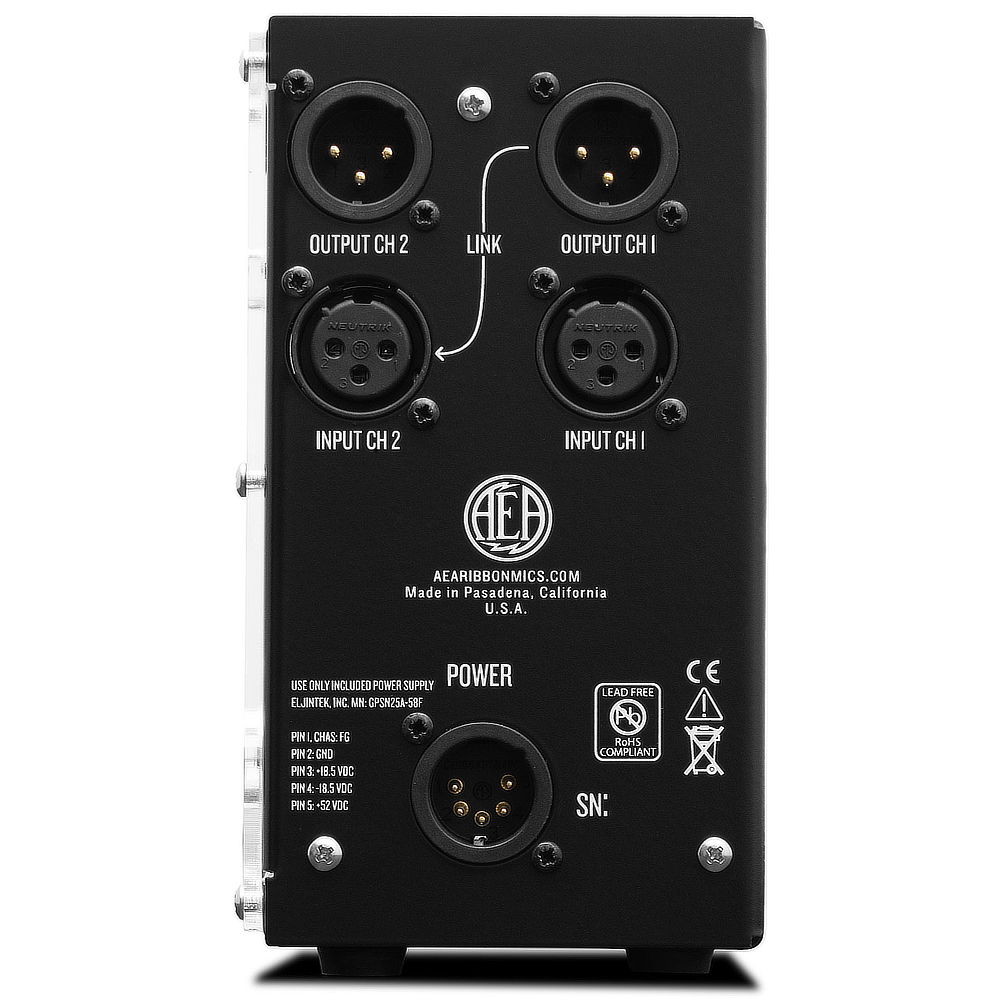

bottom of the SnaqboxTM is affixed with durable rubber bumpers. All XLRs on the SnaqboxTM are Neutrik brand.
Five 1⁄4” flathead 4-40 screws are included with every unit.
The SnaqboxTM features a LINK/CASCADE switch. When engaged, the audio output of Channel 1 is internally
routed to the input of Channel 2. The link switch disconnects the connection from the XLR input of Channel 2,
but does not disconnect the output of Channel 1 (thus allowing dry and wet outputs).
Features:
• 2-Slot 500 Series Chassis
• Durable Steel Chassis with Clear or Orange Acrylic Sideplate
• XLR I/O
• Link/Cascade Switch
• External Switching Power Supply
• Made in the USA
Specifications:
Power:
+16V, 150mA (per slot)
-16V, 150mA (per slot)
+48V, 13mA (per slot)
Dimensions:
Length: 7.4”
Width: 3.3”
Height: 5.9”
Weight:
Unit weight: 2.2lb (~998g)
Shipping weight: 4.6lb (~2.1kg)
