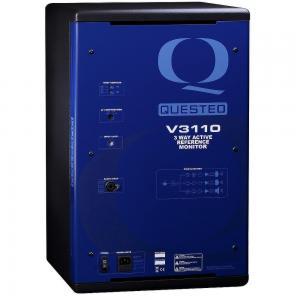

Quested V3110 Active Mid-field Studio Monitor
Designed for use in near to midfield applications, the V3110 is our most powerful self powered monitor and, because of its 1000 watts of class AB and class D amplification, it is one of the most powerful in its class. The three way design of the V3110 and the utilisation of the soft dome mid and high frequency drivers along with the custom 10″ low frequency driver mean that the V3110 truly can deliver for the most demanding of material with a flat response down to 30Hz.
The successor to the VS3208, a favourite with the dance and remix fraternity the V3110 has been able to improve on the low end performance whilst maintaining that precision recognised in the VS3208. Producing a very linear response along with the capability of high SPL the V3110 is also a favourite of the scoring community. Delivering a dynamic and very natural sound stage with a response all the way down to the lower register of a church organ the V3110 is the flagship product of the powered monitors from Quested.
Specifications:
- Size: 380 x 600 x 360mm (w x h x d)
- Weight: 39kg / 86lb
- Driver: Low Frequency 1 x 250mm(10″)
- Mid: 1 x 75mm (3”) soft dome
- High Frequency: soft dome 1 x 28mm (1 1/8″)
- Frequency Response: 34Hz – 20kHz ±2dB / 30Hz – 22kHz -6 dB
- Maximum SPL: 115.5 dB continuous pink noise @ 1m Leq 1 minute. 121.5 dB continuous pink noise per pair @ 1m Leq 1 minute
- INPUT
Connector: XLR3 type-Female
- Impedance: 10k Electronically balanced with RF filters
- Wiring: Pin 1 ground, Pin 2 hot, Pin 3 cold
- Sensitivity: Rear mounted 10 position rotary switch calibrated in 2dB steps
- Minimum sensitivity +4dBu for 100dB SPL @ 1m
- Maximum sensitivity -14dBu for 100 dB SPL @ 1m
- FILTERS
Subsonic: -3dB @ 14Hz, 24dB/oct
- Crossover Points: 650Hz, 2k5H, 24dB/oct.
- User LF EQ: 4 position rear mounted selector to select FLAT for normal use. -9dB and -3dB for cut below 100Hz, +1dB for lift above 80Hz.
- User MF EQ 3 position rear mounted switch to select FLAT for normal use, CUT/LIFT +/-1dB for 650Hz to 2k5Hz.
- User HF EQ 3 position rear mounted switch to select FLAT for normal use, CUT/LIFT +/-1dB for 2k5Hz to 40kHz.
