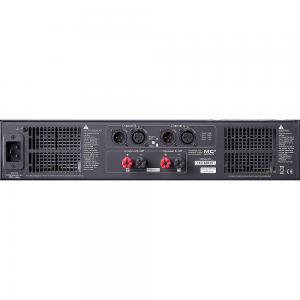

Quested AP950-2 Studio Amplifier
The Quested AP950-2 is a high quality 2-Channel studio amplifier which delivers exceptional sonic performance and power: 950W at 4 Ohms or 475W per channel at 8 Ohms.
It's the perfect choice to drive the passive Quested VH3208 and HQ210 monitors.
Features
- 2 channel class A/B
- 2 ru
- XLR Inputs
- XLR Link Output on Each Channel
- 4-Pole Speakon Outputs
- Sidechain Limiting
TECHNICAL SPECIFICATION
Output power (Watts RMS) per channel
- 8 ohms @ 1 kHz 475
- 4 ohms @ 1 kHz 950
- 2 ohms @ 1 kHz 1550
Mono Bridged
- 8 ohms @ 1 kHz 1900
- 4 ohms @ 1 kHz 3100
THD @ rated power
- 4 ohms 1 kHz <0.007%
- 20Hz-20 kHz <0.03%
Input CMRR >90dB
Hum & Noise -105dB
Gain +32dB
Sensitivity for rated output, 4 ohms +3.5dBu (1.2V)
Damping Factor 1 kHz, 8 ohms >400
Frequency response 20Hz-20kHz +0/-0.5dB
Input impedance (actively balanced) 20k ohms
Dimensions (mm) - 2U 88x482x428
Weight 20.5kgs
Power requirement 230 VAC @ 8.0 amps max, 115 VAC @ 16.0 amps max
