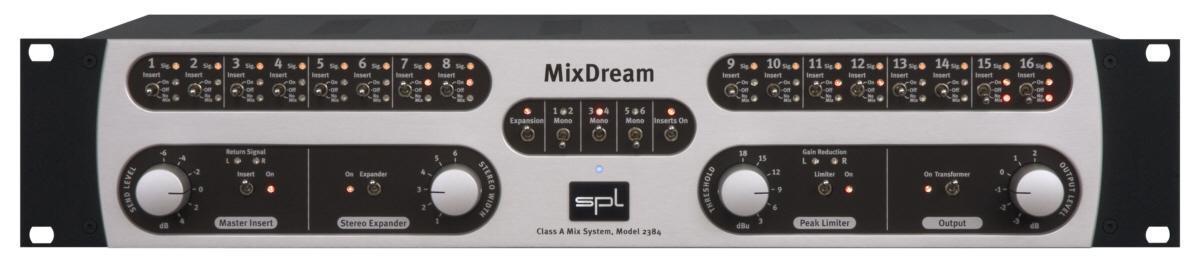

The SPL MixDream is a cascadable, 16-in-2 analog outboard mixer in a 19 inch/2U format. Any DAW or digital console can be expanded with active analog stereo summing and insert functionality.
MixDream advantages
-
High-grade analog summing on just 2U rack space
- Sophisticated, active Class A/60V stages for analog summing in the quality of the best consoles
- 16 balanced inserts allow for integrated analog effects with individual and overall hard bypass relays
- Reduction of A/D conversions (14 A/D conversions can be spared with all inserts connected). All analog tracks can be summed before A/D conversion.
- Channel adjustments and automation (level, panorama etc.) remain controlled from the DAW so the user loses no digital efficiency
-
Lower DAW processor utilization rates
-
The most efficient possible re-sampling of individual tracks with latency free monitoring
-
Surround capable (from up to 3 MixDream units)
-
Channel capacity expandable through linked units
- Sensitive and transparent stereo expansion control
- Analog peak limiter for impressive loudness
- Master inserts and switchable output transformers from Lundahl
- Optimized signal paths, all switching functions via relays
- Proprietary differential amplifiers for each input
- Discrete, exceptionally low-noise power supply
Specifications
Freq. Response: 1Hz-220kHz (+/- 3dB)
THD+N Ratio: -104dB
(20Hz-22kHz, Input +10dBu, all channels active)
Noise Level: -97dBu
(20Hz-22kHz, A-weigted, all channels active)
Max Input Level: +28dBu (@1kHz)
Max Output Level: +28dBu
(@1kHz/THD+N -95dBu)
Dynamic Range: 125dB
(20Hz-22kHz, A-weigted, all channels active)
Crosstalk L/R: 97dB@1kHz
CMRR: 70dB
(@1kHz, +10dBu input level)
Input Impedance: 10kOhm
(for Input 1-16, Expansion, Insert Return)
Output Impedance: 82Ohm
(for Master/Monitor Out w/o transformer, insert send)
Output Impedance: 65Ohm
(for Master/Monitor Out with transformer)
Power consumption: 75W
