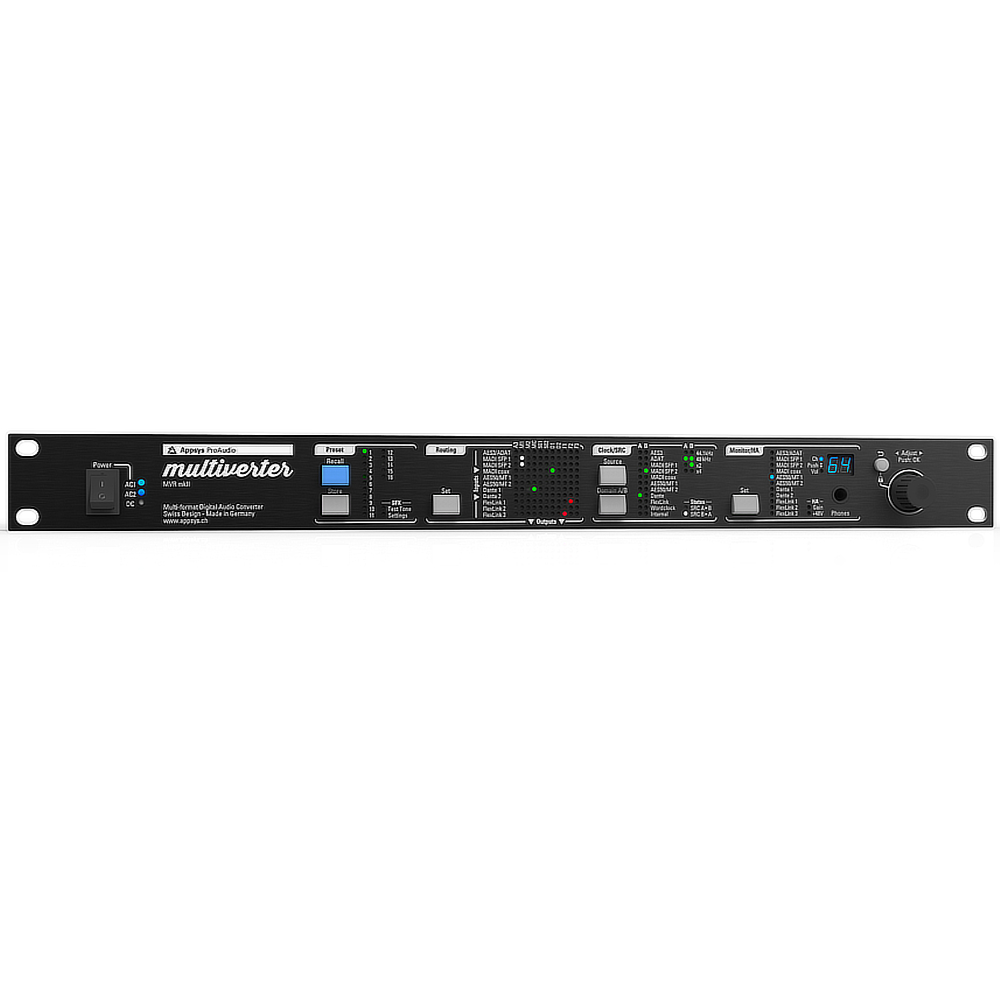

Appsys MVR-64 MK2
Multiverter Digital Format ConverterThe world's most versatile format converter.
704 x 704 Channel Universal Format Converter
with DANTE, MADI, AES/EBU, ADAT, AES50
Swiss Design. Made in Germany
The Swiss Army knife for audio professionals! Convert any digital format to any digital format, all at once! Bring your legacy gear up to date.
The new MVR-64 mkII provides a lot of new features on top of the existing ones. 704x704 routing matrix, 11x11 digital interfaces conversion, triple redundant power supply, sample-rate conversion between any interfaces using the SRC-64 plugin module, remote control vis network or USB, headphones output and much more. If this is not enough, the device can be extented with devices from the FlexiVerter series, e.g. more ADAT/AES3, Dante or AVB channels
Key features
- 704x704 channels routing matrix with channel-wise routing/splitting between interfaces NEW
- Bi-directional sample rate conversion up to 128 channels using the SRC-64 plug-in module
- Fully remote-controllable via Web, Web-over-USB and command line (telnet/UART) NEW
- Headamp remote control for MIDAS®/Behringer® stageboxes NEW
- Integrated headphone amp to monitor any incoming signal
- MIDI and RS485 embedding/de-embedding from MIDI/RS485 jacks into MADI streams (RME™/DirectOut™-compatible)
Inputs / Outputs
- Dante/AES67 (two ports/integrated switch)
- 16 x AES/EBU I/O (DB-25) NEW
- 4 x ADAT I/O or SPDIF/AES3 optical capable
- MADI SFP (2x) for optical Multimode/Singlemode NEW
- MADI coaxial
- MADI-TP (up to two ports) – int. switch to AES50
- AES50 (up to two ports) – int. switch to MADI TP
- USB C port for Remote control
- Separate network control port NEW
- up to 192 extra channels via Flexiverter breakout boxes connected to the FlexLink port
- Triple-redundant power supply (2x 90-240VAC, 1x 9-18VDC)
- MIDI I/O
