Merging Technologies Horus

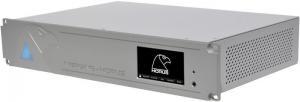

Merging Technologies Horus Base Unit
includes 1x MADI I/O (coaxial and optical), 24x AES/EBU I/O (12 pairs on 3x DB25), Ravenna/AES67 I/O, 6x analogue slots.

Separate optional input and output cards allow you to customize your interface to exactly what you need for each application. Choose from standard, 192kHz capable or extended use DXD/DSD capable Inputs and outputs.

Horus might be one of the worlds most sonically transparent Mic Pres and phenomenal AD/DA boxes on the market

Horus could very well be the ultimate answer to anyone wanting Analogue/AES/MADI interconnectivity in the room they work in. It is a revolution in bang for buck technology and is set to become the defacto audio I/O device for the media industries.

But in reality Horus is much, much more:

Using RAVENNA technology, Horus brings to the table the possibility to interconnect your entire facility using nothing more than a standard RJ45 connector. Once in RAVENNA mode, the Horus box simply becomes a node on a network, one that can be instantly called to be an input, an output, or a combination of both. Whether you are in broadcast, TV and film, CD/SACD mastering, studio or live music recording, live events, theatres, museums, cruise ships, or any industry where you need audio to get from A to B (or A to B and C, or C to A and part of D, E, and F!).

HORUS Key Features

• Up to176 inputs and 178 outputs at 1FS
• Works from 44.1kHz to 192kHz (Premium up to DXD/DSD256
• Signal routing from any input to any combination of outputs
• Works as MADI/AES AD/DA for standard operation... AND
• Works in Ravenna mode to deliver all I/O through the network
• Front panel touch screen for local access
• Front panel Stereo Headphone monitoring
• Browser-based remote access using any web enabled device
• Dual redundant power supply option
• Modular design for analog and additional Digital I/O
• Near-zero latency from in to out (less than 1ms)

Using standard network connections, switches and connectors, Horus and other RAVENNA-enabled devices can be placed on a network and interconnected

Standard Connections (Base Unit)

• 64 MADI I/O (Optical or Coaxial)
• 24 AES/EBU I/O (on DSub 25)
• RAVENNA I/O (on RJ45)
• SYNC - LTC/MTC/VideoRef/Wck (requires CON-D15-VTC cable)
• 6 option slots for AD8D/AD8DP and DA8/DA8P cards
• 1 option slot for MADI expansion option

Optional Additions

• AKD8D and AKD8DP standard and premium Mic/Line Input cards
• DA8 and DA8P standard and premium Line Output cards
• ADA8 Module - 8 channels of AD and 8 channels of DA
• PT64 Module - allows interfacing for Pro Tools HD or HDX
• MADI expansion card delivering 64 additional MADI channels
• Redundant power supply option
• RS-422 and GPIO option card (In Development)

Notes

Premium and Standard option cards can be mixed in a Horus unit

Modular by Design

The ability to choose the amount of I/O that each Horus unit is capable of saves money without diminishing the level of quality. Choose to add any of the option modules to your Horus and create the ultimate audio interface for your studio, whatever the size. Once the Horus is fully loaded with option cards, it is capable of achieving an astonishing, simultaneous 176 inputs and 178 outputs at 1FS.
