Avid Pro Tools MTRX II
Overview

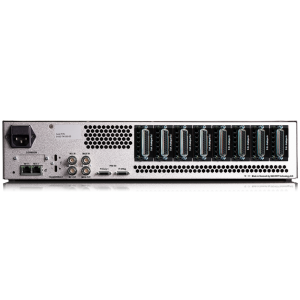

Avid Pro Tools MTRX II
Arriving Summer 2023!!
Contact us for a custom configuration and pre-order yours today!
Designed for Pro Tools HDX and other DAWs, Pro Tools MTRX II builds on the versatility of its predecessor, offering greater I/O, routing, and monitoring flexibility. Streamline your studio with a single interface that enables you to replace multiple devices, connect anything to everything, and tune any room in your facility to get the best sound possible.
Pro Tools MTRX II at a glance
- Streamline your studio—Get 64 channels of built-in DigiLink I/O, 256 Dante channels, and 64 MADI channels, plus eight option card slots and a Thunderbolt 3 option slot in a single interface
- Get unparalleled sound clarity—Capture and output audio without any coloration—exactly as the sources sound—with impeccably clean, transparent, and highly detailed AD/DA conversion
- Monitor audio in more ways—Gain flexibility with integrated SPQ Speaker Processing, DADman Pro | Mon monitor control, and a 512 x 64 summing mixer for full Dolby Atmos theatrical monitoring
- Feed any input to any output—Route, split, and patch audio across multiple devices and rooms in your facility with the massive 4,096 x 4,096 matrix router
- Expand your workflow—Work with multiple DAWs, connect to Pro Tools | HDX and/or a Mac or PC, route audio over IP with Dante, and add and reconfigure I/O as needed, enabling new creative possibilities
The MTRX II can be used as a DigiLink audio interface with Pro Tools HDX systems and/or a Thunderbolt audio interface with the Thunderbolt 3 option module installed.
WHAT’S INCLUDED
- Pro Tools | MTRX II base unit (with eight empty card slots, ready to be configured)
- Pro | Mon 3 monitoring control
- DADman software
- AC power cable
Pro Tools | MTRX II comes with 64 channels of built-in DigiLink I/O, 256 channels of Dante, 64 channels of MADI, and SPQ Speaker Processing for monitor control in the base unit; you can further customize the interface with an array of analog and/or digital I/O option cards to meet your needs.
These Optional Cards available (please contact us for pricing)
AD Card
Adds eight channels of line-level analog inputs
2 Mic/Line AD Card
Adds two channels of analog inputs and mic preamps with relay-based gain circuit—an ideal low-cost option for talkback and tracking
8 Mic/Line AD Card
Adds eight channels of analog inputs and mic preamps with relay-based gain circuit
DA Card
Adds eight channels of line-level analog outputs with an output level control
DigiLink I/O Card
Adds 64 channels of DigiLink I/O through two DigiLink Mini ports
Thunderbolt 3 Card
Enables 256 channels of native low-latency I/O connectivity and routing between multiple Core Audio-based DAWs, including Pro Tools
AES3 I/O Card
Adds eight line AES3 inputs and outputs (16 channels), with built-in sample rate conversion
Dual SDI/HD/3G Card
Adds 2 x 16 channels of SDI/HD/3G connections (embed/de-embed) with built-in sample rate conversion
Dante Card
Adds up to 128 channels of high-density, low-latency digital audio using Dante (128 channels at 41.1/48 kHz, 64 channels at 88.2/96 kHz, or 32 channels at 176.4/192 kHz)
MADI Card
Adds 128 channels of MADI inputs and outputs through two optical SFP ports
MADI Module for Base Unit
Adds an additional one or two 64-channel I/O coaxial or optical MADI module to the chassis
