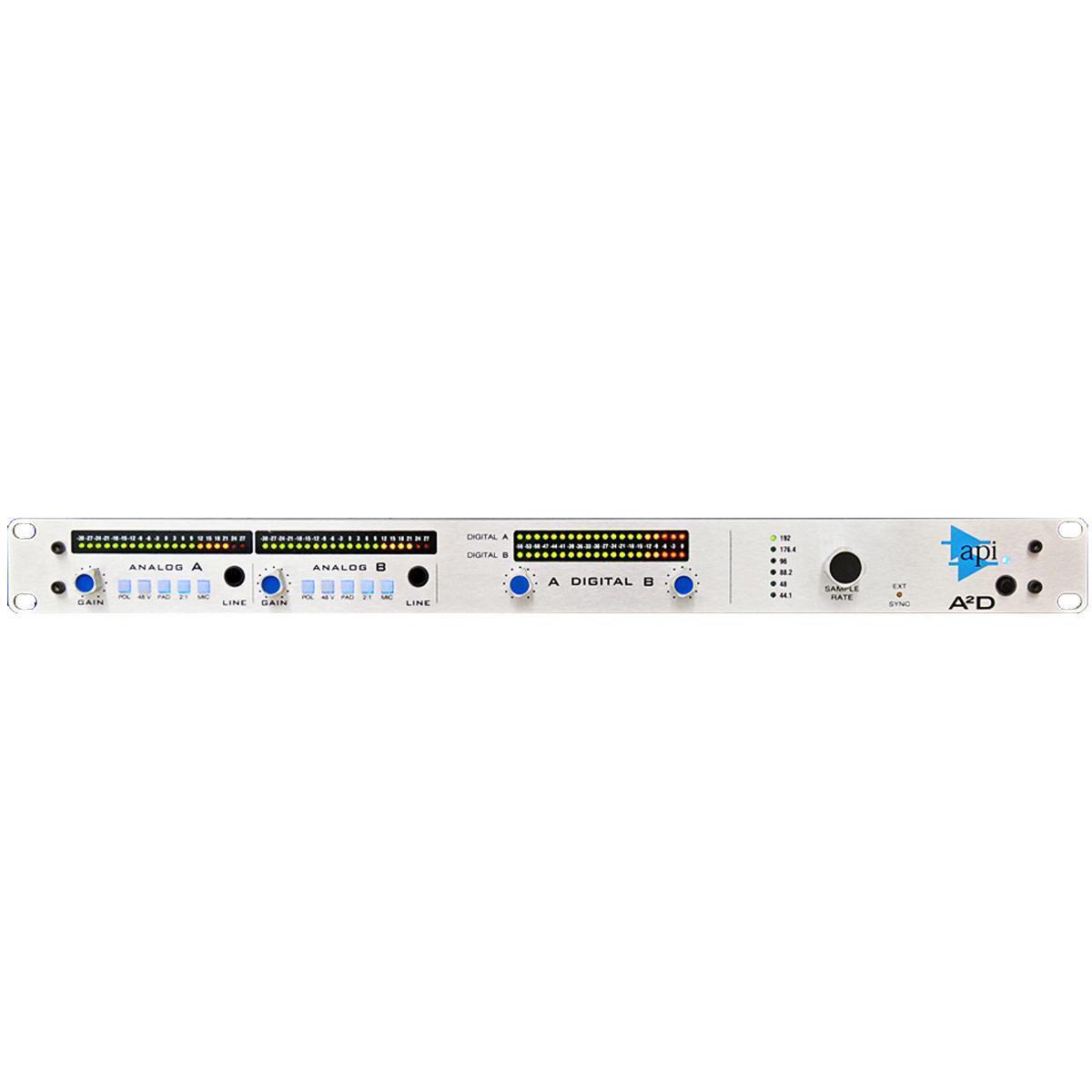

API Audio A2D
Rackmount 2 Channel Discrete 312 preamp with propietary API analog to digital converters and External Super Clock Input.
NO LONGER AVAILABLE
The A2D represents a landmark achievement for API; it is the first product ever produced by the company with an integrated digital output. Recognizing the desire for a high quality solution to raise microphone signals to a workable line level, we engineered one of our most popular mic preamp designs into an enclosure with our new proprietary analog to digital conversion. The result is a complete package - a pair of superb mic preamps feeding an A/D section with a set of standard digital interface outputs, multiple sample-rate choices, and internal or external clock options. Precise control of both the analog gain as well as the level feeding the digital section means that the mic signal can be maintained super-clean if desired, or driven harder on the analog side for that whallop and impact that can only be achieved by driving the transformer into saturation for that historic API sound!
The A2D analog section consists of the circuitry contained in two API 312 mic preamps, or one half of the popular 3124 quad mic preamp rack product. A level control pot with an expanded 20-segment metering system shows precise mic gain levels. Control switches include polarity, 48v phantom power, input pad, 2:1 transformer routing, and Mic/Line select. Each analog input contains a balanced low-level XLR connector and a high-level line input on a 1/4 inch jack.
Features:
