Empirical Labs EL8-XXX
30th Anniversary Limited Edition Distressor
Celebrate three decades of dynamic dominance with the EL8-XXX, a precision-engineered tribute to the compressor that redefined the modern studio. This 30th Anniversary Edition blends the legendary versatility of the EL8-X with exclusive vintage-inspired enhancements and upgraded sonics.
The Ultimate Distressor Evolution
The EL8-XXX comes standard with the highly sought-after Stereo Image Link and British Mode (all-buttons-in style compression) found on the EL8-X. However, the XXX edition pushes the boundaries further:
- Custom Triad HS-56 Input Transformer: We’ve integrated the award-winning Triad transformer at the input stage. Known for its incredible ability to inject "size" and clarity into low-end content, it provides a massive, high-fidelity foundation for your signal.
- Enhanced Saturation Profile: By utilizing specific discrete components and reducing input impedance to 600 ohms, the XXX model is designed to reach saturation earlier than the classic EL8, offering a creamier, more immediate harmonic character.

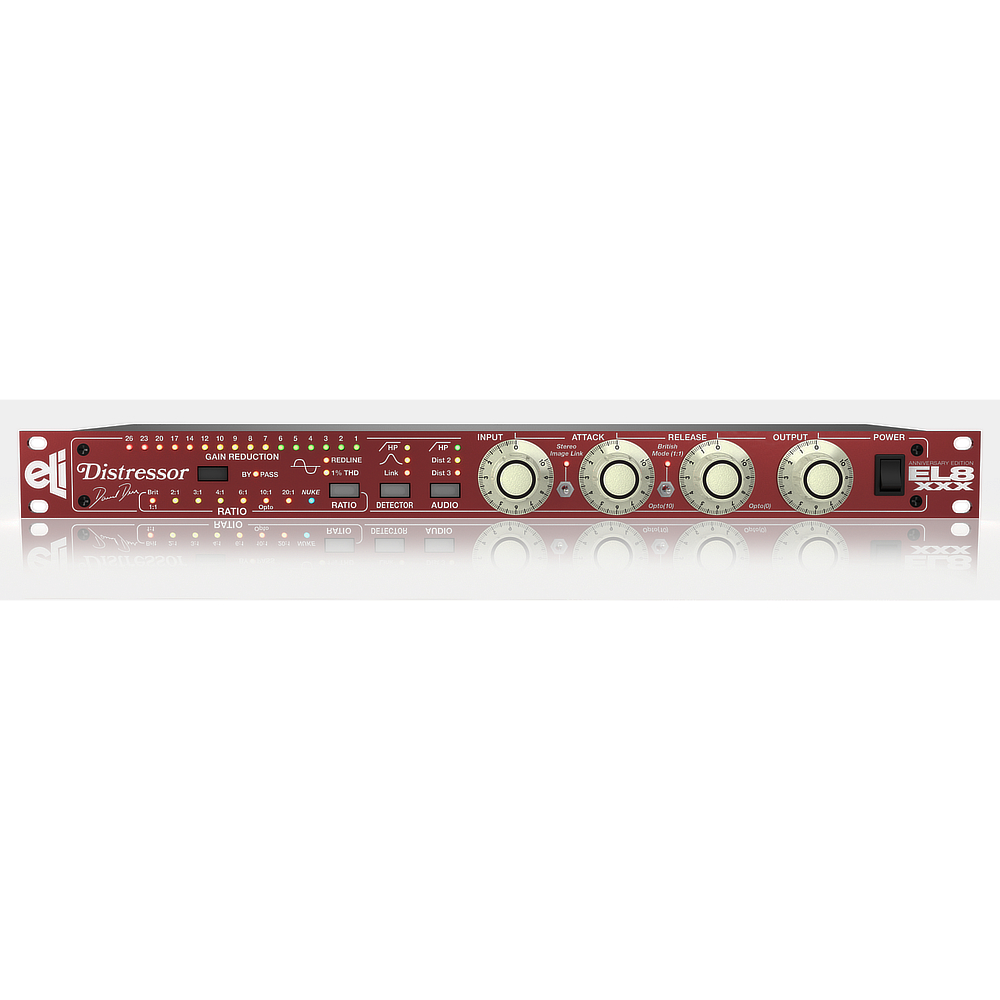

- Prototype Heritage: The front panel features the original "Distressor" logo, pulled directly from Dave Derr’s 1994 prototype, honoring the unit's 30-year legacy.
Technical Specifications
- Frequency Response: 2 Hz to 160 kHz (+0, -3 dB) in clean mode; shaped response in Dist 2 & 3.
- Dynamic Range: 110 dB (1:1 mode); >100 dB S/N in Dist 3 mode.
- Distortion Range: .02% to 20% (dependent on mode and release settings).
- Time Constants: Attack (50uS – 50mS); Release (.05s to 3.5s in normal modes; up to 20s in 10:1 Opto).

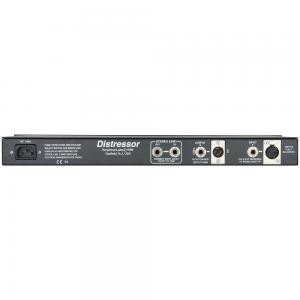

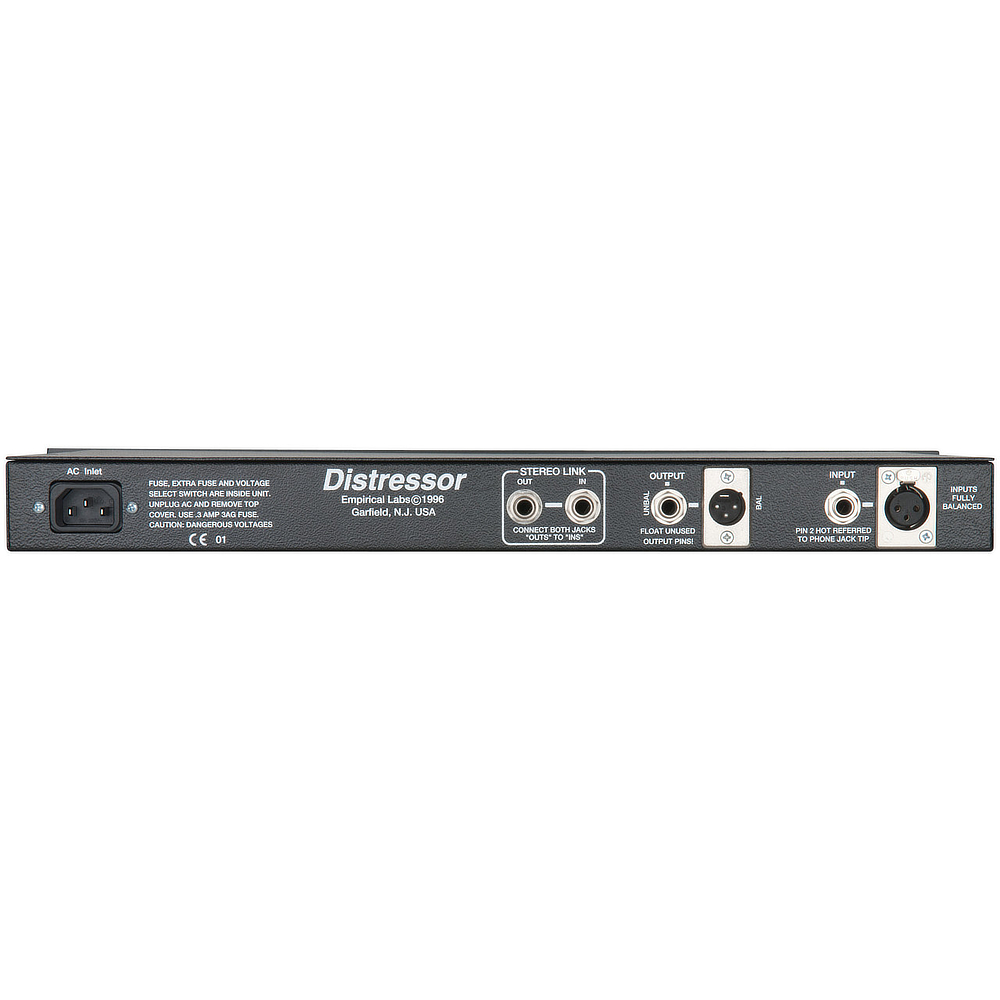

- I/O: DC Coupled inputs and outputs.
- Chassis: 1U Rackmount (1.75″ x 19″ x 10″).
- Weight: 12.1 lbs (Mono unit).
