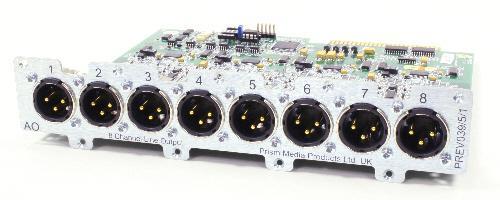

| Connections | Electronically balanced outputs, male XLRs |
| Differential output impedance | 50 Ohm |
| Full-scale output range (software-controlled) | +5dBu..+24dBu in 1dBu steps, trims in 0.05dBu steps |
| Absolute gain accuracy | +/-0.05dB |
| Output balance | 54dB |
| THD+N: (997Hz, -1dBFS) | -102dB (0.0007%) typical |
| Dynamic range: (997Hz, -60dBFS) | 108dB |
| IMD (SMPTE/DIN, 60Hz@-3dBFS & 7kHz@-12dBFS) | <-94dB |
| Maximum aharmonic spurium (997Hz @ -1dBFS) | <-130dBFS |
| Frequency response: fs=192kHz | -0.05dB: 5.2Hz..37.2kHz; -3dB: 1.4Hz..74.4kHz |
| Frequency response: fs=96kHz | -0.05dB: 5.1Hz..38.9kHz; -3dB: 1.4Hz..47.4kHz |
| Frequency response: fs=48kHz | -0.05dB: 5.1Hz..22.6kHz; -3dB: 1.4Hz..23.9kHz |
| Frequency response: fs=44.1kHz | -0.05dB: 5Hz..20.8kHz; -3dB: 1.4Hz..22.0kHz |
| Passband ripple | <0.005dB |
| Inter-channel phase difference | <0.02 degrees="" td=""> |
| Channel separation | 1kHz: >115dB; 20Hz..20kHz: >110dB |
| Group delay (AES3 to output) | 49.5/fs |
