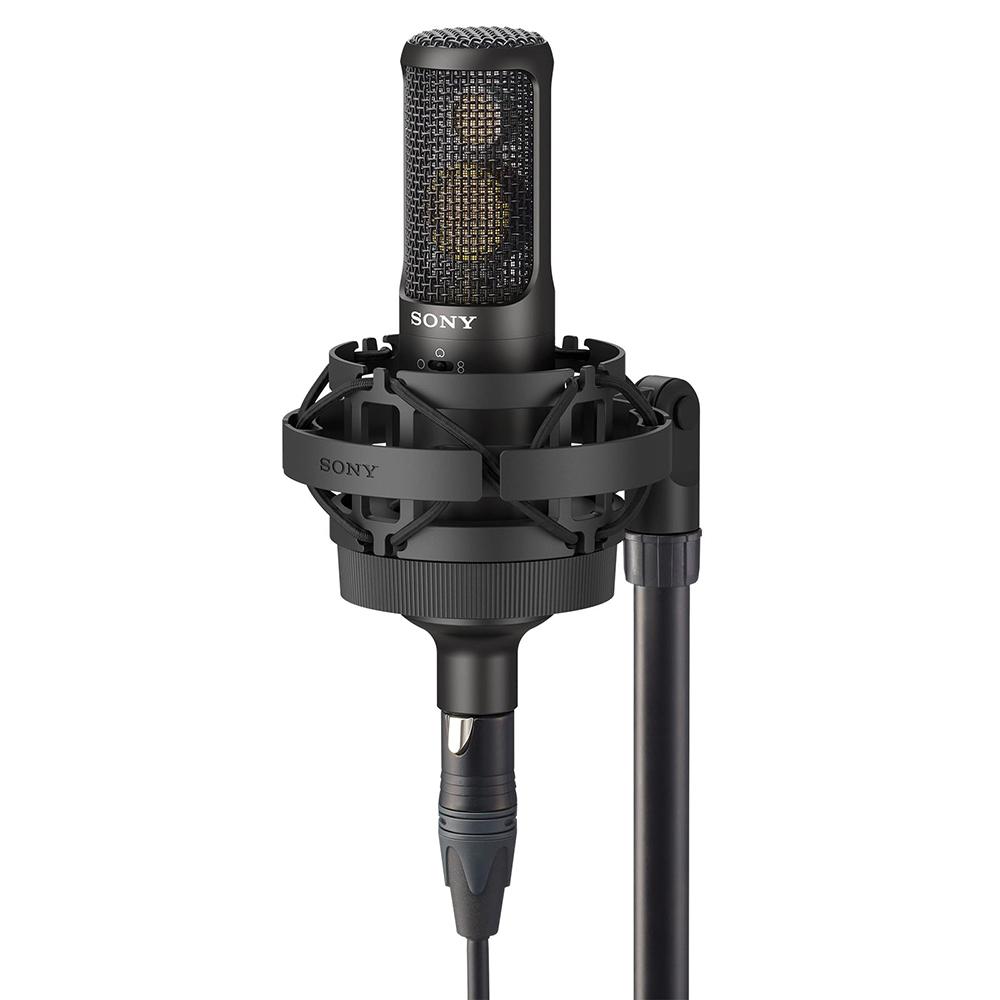

Sony C-100

Sony C-100

Hi-Res Condenser Mic (Side Address) – Ideal for Vocal Applications

• Supports Hi-Res Recording (~50kHz)in an ultra-compact package
• Two-way structure incorporates newly developed capsules with variable directivity that deliver a wide frequency response of 20Hz to 50kHz
• Selectable pick-up pattern (Omni/Uni/Bi) supports a wide variety of recording applications
• Two-part metallic body structure succeeded from the C-800G microphone prevents acoustic vibration resulting in low noise and clear sound
• Low-Cut filter eliminates low-frequency noise and proximity effect
• -10dB pad switch provides added headroom

ProSound News (Feb 1, 2018)

"...Sony’s attention to detail and focused effort to develop this product was worth it. This is not just a great mic; it’s superb. Whether you’re capturing high resolution or not, the C-100 will undoubtedly find its way into many mic collections."

Specifications

General Type: 2 Way Microphone (Condenser + Electret condenser)
Power supply: External power supply operation 44 V to 52 V DC (IEC 61938 P48)
Power consumption: Less than 4.5 mA
Output connector: XLR-3-12C Type
Dimensions: 40 mm dia. × 175 mm (1.57 in. dia. × 6.89 in.)
Mass Approx.: 290 g (10.2 oz)

Supplied accessories:

• Cradle suspension
• Wind screen
• Stand adaptor (W3/8 - NS5/8)
• Carrying case (1)
• Operating instructions
• Warranty card

Performance

Frequency response: 20 Hz - 50,000 Hz
Directivity: Uni-directional / Omni-directional / Bi-directional (switchable)
Output impedance: 90 Ω ±15%, balanced

Sensitivity:

• -31 dB (Uni-directional)
• -37 dB (Omni-directional)
• -35 dB (Bi-directional)
• (deviation±3 dB)
• (0 dB=1 V/Pa, 1 kHz)

Inherent noise:

• Less than 19 dB SPL (Uni-directional)
• Less than 24 dB SPL (Omni-directional)
• Less than 22 dB SPL (Bi-directional)
• (0 dB=2 × 10-5 Pa)
• (IEC 61672-1 A-Weighted, 1 kHz, 1 Pa)

Maximum input sound pressure level

• More than 132 dB SPL (Uni-directional)
• More than 138 dB SPL (Omni-directional)
• More than 136 dB SPL (Bi-directional)
• (output level for 1% waveform distortion at 1 kHz, converted into
• equivalent input sound pressure level: 0 dB=2 × 10-5 Pa)

Dynamic range:

• More than 113 dB (Uni-directional)
• More than 114 dB (Omni-directional)
• More than 114 dB (Bi-directional)
• PAD 0 dB/-10 dB (switchable)
• LOW CUT filter Flat/70 Hz (switchable)

IEC = International Electrotechnical Commission
Design and specifications are subject to change without notice.
