Neumann M49 V

Neumann M49 V

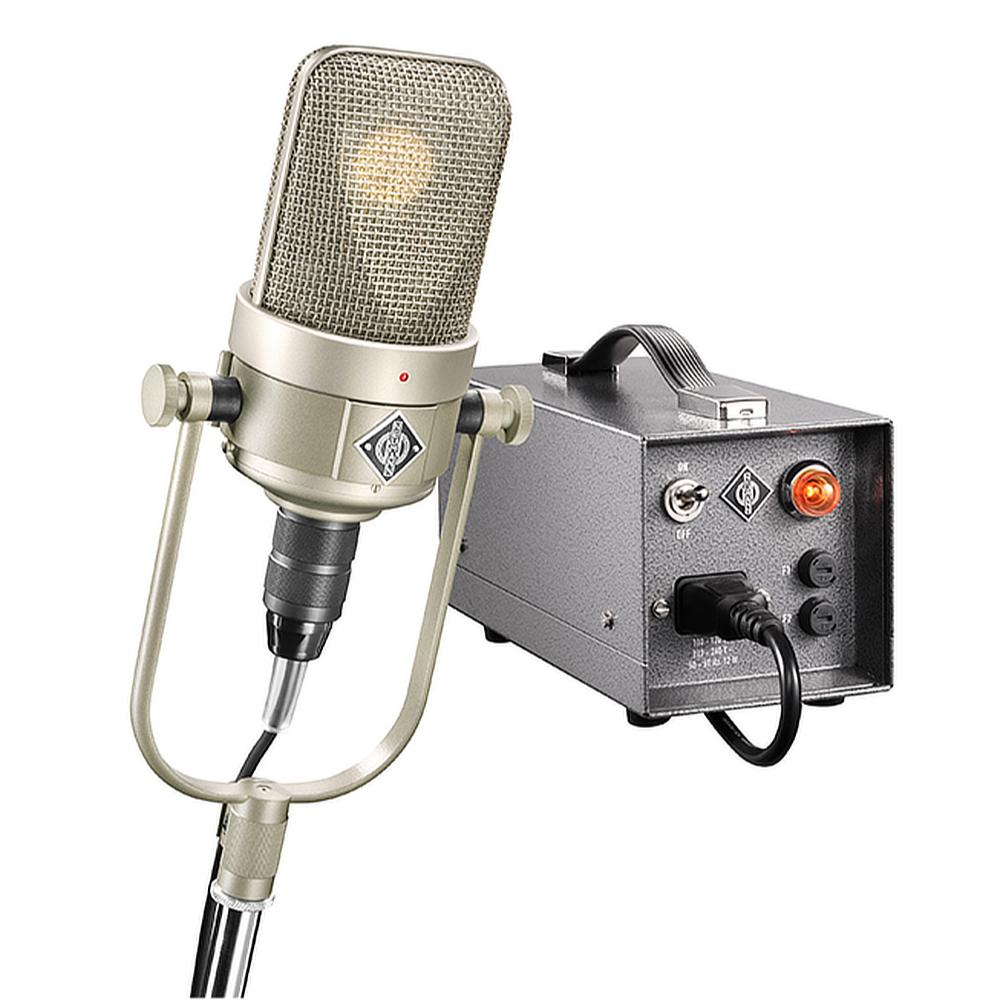

Made to original specifications using archived documentation, the M 49 V Set Large-Diaphragm Tube Microphone is a reissue of the legendary M 49 mic with detail improvements. After years of trials and tests, the engineers at Neumann came up with a microphone considered to be acoustically identical to the historic version, even in direct A/B comparison. A superb vocal microphone for male and female voices, but also versatile enough for all types of instruments, the M 49 V continues to offer the same revolutionary studio technology with its continuously variable, remote-switchable polar pattern, delivering that incomparably full and silky, tube-driven sound, which has made its mark on countless recordings to this day.

Features

Reissue of the classic M49 desgned to original specifications using archived documentation
New power supply/pattern control unit automatically adapts to mains voltage
Acoustic operating principle: pressure gradient transducer
Polar pattern: continuously variable (omnidirectional, cardioid, figure-8)
Frequency response: 40Hz–16kHz
Sensitivity: 6.5/8/10 mV/Pa ±1dB
Rated impedance: 200 ohms
Rated load impedance: 1000 ohms
Signal-to-noise ratio, CCIR: 62/64/64dB
Signal-to-noise ratio, A-weighted: 73/74/75dB
Equivalent noise level, CCIR: 32/30/30dB
Equivalent noise level, A-weighted: 21/20/19dB-A
Maximum SPL for THD 0.5%: 125dB (cardioid)
Maximum output voltage: 300 mV
Vacuum tube type: hand selected triode
Plate voltage: +120 V ±2%
Plate current: ≤1 mA
Heater voltage: +6.3 V ±2%
Heater current: ≤200 mA
Required connector: 7-pin connector
Power supply: 100–120 V or 220–240 V, Max. 12 W consumption
Fuse: ⌀ 5mm × 20mm, 500 mA, slow-blow
Handcrafted and hand soldered by Neumann engineers in Germany

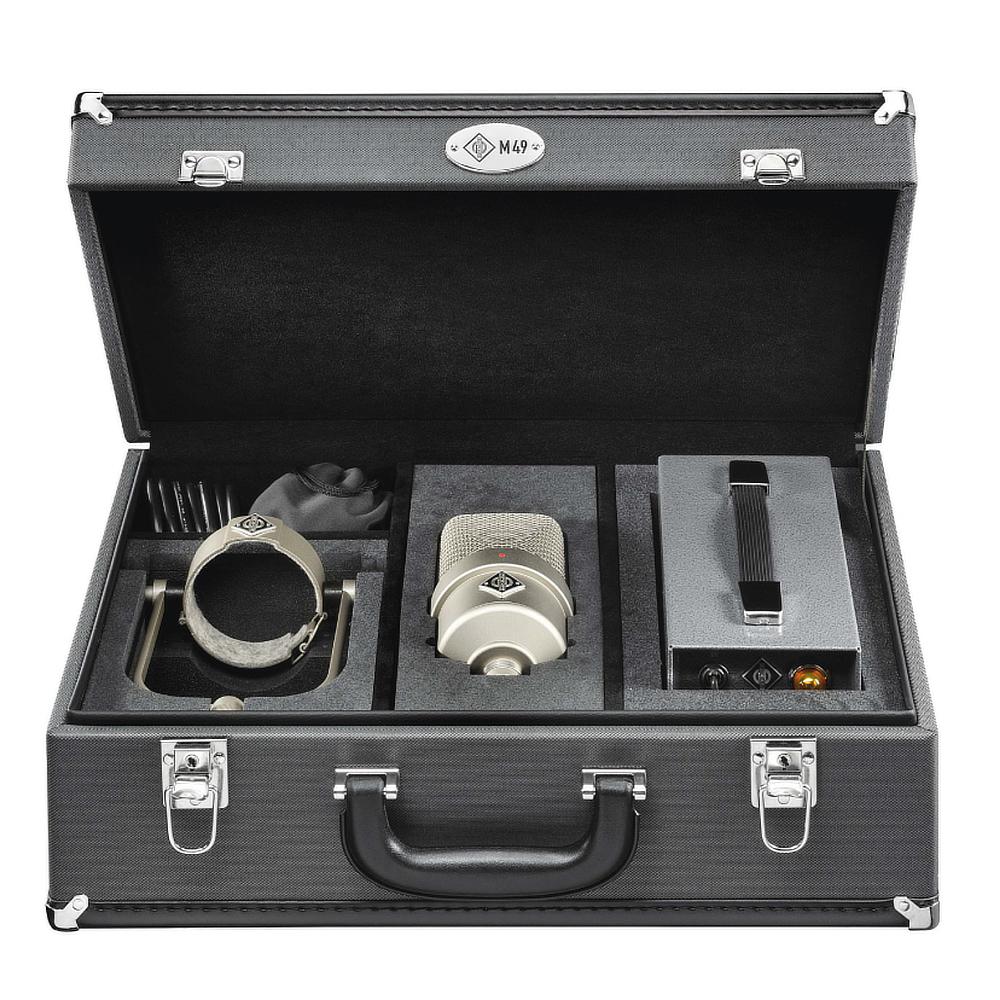

Includes NM V power supply/pattern control unit, KC 5 cable, and MZ 49 A shockmount
