Peluso Microphones P-67

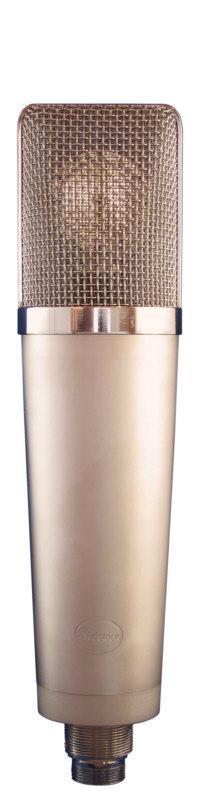

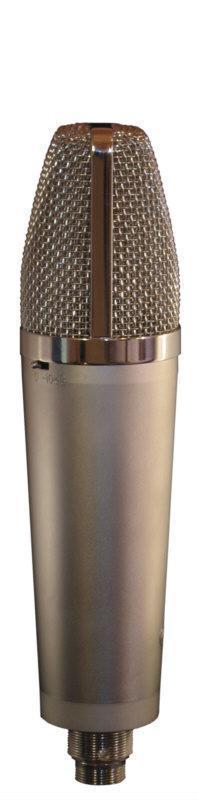

The Peluso Microphones P-67 is a Vacuum Tube Microphone that is an accurate recreation of the revered Neumann U 67.

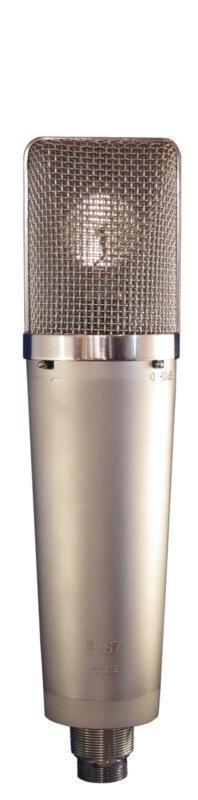

Produced from 1960 to 1971 the legendary U-67 is a key part of the classic sound of albums of the late 60s and early 70s. The shape of the dual mesh head grille and glass EF style pentode vacuum tube are part of what enables the P-67 to very accurately achieve the sonic qualities of a U-67. The P-67's capsule has dual 34 mm gold-sputtered diaphragms. The P-67 features two switches on the microphone body. A low frequency roll-off switch decreases the low-end gain and can counter the proximity effect of close range vocals. A -10dB pad switch for lower gain can be used with close range brass, guitar cabinets, drums or other high level sources. The P-67 is a highly functional and versatile microphone. Professional engineers know the "67", ask anyone.
The P-67 is paired with the Peluso MX-56 power supply. The dual sided capsule in the P-67 enables the power supply to feature 9 polar patterns in an array from omni-directional to cardioid to figure eight.
The P-67 features our heavy-duty 8-pin screw on cable connector. The large diameter pins in the screw on connector give a tight and secure cable connection designed to perform for a lifetime of use.
Acoustically matched pairs available upon special request.

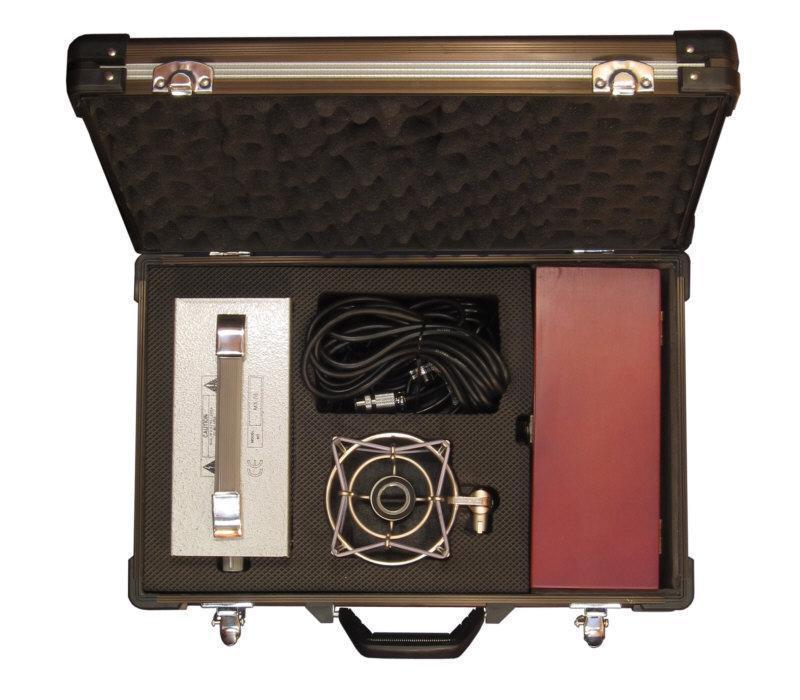

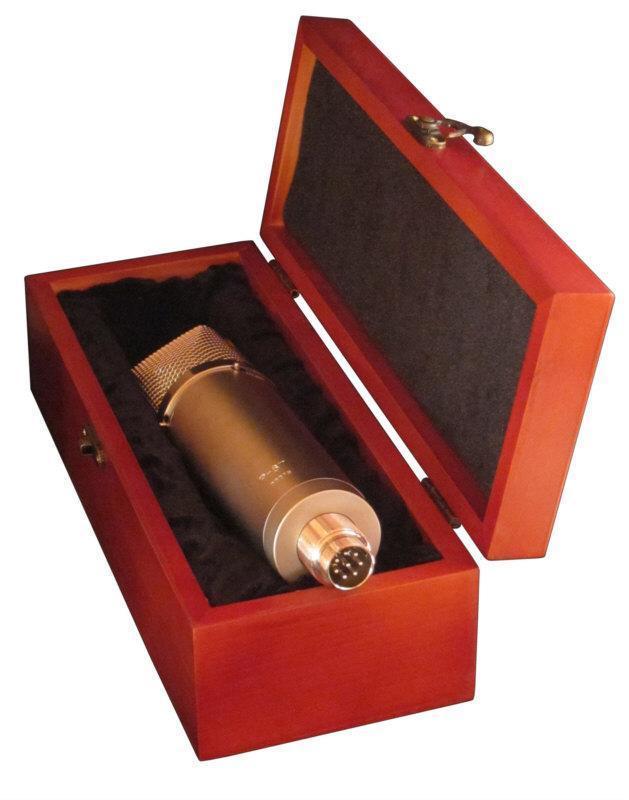

Microphone kit comes as a complete system including: P-67 Microphone in a Wood Box, Power Supply, New-style 8-Pin Screw on Cable Assembly, and a Shock Mount all packed in a Flight Case.
Technical Data
- Capsule Type: Condenser Pressure Gradient w/ 34mm capsule
- Frequency Range: 20Hz/20Khz
- Polar Pattern: 9 - Switchable from omni- to bi-directional
- Sensitivity: 18 mv/pa
- Impedance: 200 ohms
- SPL: 148 dB with 10 dB pad engaged
- Equivalent Noise: 14 dB(A)
- Tube Type: EF95 (6AK5, 6J1, 5654)
- Power Requirements: Dedicated Power Supply, 115V or 230V AC
- Size: 56mm x 205 mm
- Weight: 600 g
