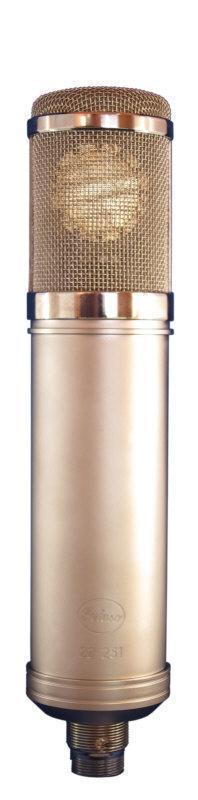

Peluso Microphones 22 251
The Peluso Microphones 22 251 is inspired by and styled after the vintage Telefunken ELA M 251. It has the additional feature of 9 polar patterns which is controlled from the power supply. It captures the nuances of the original 251 sound.
The Peluso 22 251 employs a dual sided edge-terminated 34mm gold-coated Mylar capsule and a 5744WB subminiature glass triode tube. The circuitry and transformer have been designed to match the vintage "251". Whether you're micing snare drums or steel guitars, violins or vocals, the 22 251 will provide great results.
The 22 251 is paired with the Peluso MX-56 power supply. The dual sided capsule in the 22 251 enables the power supply to feature 9 polar patterns in an array from omni-directional to cardioid to figure eight.
The 22 251 features our heavy-duty 8-pin screw on cable connector. The large diameter pins in the screw on connector give a tight and secure cable connection designed to perform for a lifetime of use.
Acoustically matched pairs available upon special request.

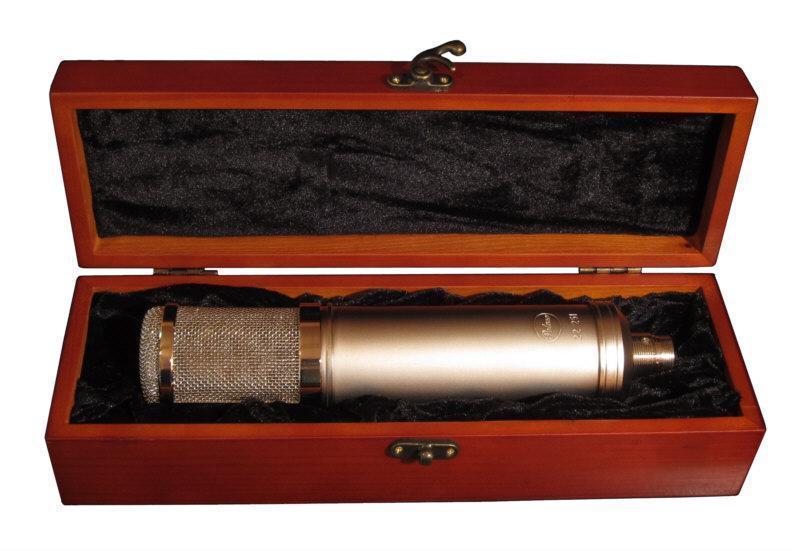

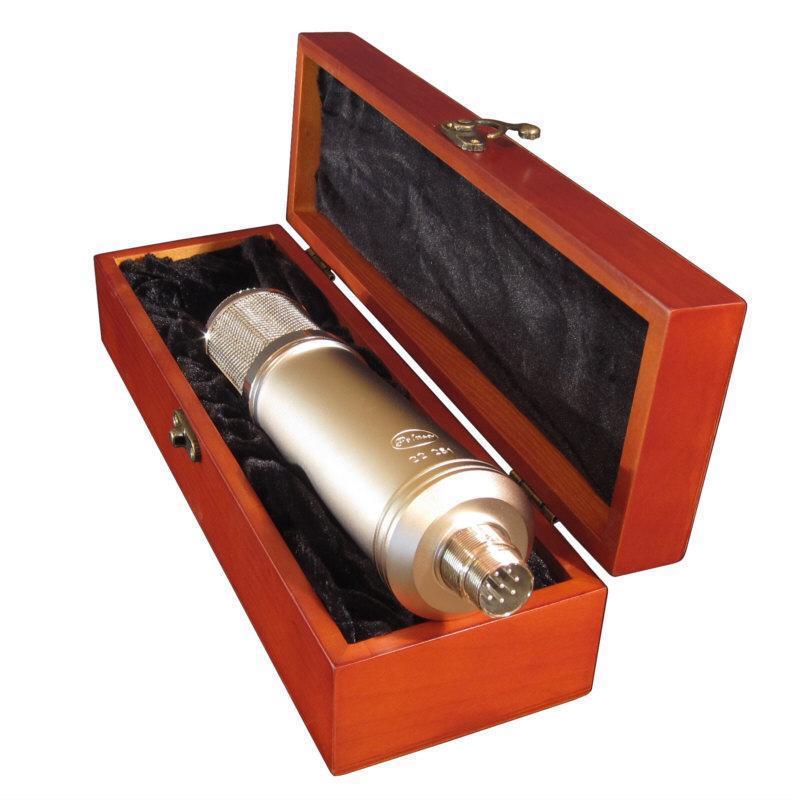

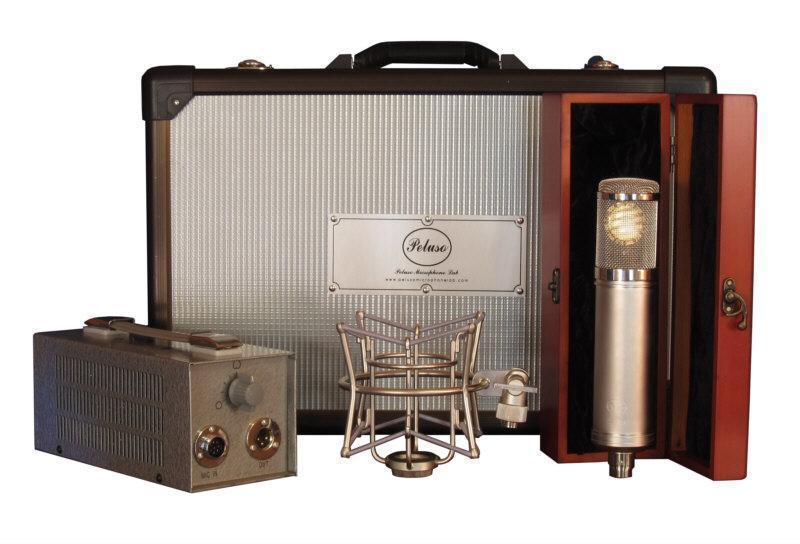

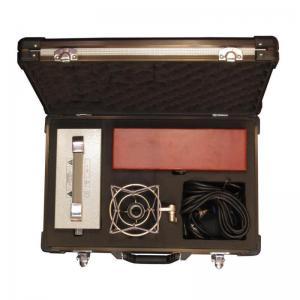

Microphone kit comes as a complete system including: 22 251 Microphone in a Wood Box, MX-56 Power Supply, New-style 8-Pin Screw on Cable Assembly, and a Shock Mount all packed in a Flight Case.
Technical Data
- Capsule Type: Condenser Pressure Gradient w/ 34mm edge-terminated capsule
- Frequency Range: 20Hz/24Khz
- Polar Pattern: 9 - Switchable from omni- to bi-directional
- Sensitivity: 14 mv/pa
- Impedance: 50/200 ohms
- SPL: 142 dB
- Equivalent Noise: 12 dB (A)
- Tube Type: 5744WB
- Power Requirements: Dedicated Power Supply, 115V or 230V AC
- Size: 52mm x 225 mm
- Weight: 620 g
PELUSO MICROPHONE LAB THREE YEAR LIMITED WARRANTY
PELUSO MICROPHONE LAB warrants that each product is free from defects in material and workmanship and agrees to repair or replace any part of the product which under normal installation and use discloses such defect, provided the product is delivered through the dealer or by the purchaser to PELUSO MICROPHONE LAB intact, for examination, with all transportation charges prepaid, and provided that such examination discloses in the judgment of PELUSO MICROPHONE LAB that it is thus defective. This warranty does not extend to any parts which have been subjected to misuse, abuse, neglect, accident, incorrect wiring, improper installation, or use in violation of instructions furnished by us nor to any PELUSO MICROPHONE LAB product which may have been tampered with, altered or repaired outside of PELUSO MICROPHONE LAB Authorized Service Centers. This warranty is in lieu of all other warranties expressed or implied, and no one is authorized to assume any liability on behalf of PELUSO MICROPHONE LAB, or impose any obligation on it in connection with the sale of any product other than as outlined above. This warranty is conditioned on and becomes effective only after the purchaser returns the detachable card, properly filled out, to PELUSO MICROPHONE LAB service department within fourteen (14) days after date of delivery to purchaser.
