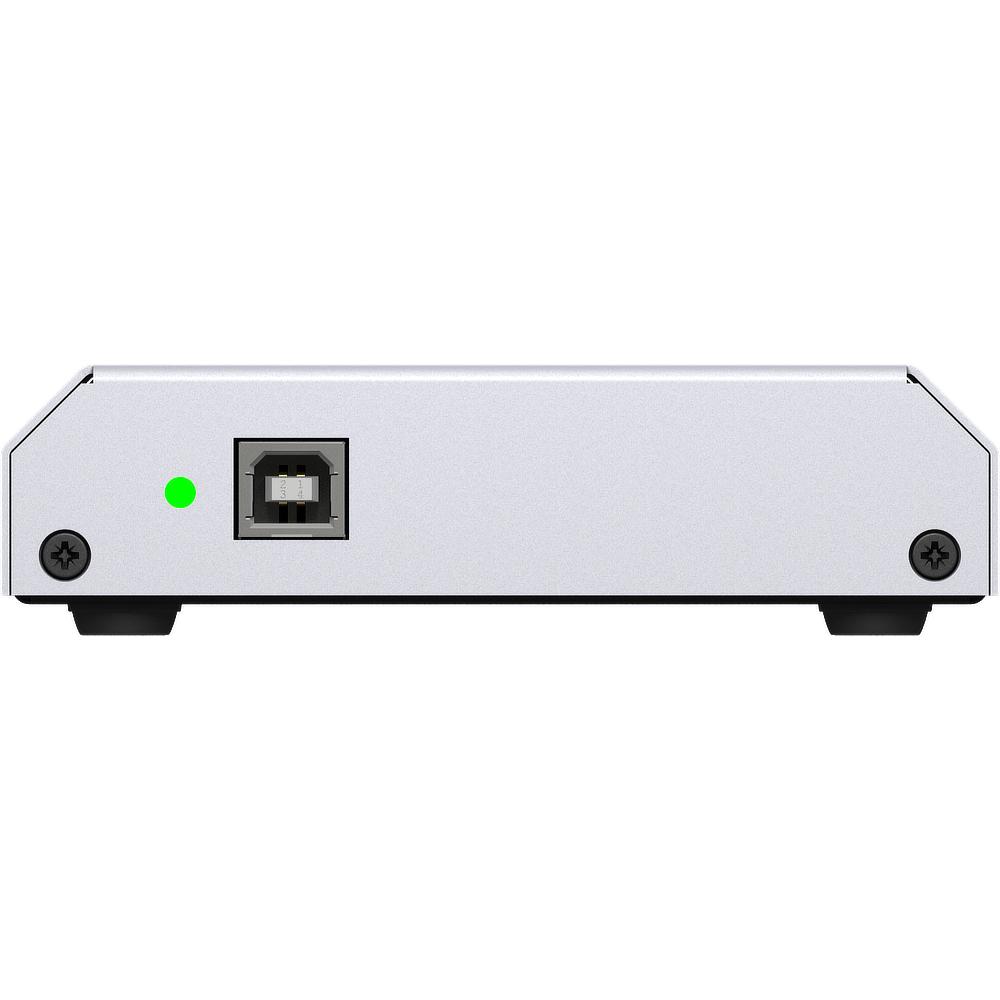

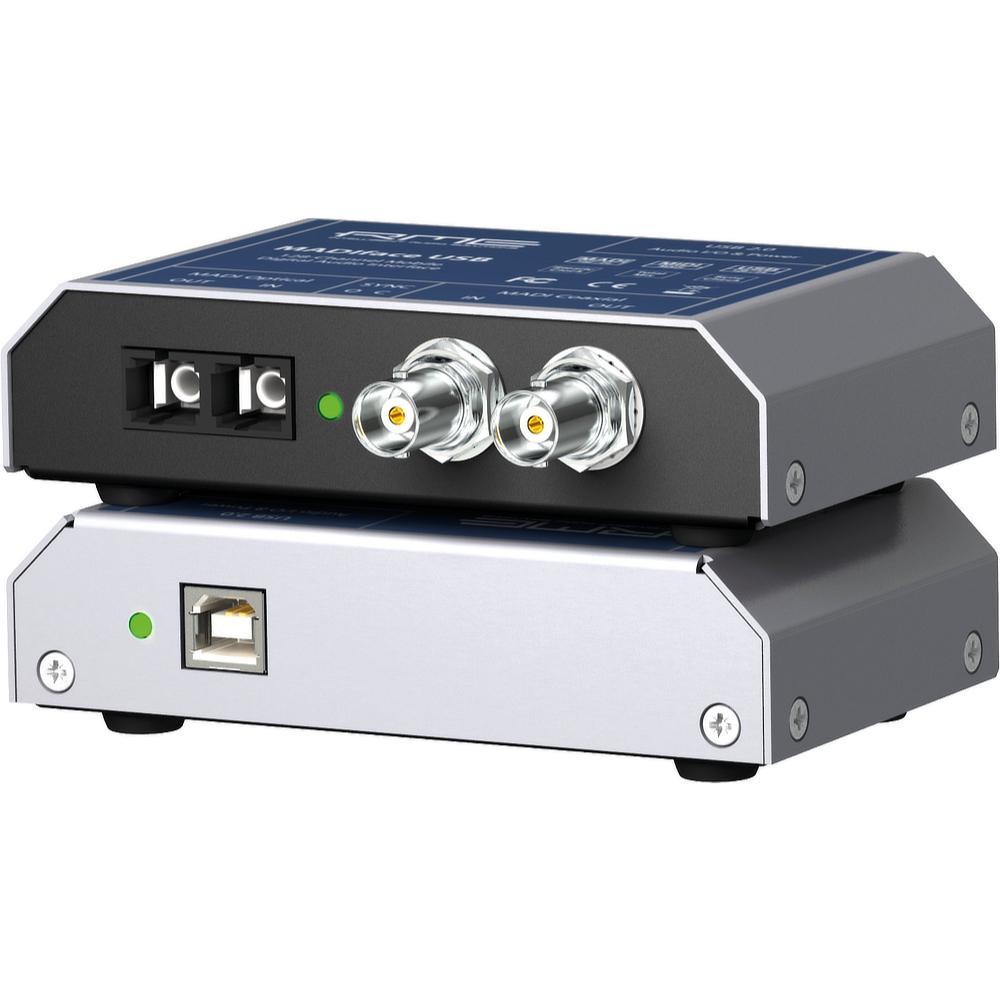

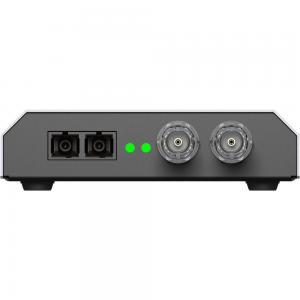

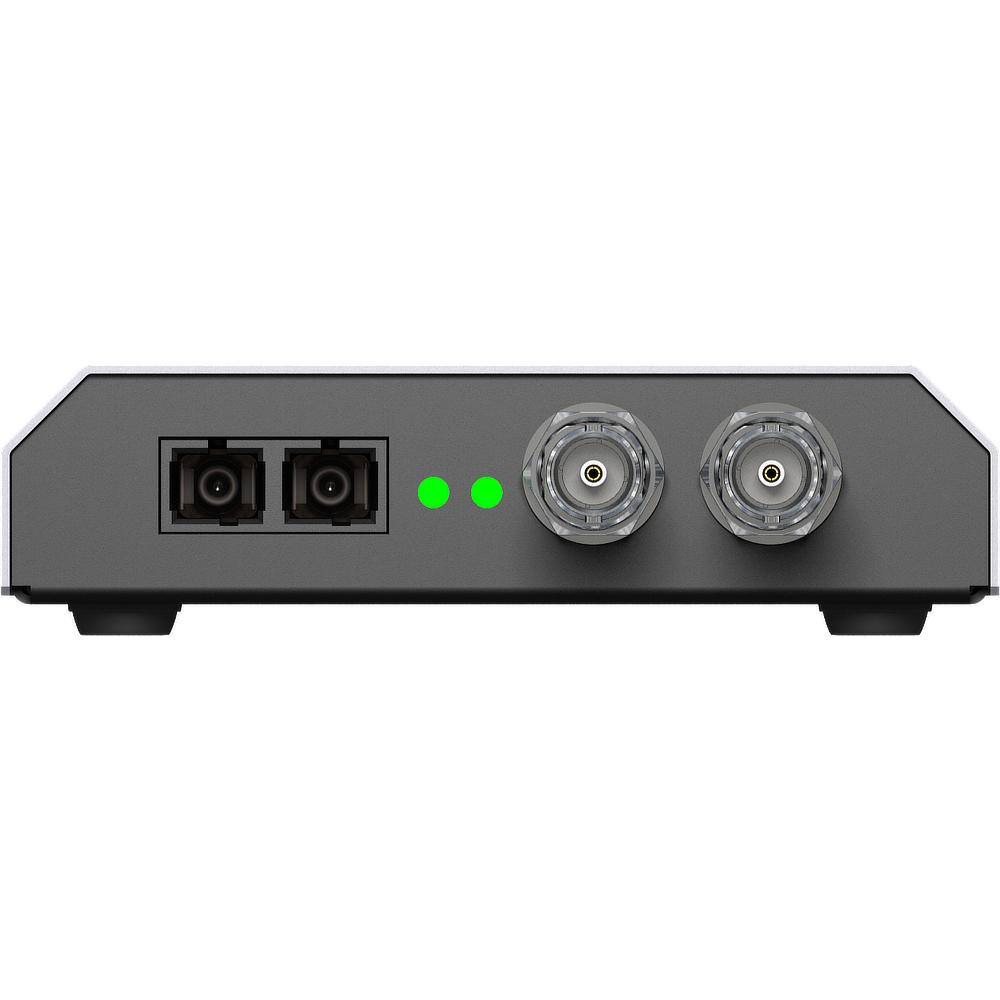

RME MADIface USB

RME MADIface USB

128-Channel mobile MADI USB 2.0 Audio Interface

Mixer, router, format converter, stream splitter, signal repeater - the MADIface USB is a perfect addition to any MADI system. You can use it to create redundancy, for automatic failover, and even for creating mixes with extremely low latency between the optical, coaxial and USB 2.0 audio inputs altogether! The MADIface USB can be easily integrated into a broad range of applications.

The compact MADIface USB provides MADI I/O over USB 2.0 while supporting the format's full 64 channels for recording and playback, under Mac and Windows. Both inputs can be used for full redundancy operation. Optionally both MADI I/Os can be operated simultaneously for full 128 channel input and output access, mixed and routed by TotalMix. Even without computer the small box delivers extraordinary bi-directional format converter and active repeater functionality.

Its sturdy and bus-powered design makes it as easy to use as reliable in operation. MADIface USB is both MADI portability at its best as also a perfect desktop solution to connect MADI equipment to any Mac and PC. A real gem in flexibility, usefullness and trouble-free operation - as you expect it from RME.

Specifications:

• Inputs/Outputs:2 x MADI I/O, optical and coaxial (BNC)
• MIDI input and output: via virtual MIDI port
• Clock modes: master (internal) and slave (MADI input)
• Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/DDS)
• Jitter: < 1 ns, internal and all inputs
• Jitter sensitivity: PLL operates even at 100 ns Jitter
• Seamless Redundancy operation with both inputs
• TotalMix: 2048 channel mixer with 48-bit internal resolution
• TotalMix: latency-free submixes and perfect ASIO Direct Monitoring
• Interface: USB 2.0, bus-powered
• Comes with DIGICheck, RME's ultimate measurement, analysis and test tool
