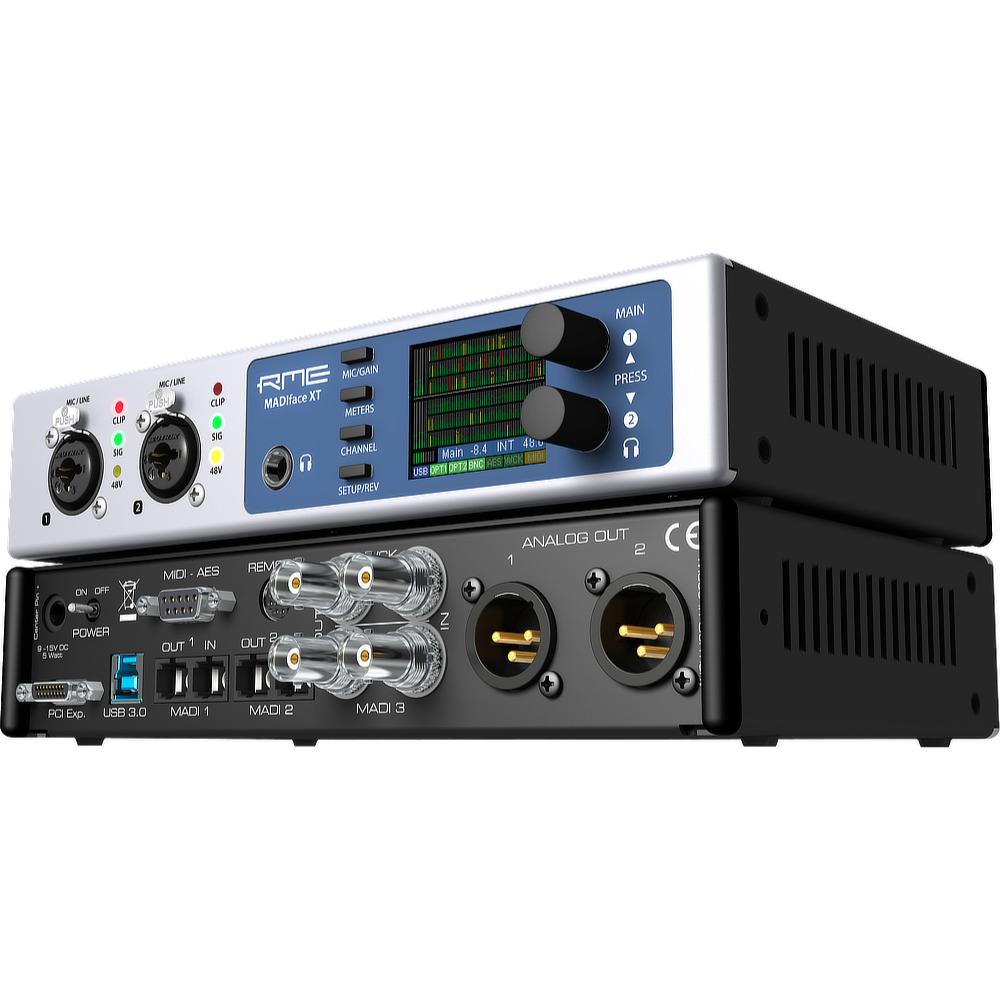

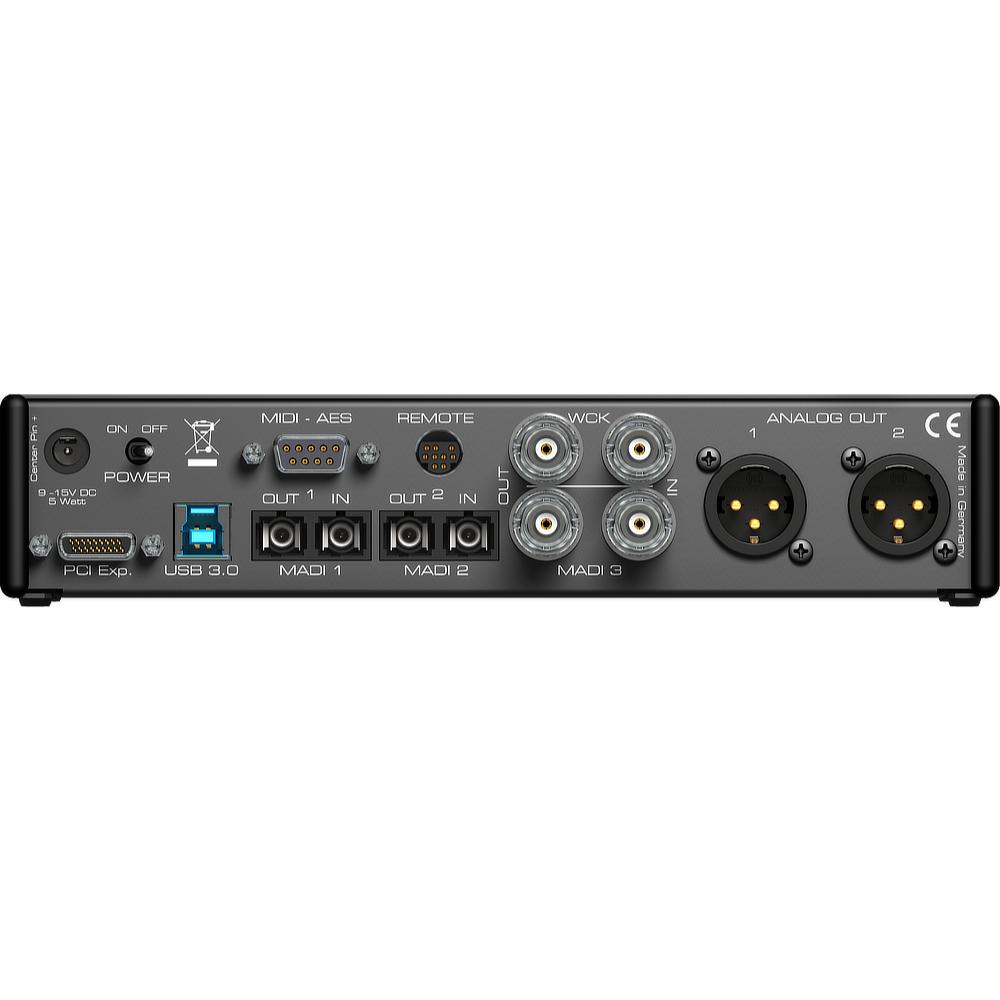

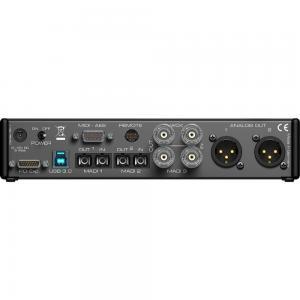

RME MADIface XT II394-Channel Triple MADI USB 3.0 Audio Interface
RME's MADIface XT is the world's first USB3 audio interface - and the world's smallest portable interface that provides access to hundreds of audio channels in such a small package.
Features
- 2 x MADI optical I/O
- 1 x MADI I/O coaxial
- 2 x XLR/TRS Mic/Line/Inst
- 1 x Analog I/O
- 1 x Phones Output
- AutoSet Digital Gain Control
- 4 x MIDI I/O
- 1 x Word Clock I/O
- 1 x AES/EBU I/O
- TotalMix FX
Since 2001 TotalMix added unlimited routing and mixing to RME‘s audio interfaces. Its unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.
- ARC USB
- RME USB 3.0
Use your RME audio interface on Mac and PC with reliable, stable, and regularly updated drivers for our products. RME Audio develops its own interface core, it’s not dependent on 3rd parties for upgrades, modifications or bug fixes, so customers can use latest operating systems without interruption or delay.
- Including FX
The RME MADIface XT is capable of transferring digital audio data directly into a computer, from any device equipped with a MADI interface. Analog sources can be connected to a stereo analog input, and 2 stereo analog outputs add full monitoring connectivity. Installation is simple, even for the inexperienced user, thanks to the latest Plug and Play technology. The numerous unique features and well thought-out configuration dialogs put the MADIface XT at the very top of the range of digital audio interfaces.

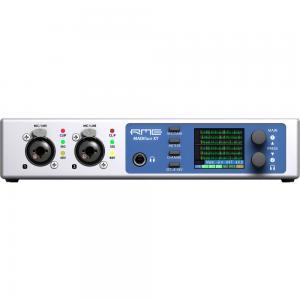

The front of the MADIface XT has 2 XLR/TRS line and microphone inputs, a stereo line/headphone output, two rotary encoders with push functionality, four menu keys, a graphical colour display, and six status LEDs.
MIC/LINE INPUTS
The Neutrik combo sockets of the two Mic/Line inputs provide XLR and 6.3 mm / 1/4" TRS connection. They have LEDs for Signal (SIG), Overload (Clip) and phantom power (48V).
HEADPHONE OUTPUT
Channels 3/4 feed the headphone output, which also operates as high-quality unbalanced line output.
DISPLAY
The display main screen (Global Level Meters) shows the current state of interface mode (PCIe orange, USB 2 yellow, USB 3 blue), the sync state of MADI and AES inputs, and incoming and outgoing MIDI data.
Includes RME Premium Plug-In Bundle:
- RME Digicheck Software
- RME TotalMix FX (Compression/Dynamics, Reverb, Delay)
- True Sound RME Drum Sample Pack
- Antares Auto-Tune Unlimited
- Scuffham Amps S-Gear Amp Simulation Software
- Brainworx BX Opto Compressor
- Brainworx BX MasterDesk
