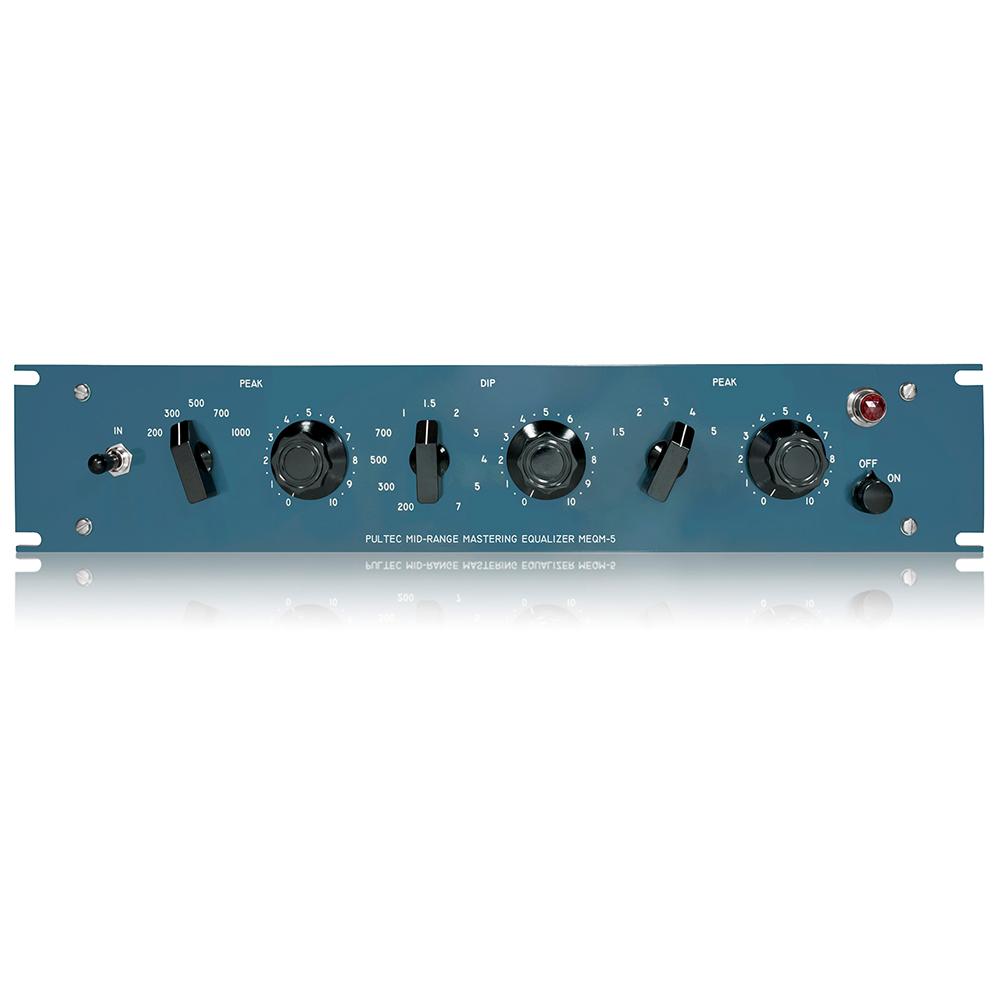

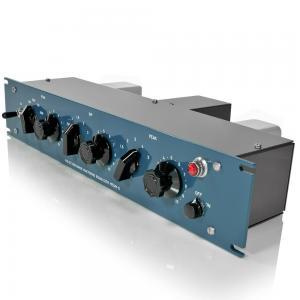

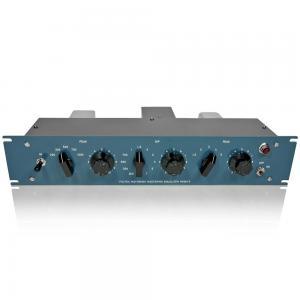

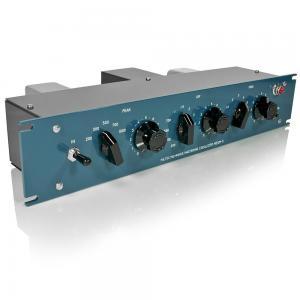

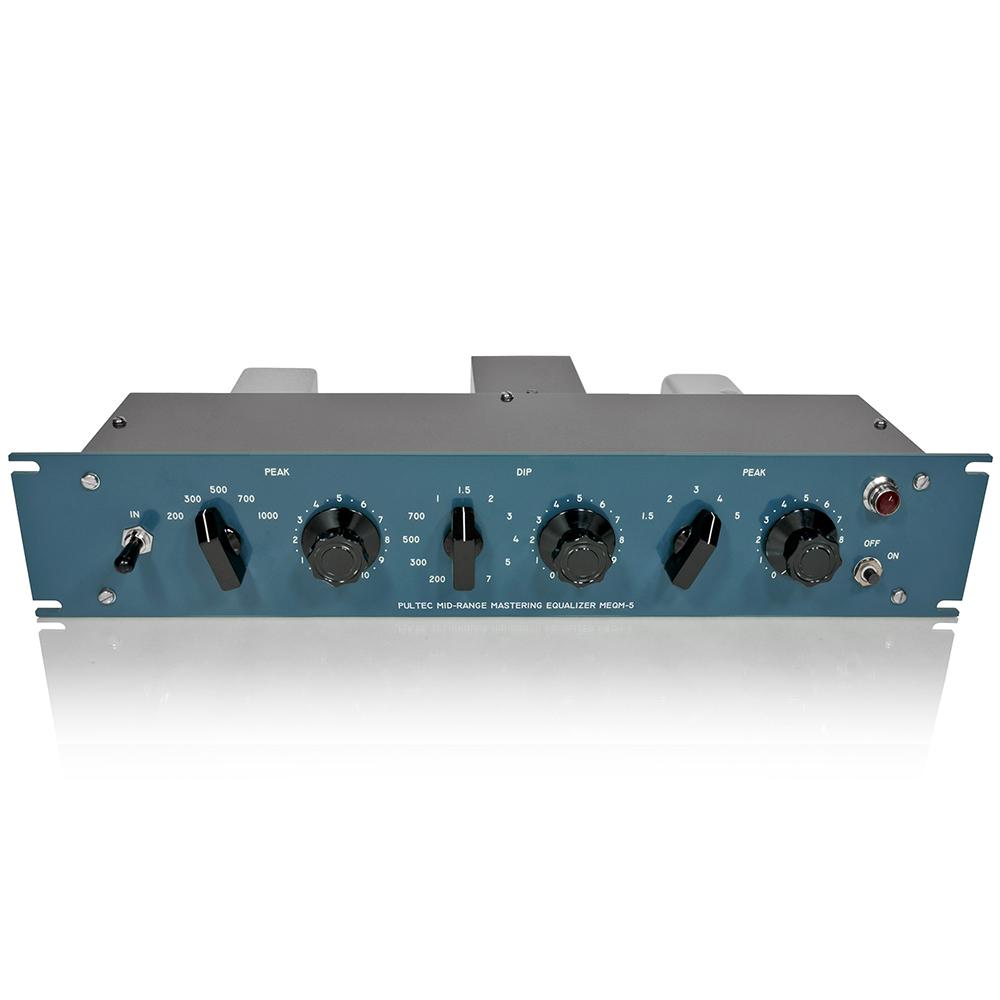

The MEQM-5 is the mastering version of the popular Pultec MEQ-5 midrange equalizer. Like the other Pultec mastering products, the potentiometers have been replaced with custom taper 21-position precision rotary switches providing enhanced control and reproducibility of settings.
The MEQM-5 provides exacting control of the “power region” in program material, that frequency range from about 300 Hz to 5000 Hz in which most of the sound energy is concentrated. The ear is especially sensitive to sounds in this region. In this region, even small resonances in studio acoustics and microphone and speaker responses are very evident in their effect on the listenability of the sound. Three independent sets of controls make it possible to boost on a peak curve at 200 – 1000 Hz while simultaneously boosting on a peak curve at 1.5 – 5 kHz, while simultaneously dipping at 200 – 7000 Hz. Guitars, vocals, horns, strings, keyboards, snares, toms, anything with significant midrange that requires complex contouring is a candidate for the MEQM-5.
Low-midrange peak boost: 200, 300, 500, 700, 1000 CPS, 0 – 10 dB
High-midrange peak boost: 1.5, 2, 3, 4, 5 KCS, 0 – 8 dB
Dip Atten: 200, 300, 500, 700 CPS and 1, 1.5, 2, 3, 4, 5, 7 KCS, 0 – 10 dB
Input Transformer: 600 Ohms
Output Transformer: 600 Ohms
Noise: Below -75 dBm
Distortion: ≤ 0.15% at +10 dBm into 600 Ohms
Amplifier: 20 CPS to 20 KCS, +0, -1 dB ref 1KCS Tubes: 1 ea 12AX7, 6AQ5, 6X4
