H2 Audio Helios 0011 Mic Pre & EQ

Manufacturer: H2 Audio

Be the first to review this product

Product ID: h2_audio_helios_0011_mic_pre___eq

$2,295.00

Add to wish list E-mail to a friend

Overview

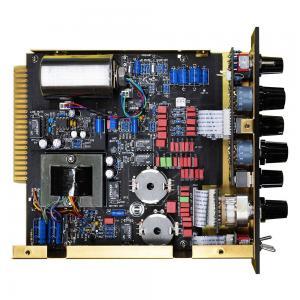

H2 Audio 0011 Helios Mic Pre and 3-Band EQ module

H2 Audio 0011 Helios Mic Pre and 3-Band EQ Module
This is NOT a 500 Series module

Requires a powered Helios Rack.
H2 Audio 002 - 2-slot rack with Power Supply
H2 Audio 008 - 8-slot rack with Power Supply

The original channel module from so many iconic studio recordings of the past. This module features the original Helios 2128 preamp circuit with 70dB of gain in 5dB increments. 20dB pad, Lustraphone input transformer. A balanced line in section is also featured. Inductor based LF/MF EQ section with selectable LF and MF and fixed 10Khz HF controls. Also included: Phase control, EQ bypass and selectable High Pass filter with original 40hz and 80hz filter points. The H2 Audio 0011 has an added output amplifier with output transformer, all of original Helios design, allowing the H2 Audio 0011 to drive a 600 ohm load up to 25dB before clipping (owners of classic Helios modules will agree that this was a major issue when trying to use a classic Helios in a custom rack). 48V phantom power is supplied by switch on the H2 Audio 8 channel rack.
