FEATURES:

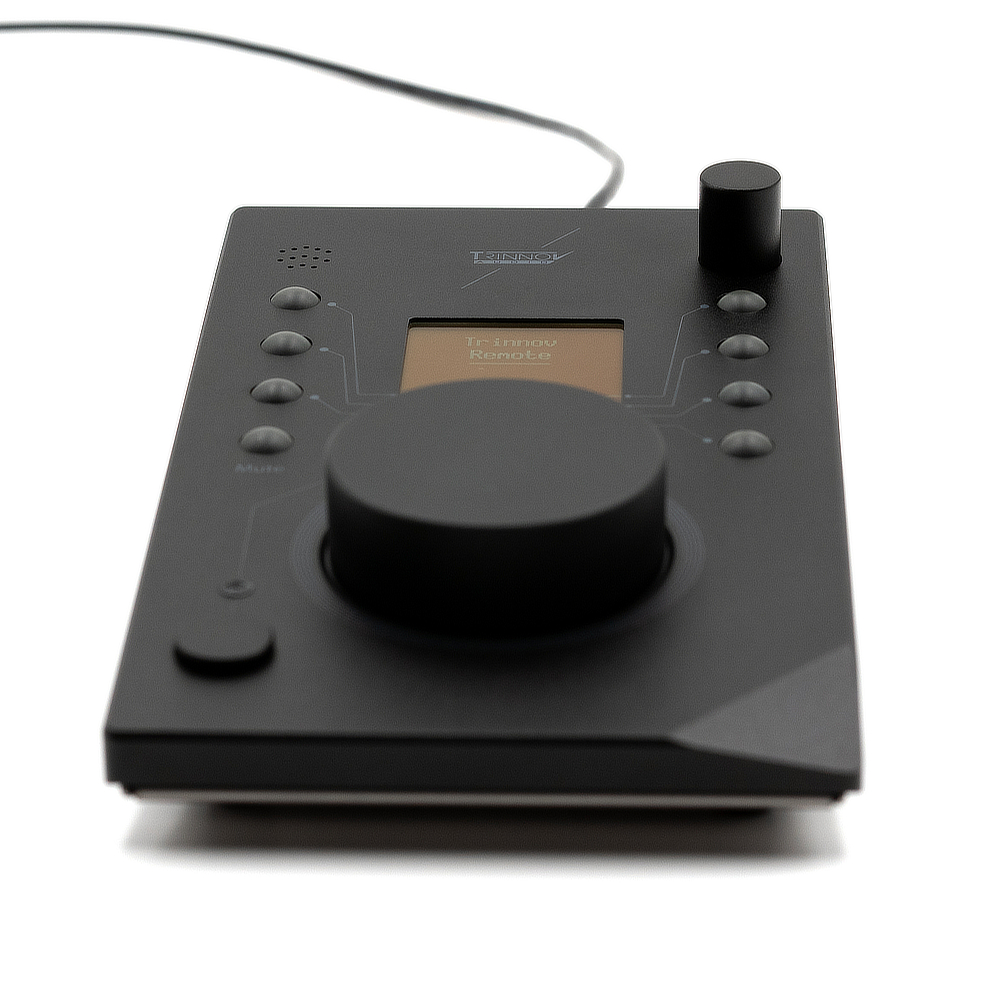

La Remote can be connected directly to the Trinnov processor via USB but will also work through the Trinnov Mac App.
The information is distributed across 3 different areas on the LCD:
● Top area - indicates the current Master Level
● Middle area - provides contextual information based on the selected layer
● Bottom area - 8 buttons function description
With the MC Processors and discontinued ST2 Pro , the Remote provides pre-configured layouts for the 8 backlit buttons:
● Monitoring layer - includes Bypass On/Off, Bass Management On/Off, Dim, software source selection (with software
version 3.8.20 and above)
● Speaker Layer - solo/mute mode toggle button, DRC On/Off, 6x speaker solo/mute (individual or grouped speakers)
● Submix Layer - enable/disable submixes
● Preset layers - 7 first presets (10 first characters of the preset name are displayed) per layer- Additional preset layers
are created automatically as the number of presets stores in the unit increases
● Profile layer for MC Processor (also compatible with High-End products)
● Network layer - current IP/submask addresses, network status, Trinnov server status, DHCP/Manual IP toggle button.
With DMON, the layers can be fully configured with functions assignable to each of the 8 buttons, plus:○ Talkback level○ Talkback switch
