Audio Accessories WEP-262EO-SH-JSK
2x26 1/4" SHORTI Quick-Switch (EDAC-3) Patchbay
2RU
We’ve incorporated Quick-Switch in our line of 1/4” Long-Frame SHORTI patchbays. Offered in 1RU and 2RU, these 1/4' Long-Frame patchbays have the Tip, Ring, and Sleeve of each jack brought out to individual 3-Pin EDAC connectors. It’s mounted on the rear of a 4-inch-deep SHORTI box, with a cabling support tray behind for bundling incoming cables
The Quick-Switch normalling pod (located on the rear of the unit) allows the individual normals to be set on a per jack-pair basis. By positioning the Quick-Switch shunts to the proper locations, you can select full-normal (FN), half-normal (HN), non-normal (NN), or grounds vertically strapped (GVS).
But the real flexibility is the ease with which you can re-configure the normalling. If you need to change any normal, simply pull the panel out from the front, and move the Quick-Switch shunt to the desired setting.

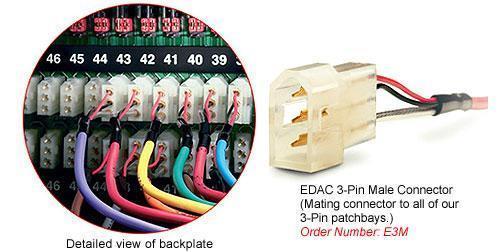

These patchbays are typically shipped with the shunts set up for Half-Normalling. For bussed grounds, specify when ordering. Please note that once these units are bussed, they cannot be altered. Panel is supplied with 52 E3M 3-Pin male mating connectors and 156 crimp pins.
1/4” SHORTI Features
