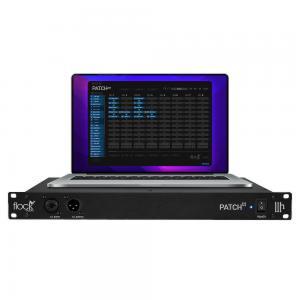

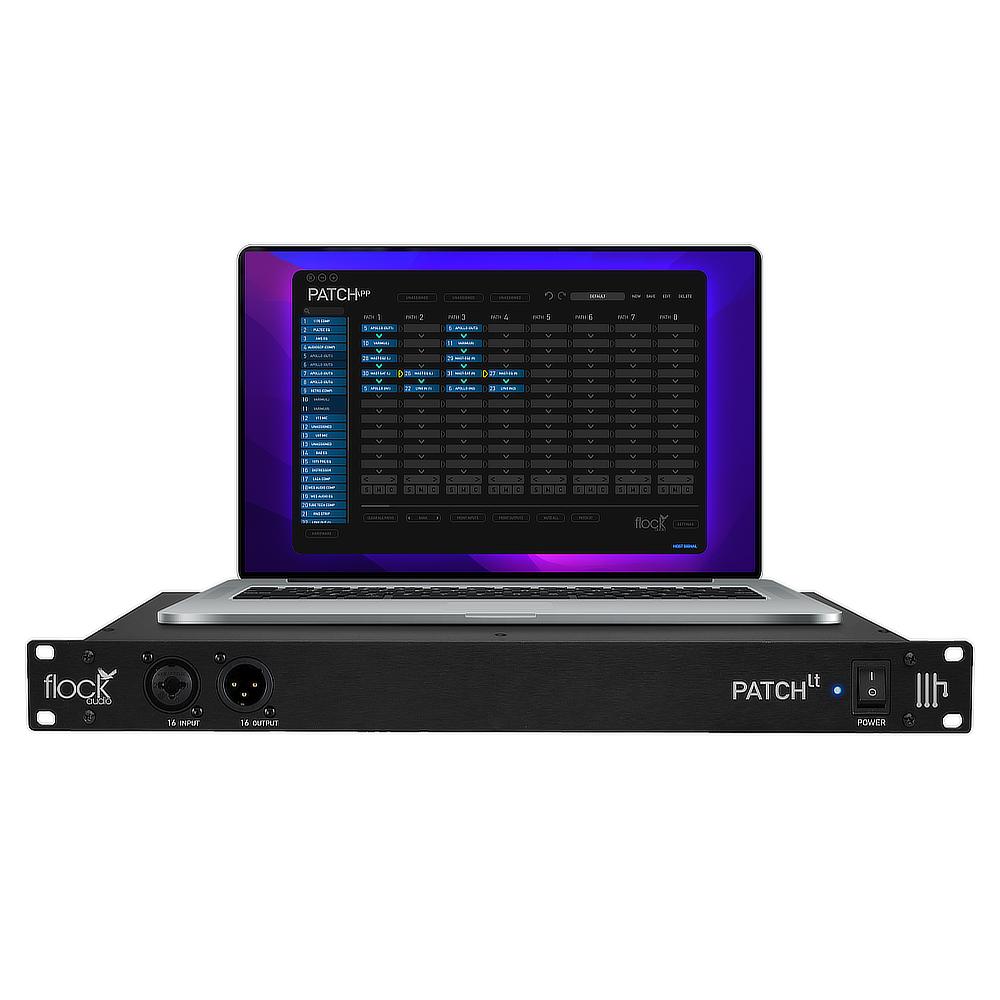

Flock Audio Patch LTTHE WORLDS MOST ADVANCED DIGITALLY CONTROLLED ANALOG ROUTING SYSTEM
small but MIGHTY!32(16x16) Point Digitally Controlled, Analog Patch Routing system
Integrate a Flock Audio PATCH System into your already existing traditional patch bay setup!
PATCH's flexible design allows users to configure it into any existing setup while utilizing the PATCH Series incredibly versatile and intuitive functionality!
The PATCH LT System uses the same Matrix Technology as their flagship routing system PATCH, used by hundreds of audio engineers worldwide. No matter the model, rest assured every system is a PATCH front to back.
Features• 32 Point Connections (16 Inputs / 16 Outputs)

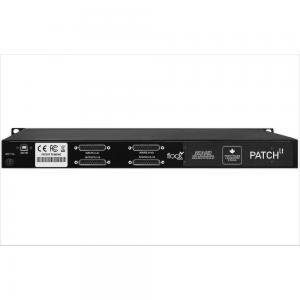

• DB-25/D-SUB Tascam Standard Pinout Format Connectors
• 16 Independent Channels of 48V Phantom Power
• Front Panel - 1 Combo TRS/XLR Input & 1 XLR Output
• PATCH APP Routing Software
or OPTIONAL PATCH APP DX (OSX & Windows) (iOS iPad)• Create, Store & Recall Routings in Seconds
• Create Complex Multing Combinations w/ No Impedance Issues
• No AD/DA Conversion, 100% Transparent Analog Signal Path
• Patented Flock Audio Matrix Technology (Same as PATCH)
• Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
• External 5Pin 24VDC Power Supply w/ IEC Cable Included
• 10 Ft. - USB 2.0 (USB-A to USB-B) - Cable Included
• Unit Dimensions: 1U - 1.75”(H) x 19” (L) x 8” (D) - 15 lbs

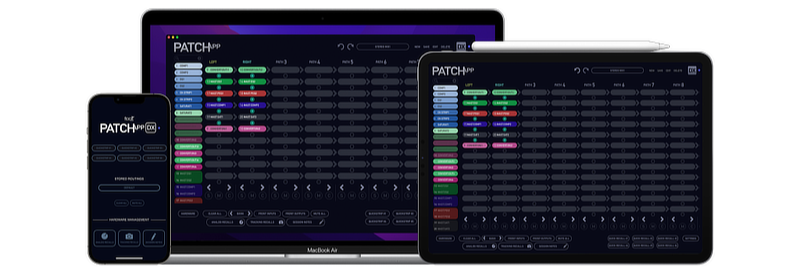

Optional PATCH APP DXPremium Software Upgrade - Perpetual License ($149.99)

The Patch App DX offers seamless device integration across multiple platforms simulataneously!
