Flock Audio Patch
$3,099.00
Overview
THE WORLDS MOST ADVANCED DIGITALLY CONTROLLED ANALOG ROUTING SYSTEM
64 (32x32) Point Digitally Controlled, Analog Patch Routing system
Integrate a Flock Audio PATCH System into your already existing traditional patch bay setup!
PATCH's flexible design allows users to configure it into any existing setup while utilizing the PATCH Series incredibly versatile and intuitive functionality!
Features:
• 64 Point Connections (32 Inputs / 32 Outputs)
• DB-25/D-SUB Tascam Standard Pinout Format Connectors
• 32 Independent Channels of 48V Phantom Power
• Front Panel - 2 Combo TRS/XLR Input & 2 XLR Output

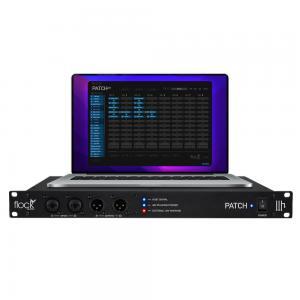

• PATCH APP Routing Software or OPTIONAL PATCH APP DX (OSX & Windows) (iOS iPad)
• Create, Store & Recall Routings in Seconds
• Create Complex Multing Combinations w/ No Impedance Issues
• No AD/DA Conversion, 100% Transparent Analog Signal Path
• Patented Flock Audio Matrix Technology
• Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
• External 5Pin 24VDC Power Supply w/ IEC Cable Included
• 10 Ft. - USB 2.0 (USB-A to USB-B) - Cable Included
• Unit Dimensions: 1U - 1.75”(H) x 19” (L) x 8” (D) - 15 lbs
Optional PATCH APP DX
Premium Software Upgrade - Perpetual License ($149.99)
The Patch App DX offers seamless device integration across multiple platforms simulataneously!
Flock Audios' flagship product The PATCH System was released in 2018 and has been used in countless Award Winning studios and post production suites around the world. The PATCH System has quickly made Flock Audio one of the most trusted & highly anticipated brands in the professional audio industry. Built upon their Patented Matrix Technology, The PATCH System allows creative flexibility & enhanced workflows no matter the analog source. Join the hundreds of audio engineers who have switched to the new standard in Analog Audio Routing... The PATCH System.
Connect Multiple PATCH Systems together for Expanded I/O Routing Capabilities.
This sytem is 100% analog!!
The PATCH System Series has no A/D or D/A conversion built in but users can connect multiple PATCH Systems together through their existing on-board I/O in many different configurations, whether you do equal Sends & Returns, maybe more sends than returns or even as little or as many connections between units as you require for your analog configurations.
Setup these Send & Receive or Input/Output Passes right from the simply designed PATCH APP Multi-Unit Menu.
In the Box:
- PATCH - (1U Hardware Rack Unit) Dimensions: 19" (W) x 1.75" (H) x 8" (D)
- USB 2.0 - (10 ft) Host Control Cable (USB-A to USB-B)
- Power Supply - 24VDC (110V or 220V) Power Supply
- Power IEC Cable - (Shipped with IEC Plug based upon customer region)
- 6 Step Quick Start Setup Guide
- Hardware Index Setup Template
Details:
- Computer Connectivity: USB 2.0
- Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer
- Software: PATCH APP (Online Download)
- Chassis: 1U Rackmount (8" Deep)
- Patch Point Connections: 64 Total - 32 Inputs / 32 Outputs (Expandable with all PATCH Models)
- 48v Phantom Power: 32 Channels Independently Controllable
- Front Connectors: 2x Combo TRS/XLR Inputs & 2x XLR Outputs
- D/A or A/D Conversion: No AD/DA Conversion, 100% Analog, Sonically Transparent Audio Path
- Routing System: Patended Flock Audio Matrix Technology

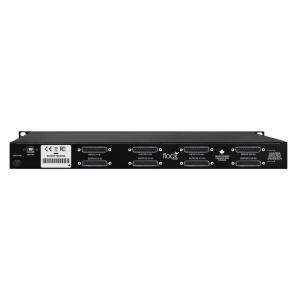

- Analog Connections: DB-25/D-SUB Female Connectors (Standard Tascam Wiring Pinout)
- Power Supply: External 24 VDC Power Supply w/ 5 Pin Threaded Locking Connector
- Warranty: 1 Year Total System + Included Cables Manufacturers Warranty
