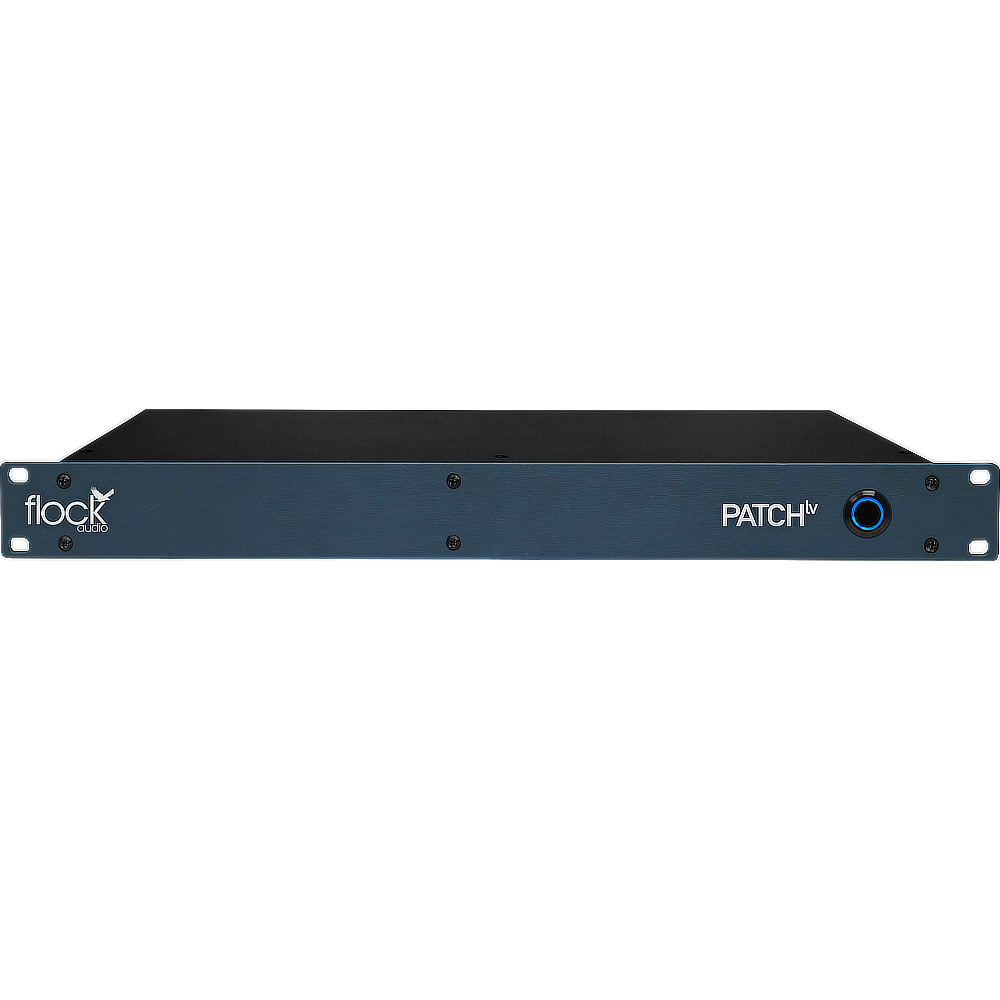

Flock Audio Patch LV
$4,999.00
Overview
24 In x 24 Out
8 x 8 Dante
PRE-ORDER Today
Est. Shipping Q3 - 2025
PATCH LV revolutionizes the live sound industry as the first-ever digitally controlled analog routing solution designed specifically for FOH Engineers. Featuring 24 channels of Flock Audio's award-winning, multi-patented analog routing technology and 16 Channels of DANTE, PATCH LV empowers live sound engineers to seamlessly integrate analog hardware into live applications. Delivering unparalleled performance with minimal AD/DA conversion and virtually no latency, as it sets a new standard for live audio systems.
Features
-

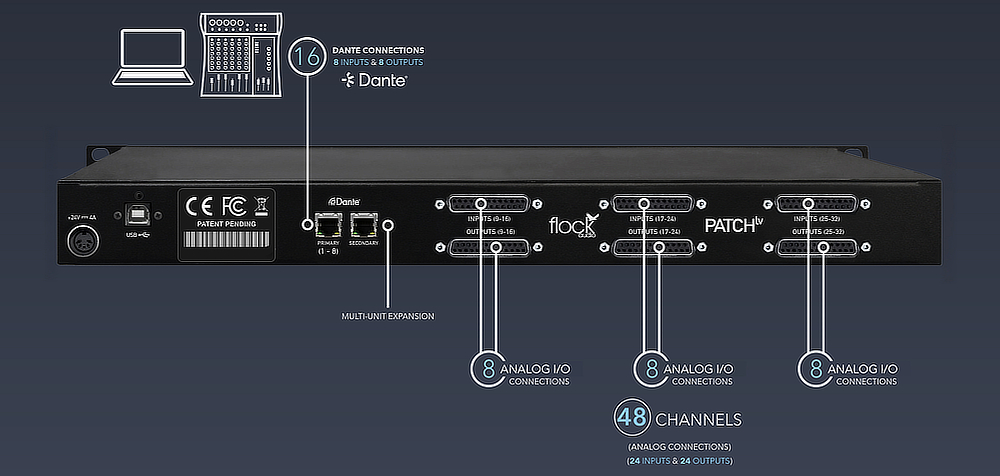

64 Point Connections (Total)
(8 Inputs / 8 Outputs - DANTE Enabled Connections) 192 kHz / 32 Bit
(24 Inputs / 24 Outputs - Fully Analog PATCH Series Routing) -

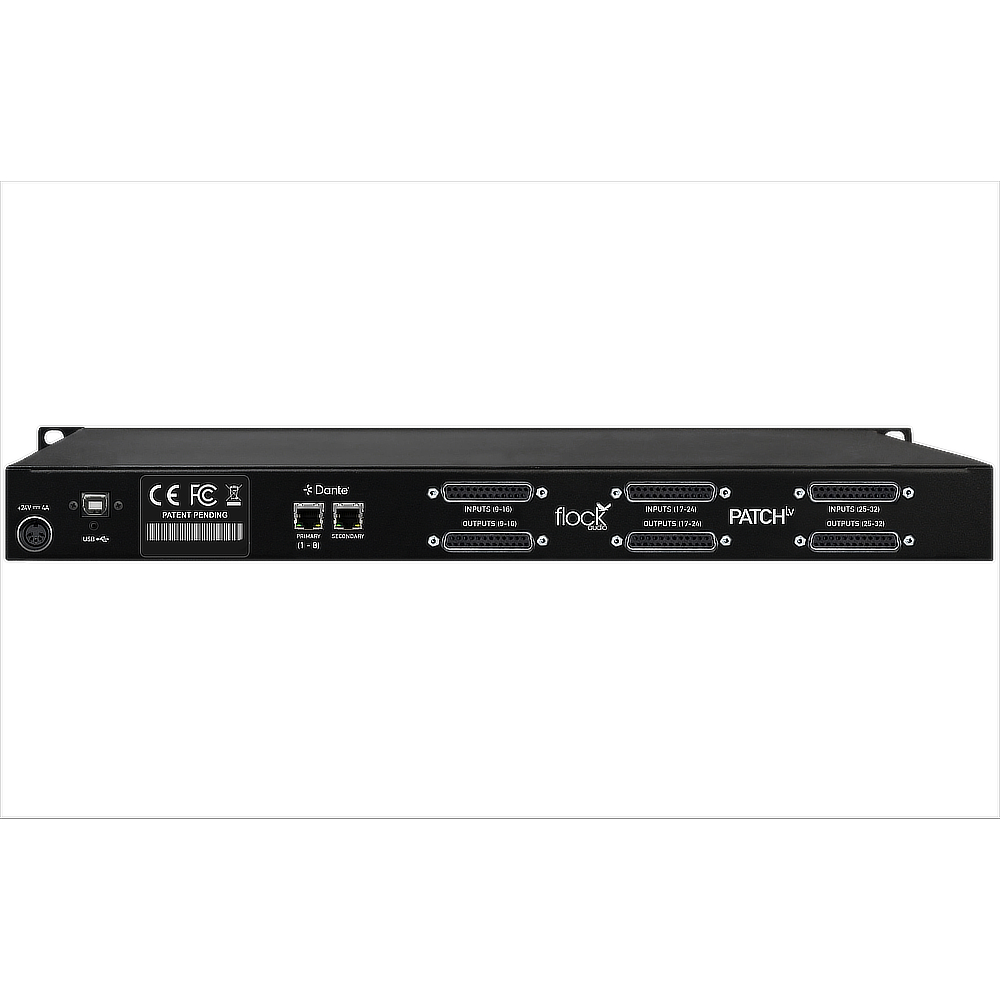

DB-25/D-SUB Tascam Standard Pinout Format Connectors (24 Ins x 24 Outs)
-
PATCH APP Routing Software (OSX & Windows)
-
Create, Store & Recall Routings in Seconds
-
Create Complex Multing Combinations w/ No Impedance Issues
-
No AD/DA Conversion, 100% Transparent Analog Signal Path (24 Ins x 24 Outs)
-
Patented Flock Audio Matrix Technology (24 Ins x 24 Outs)
-
Multiple Unit Expansion via DANTE for Larger I/O Systems
-
External 5Pin 24VDC Locking Power Supply w/ IEC Cable Included
-
Threaded Locking USB Connector w/ 10 Ft. - USB 2.0 (USB-A to USB-B) - Cable Included
-
Unit Dimensions: 1U - 1.75”(H) x 19” (L) x 8” (D) - 15 lbs
-
Est. Shipping Q3 - 2025
