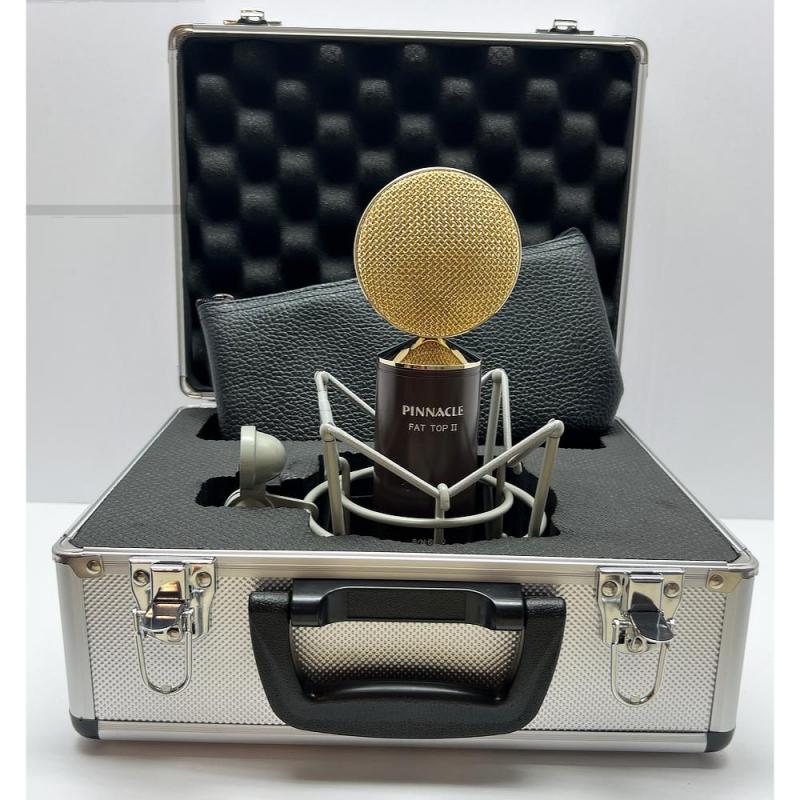

The Fat Top II is a short ribbon passive microphone that delivers a warm, rich, fat, rounded tone. The bi-directional polar pattern picks up sound essentially equally from both faces with a large null between faces ideal for isolating sound sources. Best suited for guitar cabinets, piano, brass and percussion instruments. Can be used in pairs in a Blumlein set up to pick up the entire room. Fat Top II comes standardly fitted with the upgraded Lundahl LL2913 transformer. Introducing the upgraded Lundahl to the already quality hardware makes for an extended frequency range. This gives the mic improved definition, lower floor and higher ceiling.
Specifications:
Type: Ribbon (velocity) Microphone
Ribbon Type & Dimensions: 99.99% Pure Aluminum, 2.5 microns, 1 3/4” (L) X 3/16” (W)
Polar Pattern: Symmetrical Figure 8
Sensitivity: -54.4 dB (1.5 (mV/Pa)
Frequency Response: 30 to 15 KHz (+/- 3dB)
Impedance: <=200 Ohms
Recommended Load Impedance: 1000 Ohms
Max.SPL (1% THD @1000 Hz): 135 dB
Equivalent Noise Level: to IEC 268-4 (A weighted) 17dB
S/N ratio: re 1Pa: 70 dB
Connector: 3-Pin Male XLR
Size: Diameter: 3” (O.D. grill), overall length 8 1/2”, 1 7/8” (O.D. body)
