Peluso Microphones P 84

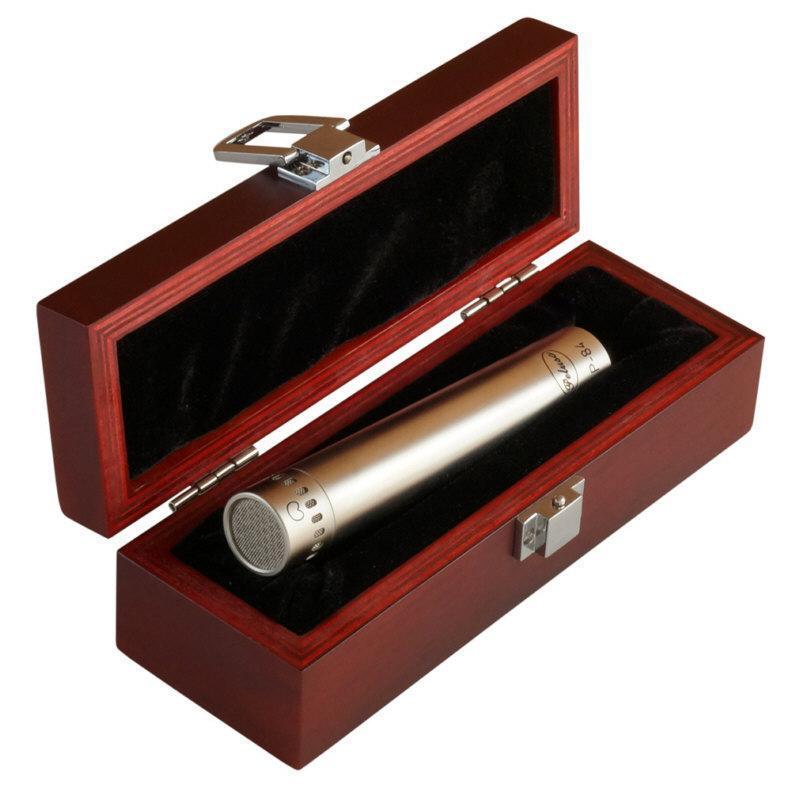

Solid State Small Diaphragm Condenser Microphone with Hard Mount in Peluso SDC Mic Box

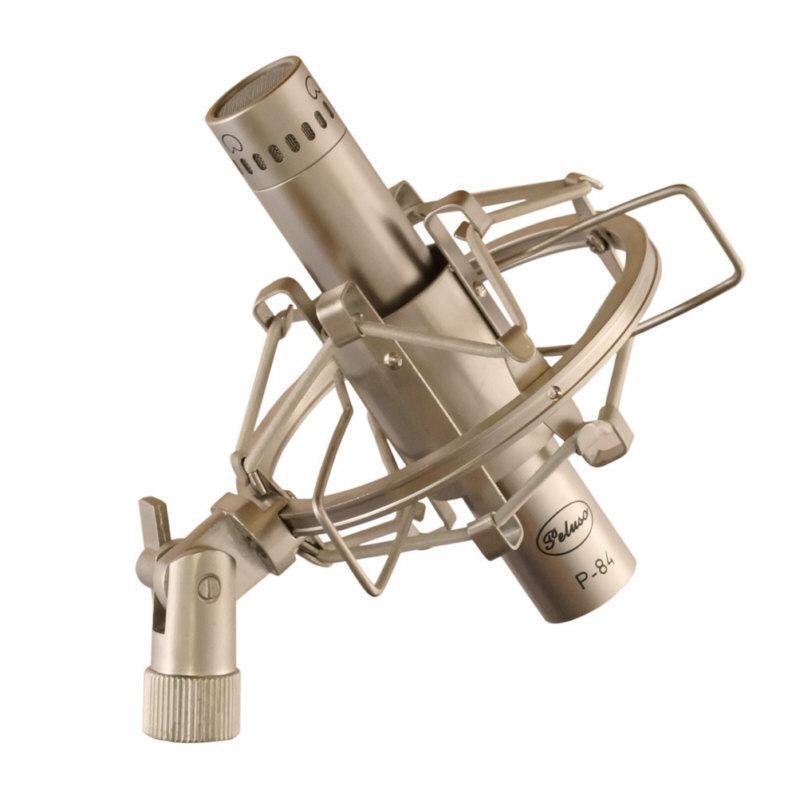

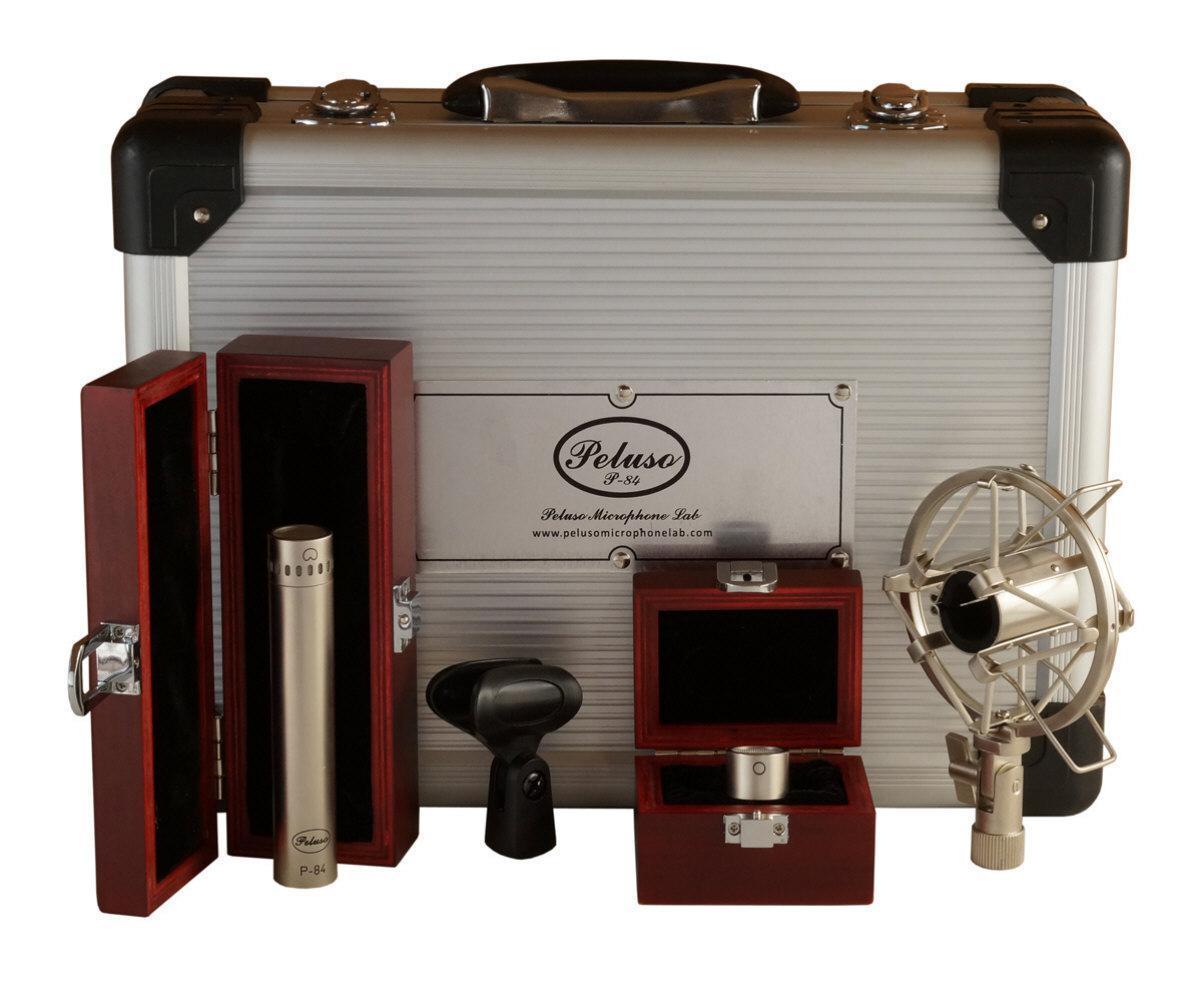

Optional Omni and Hyer Cardioid capsules, and Shock Mount in Flight Case and Stereo Set
The Peluso P-84 is a small diaphragm 48v phantom powered microphone with an exceptionally flat frequency response curve and inspired by the classic Neumann KM84. The P-84 features an output transformer and excellent cardioid pattern characteristics across the full frequency spectrum. Improved in low frequency responsiveness and high sound pressure level capacity the P-84 is one of Peluso's most significant achievements yet.
Technical Data
Capsule Type: Condenser Pressure Gradient w/ 20mm capsule
Frequency Range: 20Hz/20Khz
Polar Pattern: Omni and Cardioid
Sensitivity: 15 mv/pa
Impedance: 200 ohms
SPL: 142 dB
Equivalent Noise: 14 dB(A)
Power Requirements: Phandom - 48v +/- 4v
Current Consumption: < 3.0 MA
Size: 22mm x 124 mm
Weight: 130 g
PELUSO MICROPHONE LAB THREE YEAR LIMITED WARRANTY
PELUSO MICROPHONE LAB warrants that each product is free from defects in material and workmanship and agrees to repair or replace any part of the product which under normal installation and use discloses such defect, provided the product is delivered through the dealer or by the purchaser to PELUSO MICROPHONE LAB intact, for examination, with all transportation charges prepaid, and provided that such examination discloses in the judgment of PELUSO MICROPHONE LAB that it is thus defective. This warranty does not extend to any parts which have been subjected to misuse, abuse, neglect, accident, incorrect wiring, improper installation, or use in violation of instructions furnished by us nor to any PELUSO MICROPHONE LAB product which may have been tampered with, altered or repaired outside of PELUSO MICROPHONE LAB Authorized Service Centers. This warranty is in lieu of all other warranties expressed or implied, and no one is authorized to assume any liability on behalf of PELUSO MICROPHONE LAB, or impose any obligation on it in connection with the sale of any product other than as outlined above. This warranty is conditioned on and becomes effective only after the purchaser returns the detachable card, properly filled out, to PELUSO MICROPHONE LAB service department within fourteen (14) days after date of delivery to purchaser.
