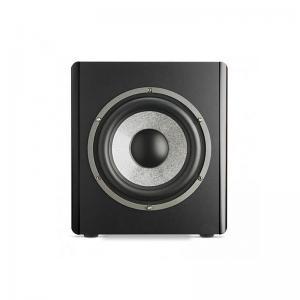

Focal Sub6 Be active subwoofer
(priced per monitor)
The Sub6 is an active subwoofer (1 x 350W RMS built-in amplifier - BASH technology) for professional monitoring systems. The driver is an 11" Focal with a "W" sandwich composite cone loaded by a large section laminar port. It can be used both as LFE channel in a surround system or as a bass or sub-bass complement in a stereo system (2.1 or 2.2). The Sub6 was designed to permit optimum acoustic coupling with professional monitoring speakers. Therefore, it includes all the features to achieve this task, such as stereo high pass filter (75 or 100Hz) for the left and right satellites, low pass filter (adjustable) with mono summation, phase inverter, phase fine tuning, mute switch, 2.1 bypass with a footswitch remote control (not included), as well as a wiring panel rich in possibilities.
The W cone
Focal has been developing the technologies of composite sandwich cones for more than 15 years. The "W" process (Glass/Foam/Glass), used on the SM11, SM8 and SM6 lines, provides a true optimization of the frequency response by fine tuning of mass, rigidity and damping parameters. The balance between these 3 fundamental and often contradictory parameters is at the base of the outstanding sound neutrality of our speakers.
The 105/8"(27cm) Focal speaker is equipped with a high excursion system to enable accurate and extended reproduction in the bass/infra bass register. The 25/8" (66mm) diameter and 11/4" (32mm) height voice coil ensures a perfect mechanical coupling and a total control of the driver even at high sound level. The magnetic construction made of double ferrite and large field and back plates offers high symmetrical magnetic field to keep dynamics even at very low frequency.
A custom designed amplification stage
Designing an amp to be integrated inside a speaker requires a very different set of rules than for a traditional amp. Speaker size and cooling concerns are often in contradiction with the high quality and high power requirements of a sonically transparent speaker.
Our engineers used the BASH, technology to develop the bass/medium amplification circuit for the SM6 professional line of speakers. This was the only way to exploit the best of class AB style circuits (for exceptional quality) with a class D type yield, which is crucial when housing a 150W RMS circuit in such a small space (300W RMS for the Twin6 Be and 350W RMS for the Sub6).
Specifications
Frequency response
30Hz - 250Hz
Maximum SPL
116dB SPL (peak @ 1m)
Electronic section
Inputs
Type / Impedance
Connector
Sensitivity
Right, left, LFE
Electronically balanced / 10 kOhms
XLR 3 points socket
Adjustable
Outputs (towards satellites)
Type/Impedance
Connector
Right, left
Electronically balanced / 50 Ohms
XLR 3 points plug
Amplification
350W rms, BASH technology
Signal internal treatment and functions
Subwoofer section
Satellite section
Mono right/left summation
LFE + mono low-pass
24dB / octave
Phase adjustment
Polarity selection switch
Switch high-pass filter, cut-off frequency selection
24dB / octave
Control
Adjustable subwoofer level
Low-pass cut-off frequency setting
Phase adjustment
Polarity adjustment
Subwoofer switch (mute)
2.1 Bypass (external remote control)
High-pass frequency selection
Releasable high-pass
Visualization (LED)
Power On
Subwoofer switch(mute)
Released high-pass
Power supply
Local supply
Connection
230V (1.6A fuse) or 115V (3.15A fuse)
Removable CEI supply wire
Transducers
Subwoofer
11W7670, 105/8" (27cm) Focal W composite sandwich cone driver
Cabinetwork
Construction
71/2" (19mm) MDF panels
Finish
Dark red natural veneering side panels, black body
Dimensions (HxLxD)
1415/16 x 139/16 x 175/16" (380mm x 344mm x 440mm)
Weight
50.7lb (23kg)
