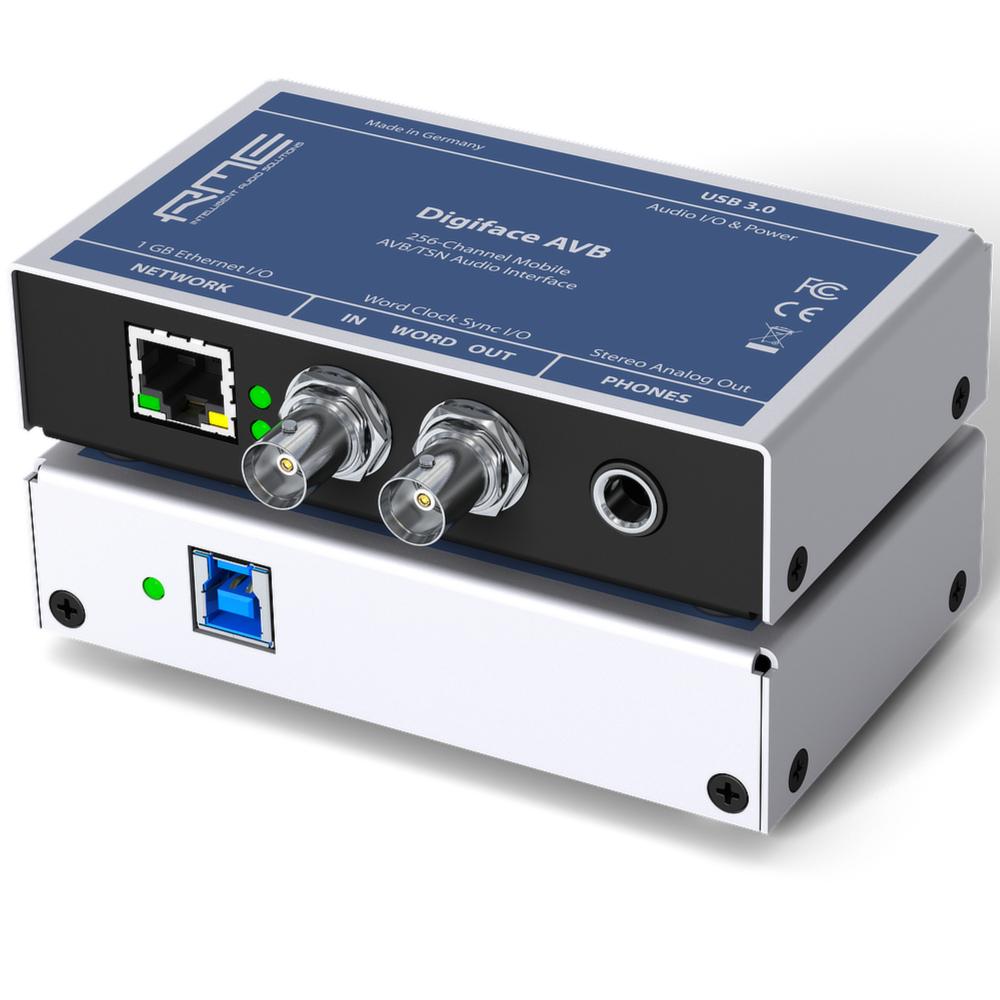

RME Digiface AVB 24 Bit / 192 kHz, 256-channel Hi-Performance USB 3.0 Audio InterfaceDeveloped by RME, Digiface AVB is a glance into the future of audio network technology. The device uses AVB, an open protocol developed by the IEEE, to transfer up to 256 channels of audio between PC and audio network. An additional headphone output allows high quality monitoring.
Audio Video Bridging is a common name for the set of technical standards which provide improved synchronization, low-latency, and reliability for switched Ethernet networks.
Features
- RME USB 3.0
Use your RME audio interface on Mac and PC with reliable, stable, and regularly updated drivers for our products. RME Audio develops its own interface core, it’s not dependent on 3rd parties for upgrades, modifications or bug fixes, so customers can use latest operating systems without interruption or delay.
- 1 x Phones Output
- TotalMix FX
Since 2001 TotalMix added unlimited routing and mixing to RME‘s audio interfaces. Its unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.
- ARC USB
- Word Clock I/O
- Gigabit Ethernet (802.3 compliant)
- DC-coupled Outputs (Phones)
RME’s Digiface AVB showcases how audio can be transferred from a Mac or PC into the network and back using the AVB protocol stack. It allows to send up to 128 audio channels for record and playback at 48 kHz / 24 bit sampling frequency and 64 channels at 96 kHz (128 channels I/O AVB) or 32 channels at 192 kHz with quad speed (64 channels I/O AVB).Channels are organized in streams of configurable size from 2 to 32 channels, which enables connections to all available AVB audio devices on the market (comprehensive compatibility tests pending). The accompanying software package comprises an AVDECC controller, which provides essential functions to discover all AVB devices in a network and manage connections of incoming and outgoing streams. Basic monitoring capabilities are built in. TotalMix FX enables comprehensive routing and monitoring options.
Includes RME Premium Plug-In Bundle:
- RME Digicheck Software
- RME TotalMix FX (Compression/Dynamics, Reverb, Delay)
- True Sound RME Drum Sample Pack
- Antares Auto-Tune Unlimited
- Scuffham Amps S-Gear Amp Simulation Software
- Brainworx BX Opto Compressor
- Brainworx BX MasterDesk
