Quested SB10R 10" Sub with SBC250 Amplified Controller

Manufacturer: Quested Monitoring Systems

Be the first to review this product

Product ID: QSB10R-MO

Call for price

Add to wish list E-mail to a friend

Overview

Used Quested SB10R MKII 10 inch Powered Sub-woofer with Amp and Controller

Quested SB10R
10 inch Sub-woofer

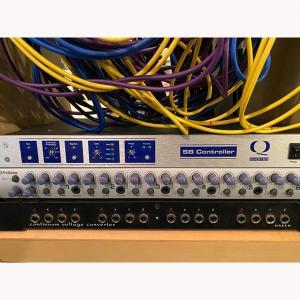

Includes Quested SBC250 - 250w sub amplifier/controller, with X-Over & phase

Perfect sub for small nearfield monitors
Used (2009) - Very Good Condition, tested
Slight bend on one rack ear (see photos)

The Quested SB10R is a powerful self powered 10 inch sub-woofer with a rack mountable controller designed as a partner for any of the full-range monitors in the Quested S-Series. Delivering a powerful yet clean bass response all the way down the 25Hz, the SB10R completes the S-Series. A 10” driver is perfectly matched to the cabinet volume and paired with its own dedicated remote power amplifier. The SBC250 amplified controller (250W) has all the features to allow perfect integration of the sub with any system. It has a variable crossover from 40Hz to 135Hz, gain control from -14db to +6db, up to 160 degrees of phase control, along with a polarity ± switch, output level metering and a bypass function, all in a 1U rack unit. Remote power allows for very easy setup, with all the controls you need at your fingertips.

Specifications:

Dimensions: Cabinet 600(w) x 332 (h) x 300(d) mm
SBC250 Controller – 1U case 270mm deep
Weight: Cabinet – 19.8 kg / 43.4 lb
SBC250 Controller – 5.5 kg / 12 lb
Drivers: Bass cone 1 x 250mm (10”)
Frequency Response: User Adjustable. 25 Hz-200 Hz ± 2 dB / 17 Hz-200 Hz -6 dB
Maximum SPL: 116 dB continuous pink noise @ 1m Leq 1 minute half space
Connector: 2 off XLR and ¼ inch jack combo socket
Impedance: 10k W electronically balanced with RF filters
Wiring:
Pin 1 ground Sleeve
Pin 2 hot Tip
Pin 3 cold Ring
OUTPUTS:
Left and Right Monitor 2 off XLR type male left & right outputs
Impedance 100 ohm electronically balanced
Wiring Pin 1 ground, Pin 2 hot, Pin 3 cold
Sub Bass Output: 1 pair binding posts
FILTERS: Left & Right Input Summed to Sub Output
Subsonic/High Pass: -3dB @ 14Hz, 24dB/oct or -3dB @ 28Hz, 24dB/oct (set by internal jumper)
Low Pass: -3dB @ 40Hz to 135Hz, externally adjustable @ 24db/oct or full range on CH A
Left & Right Input to Left & Right Output
Ultrasonic: -1dB @ 100k
High Pass: -3dB @ 40Hz to 135Hz, externally adjustable @ 24db/oct or full range on CH A
