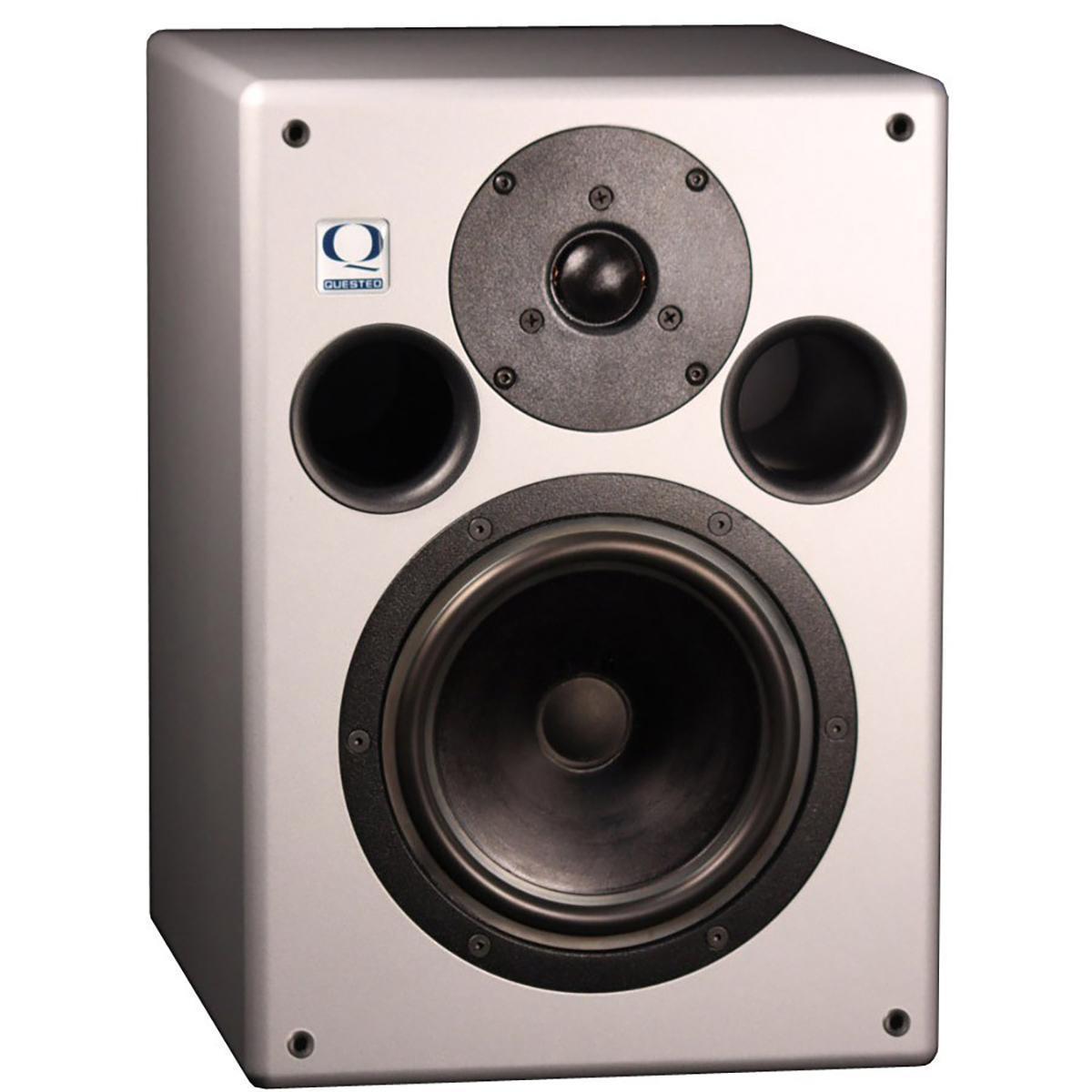

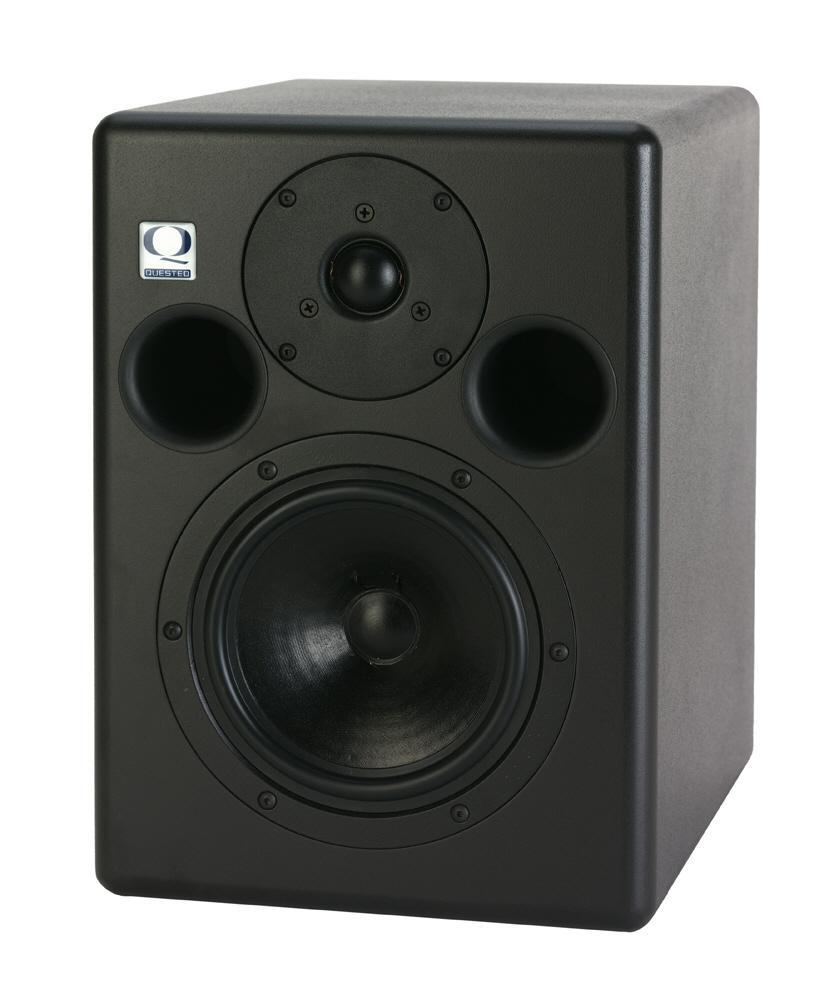

Quested S7R Self-powered 2-way, 6.5" near-field monitor - 190W (priced per monitor)
The S7R is designed to be compact yet offer a bass extension suitable for the majority of monitoring requirements. Incorporating a 6.5” low frequency driver with a double flared front loaded port design means reduced turbulence and a monitor that is very forgiving of placement to walls. The built in amplification provides a total of 190W RMS to the drivers. Power is split with 120W RMS to the 6.5” LF and 70W RMS to the silk dome tweeter. Attenuation to the input sensitivity along with low and high frequency is available on the rear panel. The frequency response is 68Hz – 20kHz with a +- 2db tolerance and a -6dB cut off down to 58Hz . The With the addition of the SB10R the frequency response can be taken down to 27Hz for those wanting to accurately monitor down to the lowest of usable acoustics frequencies.
Two class A-B amplifiers capable of delivering a total of 190 Watts RMS are mated to an enclosure tuned with a double flared port designed to minimise any possible low frequency “chuffing”. The result is an extremely powerful, neutral, articulate and accurate compact monitor perfect for a wide range of music styles from acoustic jazz to house.
The S7R is fully magnetically shielded, so can be used in close proximity to CRT monitors.
All S-Series monitors are phase coherent with each other enabling them to be used in combination in 5.1 multi-channel systems
Some typical applications include components in multi-channel systems, postproduction, project studios, location recording, and mastering.Specifications:
