Millennia MADI Option 3D

Millennia MADI Option
Module for HV-3D preamps.

Multi-mode optical fiber with an SC-Plug (IEC 874-19) or 75 ohm coax with a BNC connector. Requires AD-D96 Converter option

• Eight channels of A/D Conversion
• 24-bit 96 kHz eight-channel MADI and AES format converter
• External Clocking from MADI stream, defaults to 48kHz
• DB25 Connector that conforms to the Tascam AES wiring standard

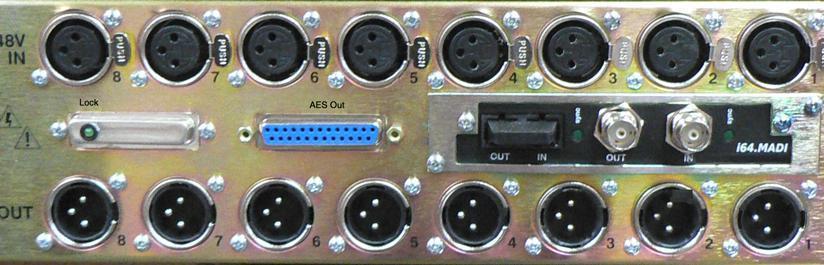

• Optical and BNC MADI input and output connectors
• Industry standard i64 MADI card with custom software
• -18dBFS reference level
• All HV-3D/HV-3R units can have the option installed
