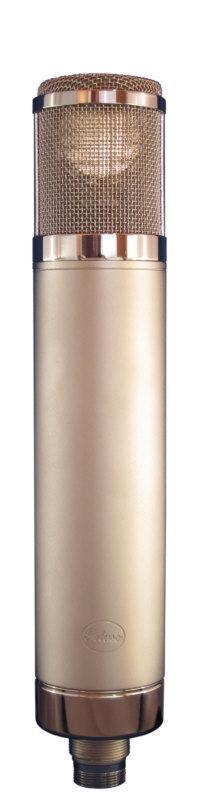

Peluso P-12
The Peluso P-12 microphone is inspired by and styled after AKG's legendary vintage C12. It has the 9 polar patterns - controlled from the power supply. It faithfully reproduces the airy sonic qualities and the robust low end of the original C12.
Produced from 1953 to 1963, the "C12" was revered by engineers for its beautiful vocal quality. The P-12 employs a dual sided edge terminated 34mm gold-coated Mylar capsule and a 6072A glass triode tube. The circuitry and transformer have been designed to match the vintage "C12". Carefully selected components, thorough testing, and attention to detail all come together in this beautiful full-bodied classic tube microphone.
The P-12 is paired with the Peluso MX-56 power supply.
NEW for 2013! The P-12 features a heavy-duty 8-pin screw on cable connector. The large diameter pins in the screw on connector give a tight and secure cable connection designed to perform for a lifetime of use.
Acoustically matched pairs available upon special request.

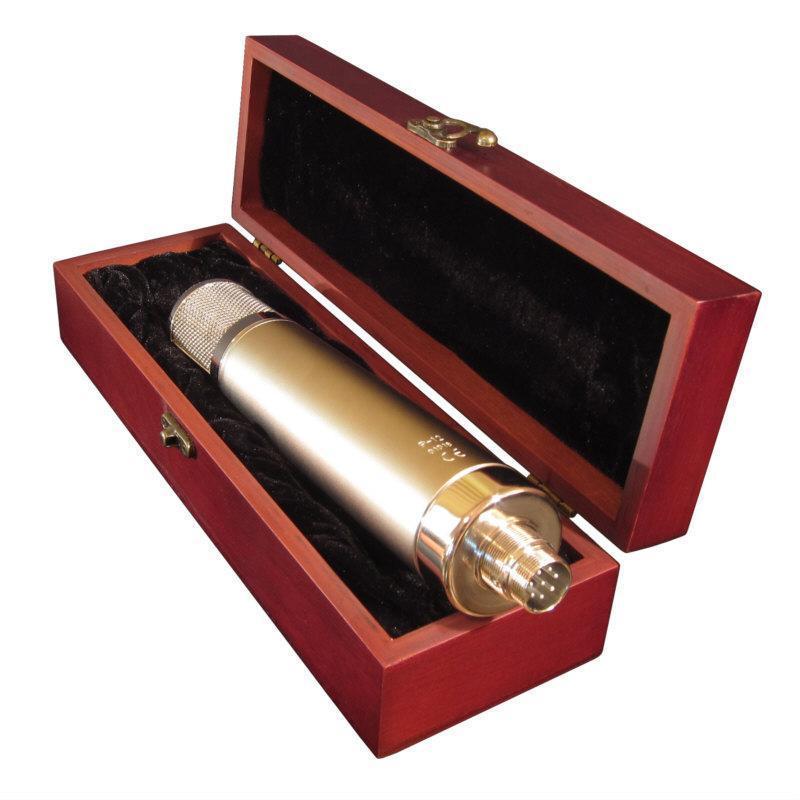

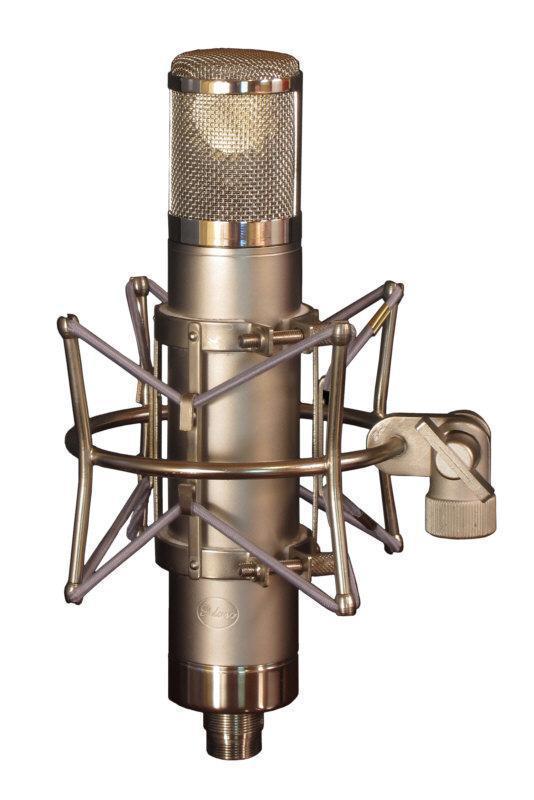

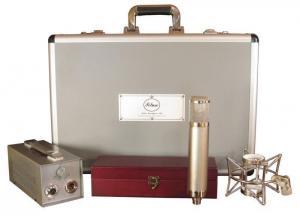

Microphone kit comes as a complete system including: P-12 Microphone in a Wood Box, MX-56 Power Supply, New-style 8-Pin Screw on Cable Assembly, and a Shock Mount all packed in a Flight Case.
Technical Data
- Capsule Type: Condenser Pressure Gradient w/ 34mm edge-terminated capsule
- Frequency Range: 20Hz/24Khz
- Polar Pattern: 9 - Switchable from omni- to bi-directional
- Sensitivity: 11 mv/pa
- Impedance: 200 ohms
- SPL: 138 dB
- Equivalent Noise: 15 dB(A)
- Tube Type: 6072A-M
- Power Requirements: Dedicated Power Supply, 115V or 230V AC
- Size: 45mm x 240 mm
- Weight: 750 g
PELUSO MICROPHONE LAB THREE YEAR LIMITED WARRANTY
PELUSO MICROPHONE LAB warrants that each product is free from defects in material and workmanship and agrees to repair or replace any part of the product which under normal installation and use discloses such defect, provided the product is delivered through the dealer or by the purchaser to PELUSO MICROPHONE LAB intact, for examination, with all transportation charges prepaid, and provided that such examination discloses in the judgment of PELUSO MICROPHONE LAB that it is thus defective. This warranty does not extend to any parts which have been subjected to misuse, abuse, neglect, accident, incorrect wiring, improper installation, or use in violation of instructions furnished by us nor to any PELUSO MICROPHONE LAB product which may have been tampered with, altered or repaired outside of PELUSO MICROPHONE LAB Authorized Service Centers. This warranty is in lieu of all other warranties expressed or implied, and no one is authorized to assume any liability on behalf of PELUSO MICROPHONE LAB, or impose any obligation on it in connection with the sale of any product other than as outlined above. This warranty is conditioned on and becomes effective only after the purchaser returns the detachable card, properly filled out, to PELUSO MICROPHONE LAB service department within fourteen (14) days after date of delivery to purchaser.
