WesAudio Mimas

Manufacturer: WesAudio

Be the first to review this product

Product ID: wesaudio_mimas

~~$1,199.00~~
$1,099.00

Add to wish list E-mail to a friend

Overview

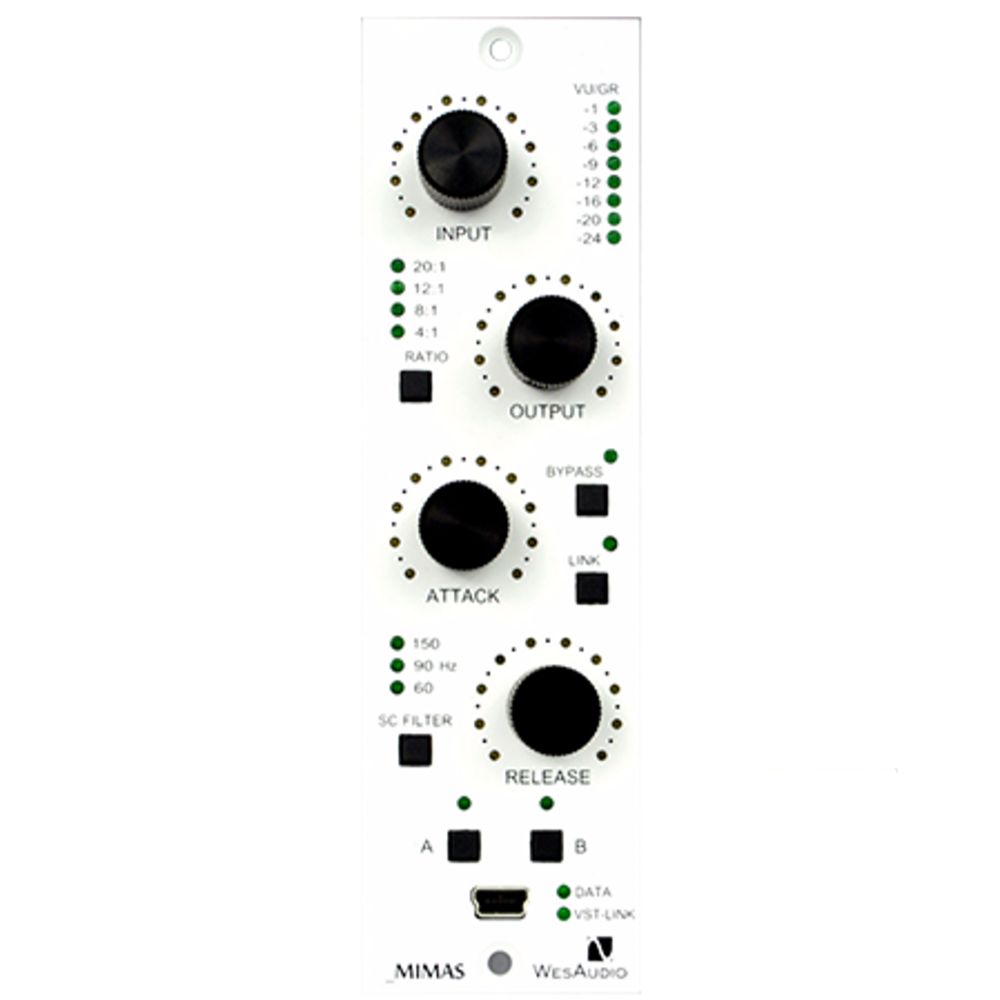

WesAudio Mimas - 1176 style analog compressor with digital recall

WesAudio Mimas
1176 style 500 Series Analog Compressor Module with Digital Recall

Since year 1968 this style of compression dominated hundreds of recordings and to this day it is most commonly used signal processor in the industry. Lightning-fast attack and release times became main companions of audio engineers. WesAudio proudly presents _MIMAS – ng500 series implementation of legendary FET compressor. This time along with classic analog sound You will receive most demanded feature in audio industry – DIGITAL RECALL.

FEATURES

_MIMAS – CARNHILL TRANSFORMERS are foundation of its sound.
Full balanced (IN/OUT) analog device with +24dBu of headroom.
FOUR RATIO SETTINGS AND LEGENDARY “ALL BUTTONS IN”.

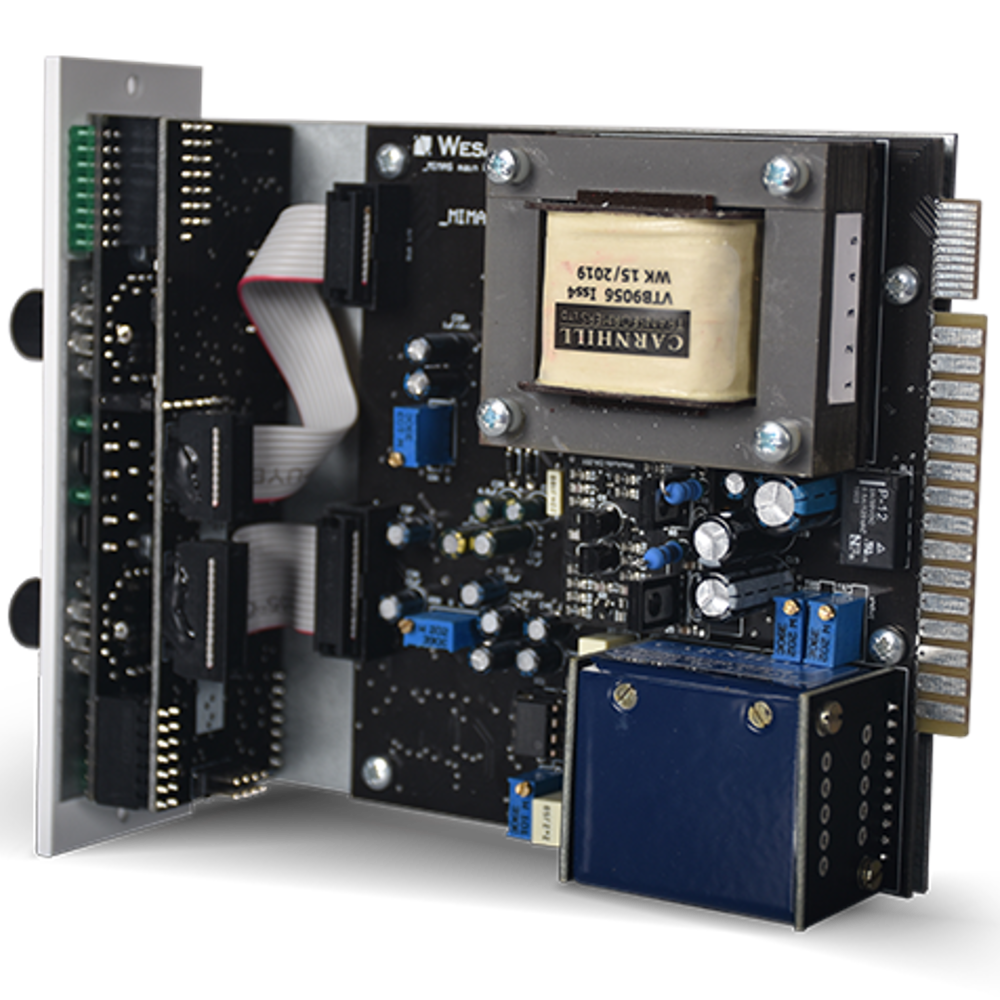

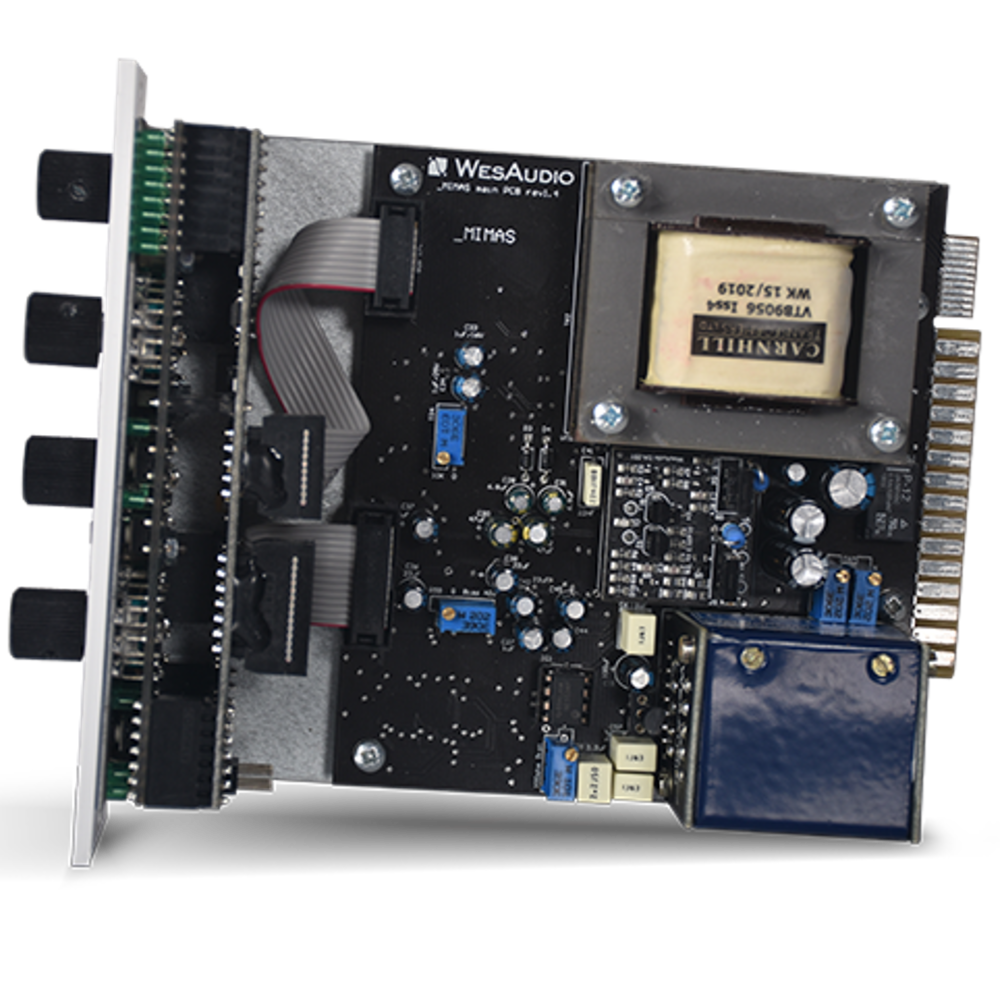

Interstage CARNHILL transformers
SATURATION MODE ONE KNOB to add color and character to your tracks without using compression
500 SERIES and ng500 SERIES COMPATIBLE
HARDWARE A/B
TOTAL RECALL AND PLUGIN CONTROL
ANALOG AUTOMATION
Four touch sensitive encoders
Fully digitally controlled analog circuit
+24dBu of headroom
Digital recall can be acheived by connecting unit directly through front panel mini USB socket, or using it inside _TITAN chassis,
Dedicated stereo plugin to manage two devices at the same time,
Digital sidechain – it is possible to send any track from your DAW as side chain signal to the compressor – It is enough to configure side chain feature in connected plugin,
4 touch sensitive encoders (allow to record automation of all parameters to DAW in real time),
True bypass,
Selectable VU(in/out)/GR meter (Switch can be accessed on the plugin),
Free software and firmware upgrades.

SPECIFICATIONS

Attack time	20us – 800us
Release time	50ms – 1100ms
ompression ratio	4:1; 8:1; 12:1; 20:1; all button mode True Bypass
SC High Pass filter	60,90,150Hz
Output impedance	600ohm
Frequency response	20Hz do 20kHz (+/- 1dB)
Signal to noise ratio SNR	>83dB
Power consumption	3W (100mA/+16V i 60mA/-16V)
